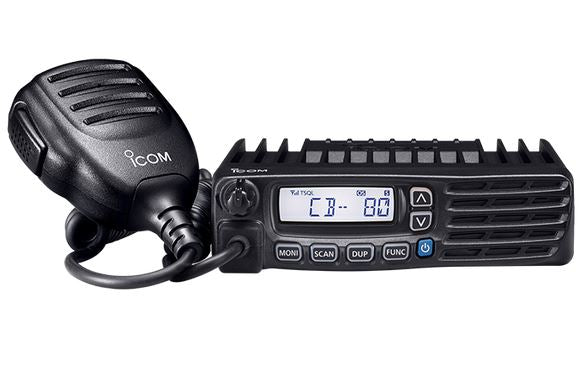

UHF CB Radio - Icom IC-410PRO - 450-520Mhz

***Order Yours Today***

UHF CB Radio - Icom IC-410PRO - 450-520Mhz

5 Watts (25 Watts on Licensed Frequencies)

Specifications:-
• Frequency coverage: CB 476.4250–477.4125 MHz
RX/Private 450.0000–520.0000 MHz
• Type of emission: CB 8K50F3E RX/Private 8K50F3E/16K0F3E
• Channel spacing: CB 12.5 kHz RX/Private 12.5/25 kHz
• Current drain (at 13.8 V): TX (at 5 W) approximately 4.0 A TX (at 25 W) approximately 7.0 A, Max. audio approximately 1200 mA
• Operating temperature range: –30°C to +60°C
• Power supply requirement: 13.8 V DC nominal (Negative ground)
• Frequency stability: ±2.5 ppm (–30°C to + 60°C)
• Antenna impedance: 50 Ω nominal
• Dimensions: W 150 × H 40 × D 117.5 mm (Projections not included)
• Weight: approximately 800 g
Transmitter:-
• Output power: CB 5 W/1 W, Private 25 W/5 W/1 W
• Modulation system: Variable reactance frequency modulation
• Max. frequency deviation: Narrow ±2.5 kHz, Wide ±5.0 kHz
• Spurious emissions: –30 dBm (maximum)
Receiver
• Sensitivity (12 dB SINAD): 0.25 μV (typical)
• Squelch sensitivity: 0.25 μV (typical)
• Intermodulation rejection ratio: 75 dB (typical)
• Spurious response rejection ratio: 70 dB (minimum)
• Audio output power: 4.0 W (typical) at 5% distortion into a 4 Ω load
