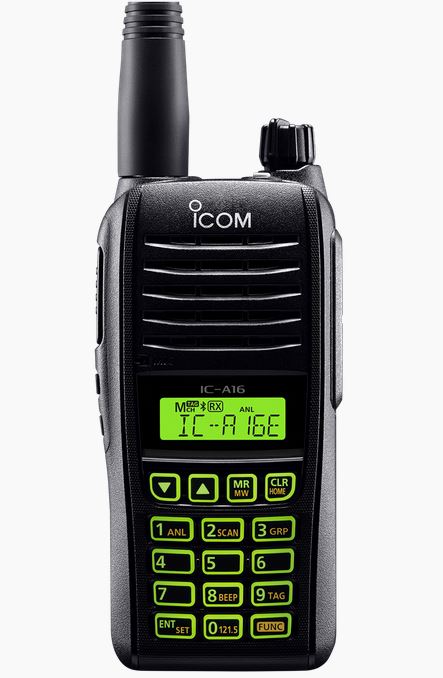

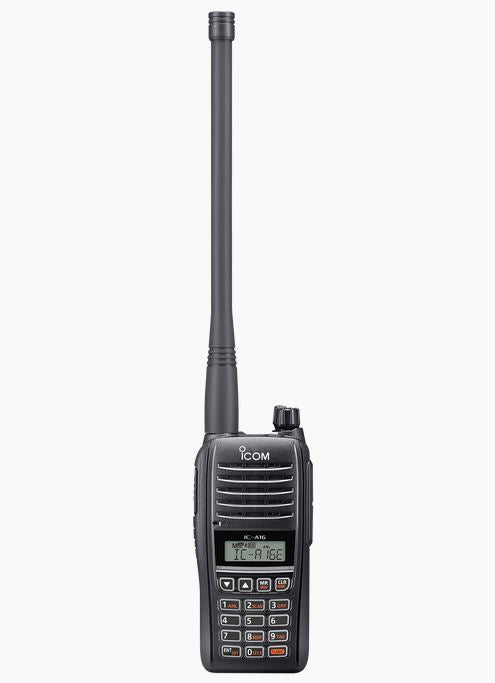

Icom IC-A16E-NBT - VHF AIR BAND Handheld Portable Radio
Icom IC-A16E-NBT - VHF AIR BAND Handheld Portable Radio
Couldn't load pickup availability
Icom IC-A16E-NBT - VHF AIR BAND Handheld Portable Radio
This Model Comes With "No Blue Tooth", Blue tooth is a great feature if using headsets
Simple to use radio
General
| Frequency range | TX/RX : 118.000–136.992 MHz | ||
|---|---|---|---|
| Number of memory channels | 200 channels | ||
| Channel spacing | 8.33 kHz*/25 kHz (* May differ depending on the country.) | ||
| Type of emission | 6K80A3E, 5K00A3E | ||
| Power supply requirement | 7.2 V DC | ||
| Current drain (approximate) | TX High | 1.8 A | |
| RX | Stand-by | 65 mA typical | |
| Max. audio | 650 mA | ||
| Antenna impedance | 50 Ω (BNC type antenna connector) | ||
| Operating temperature range | –20°C to +55°C | ||
| Dimensions (W×H×D) (Projections not included) |
52.2 × 111.8 × 34.1 mm (with BP-280) | ||
| Weight (approximate) | 257 g (with BP-280) | ||
Transmitter
| Output power (at 7.2 V DC) | 6.0 W (PEP), 1.8 W (carrier) | |
|---|---|---|
| Audio harmonic distortion | Less than 10% (at 85% + 3 dB modulation) | |
| Harmonics spurious emissions | Less than –36 dBm (Except for operating frequency ±1 MHz.) |
|
| Frequency stability | ±1 ppm | |
Receiver
| Intermediate frequencies |
46.35 MHz (1st), 450 kHz (2nd) |
|
|---|---|---|
| Sensitivity | Less than 0 dBμ (at 12 dB SINAD with CCITT) |
|
| Squelch sensitivity (Threshold) | Less than 0 dBμ | |
| Spurious response | More than 70 dB | |
| Hum and noise | More than 40 dB (at 90% modulation) | |
| Audio output power | INT SP | 1500 mW typical |
| EXT SP | More than 350 mW (AM 8 Ω 60% modulation at 10% distortion) |
|
| External speaker connector | 3 conductor 3.5 (d) mm | |
Measurements made in accordance with EN300 676-2.
as in photos:
Actual product can look slightly different or different colours to photos and pictures but will still be the same arrangement
Price is for 1 x kit Thank Includes
1 x Handheld Radio "With No Blue Tooth"
1 x BC-213 rapid Charger
1 x BC-242 AC adapter
1 x FA-B02AR antenna
1 x MB-133 belt clip
1 x Hand strap
1 x BP-280 battery pack
This product is approx 1-2 week for stock to arrive
Please "Click Here" for PDF Brochure
Please "Click Here" For PDF User Manual
A link to ICOM website for more information please click here
