Coax Antenna Switch - 3 Way N-Type Female - Antenna Switch

3-Way Antenna Coax Switch 50Ohm

HF/VHF/UHF/Mobile phone/Data

DC to 1.5Ghz

3-Position Antenna Switch – N-Type (4 x Female Ports)

Heavy-duty 3-position antenna switch featuring five N-Type female connectors arranged around the unit for easy installation and cable management. Designed for low-loss performance and excellent isolation across a wide frequency range.

Performance Specifications:

• DC–500 MHz: Approx 0.1 dB insertion loss, -60 dB isolation, VSWR 1.15
• 500–900 MHz: Approx 0.2 dB insertion loss, -55 dB isolation, VSWR 1.2
• 900 MHz–1.5 GHz: Approx 0.3 dB insertion loss, -50 dB isolation, VSWR 1.25

Maximum RF Power Handling:

• DC–30 MHz: 1500W
• 30–200 MHz: 1000W
• 200–500 MHz: 500W
• 500–900 MHz: 250W
• 900 MHz–1.5 GHz: 150W

Built for reliability and consistent RF performance, this switch is ideal for base stations, test setups, or multi-antenna installations where minimal signal loss and strong isolation are critical.

Please Note:- with ALL coax switches do not transmit when changing switch or you will damage equipment

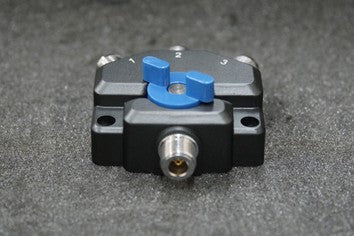

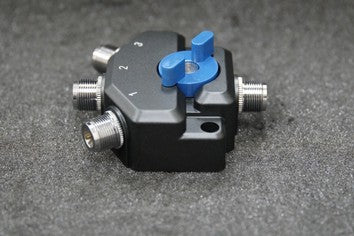

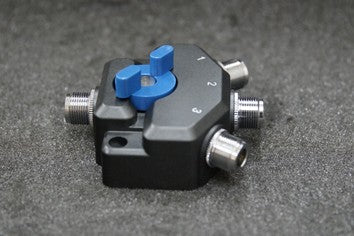

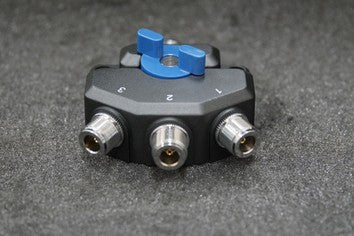

as in photos:

Actual product can look slightly different to photos and pictures but will still be the same adapter arrangement

Price is for 1 x Item
