Base Station CB Antenna - 27Mhz CB Antenna 6.3Mtr Long (Ally & Stainless Construction)

27Mhz Base Station Antenna CB (26-28Mhz)

6.3 Meters in Alloy

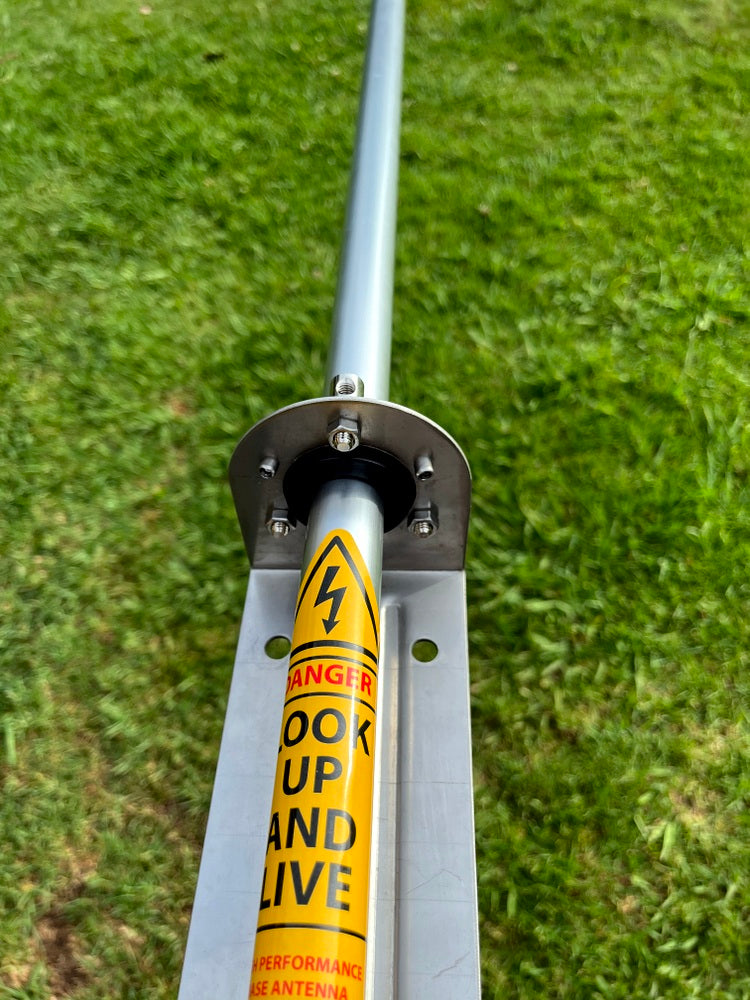

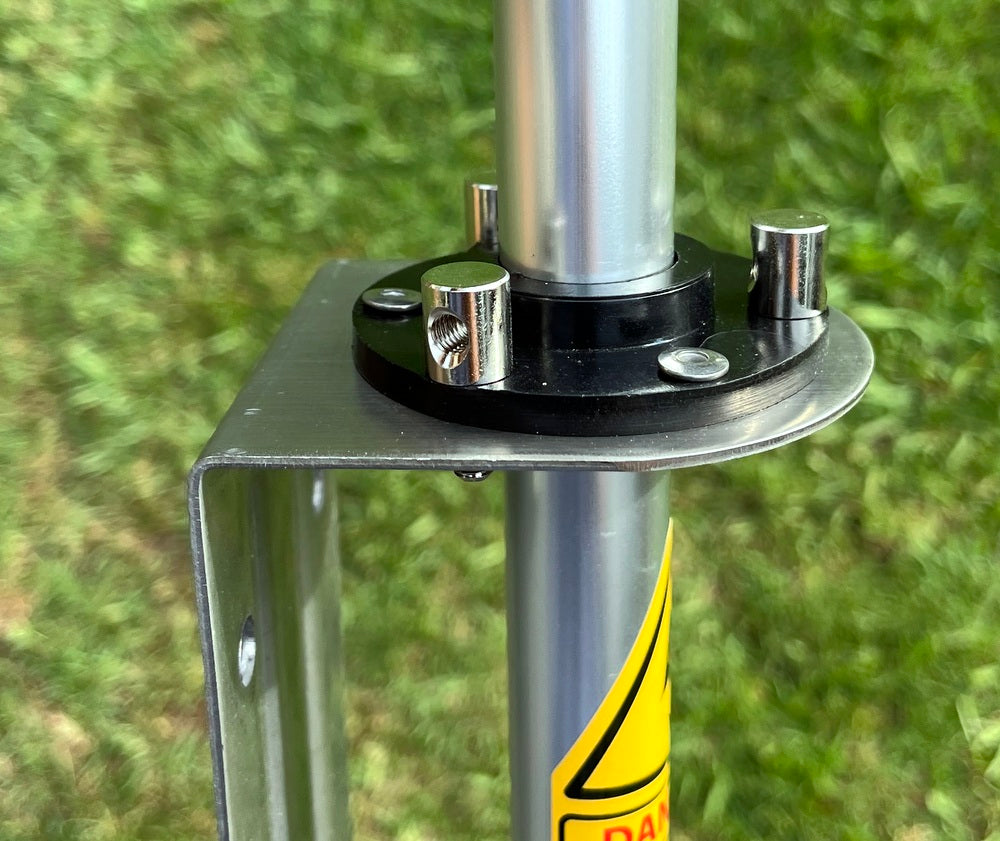

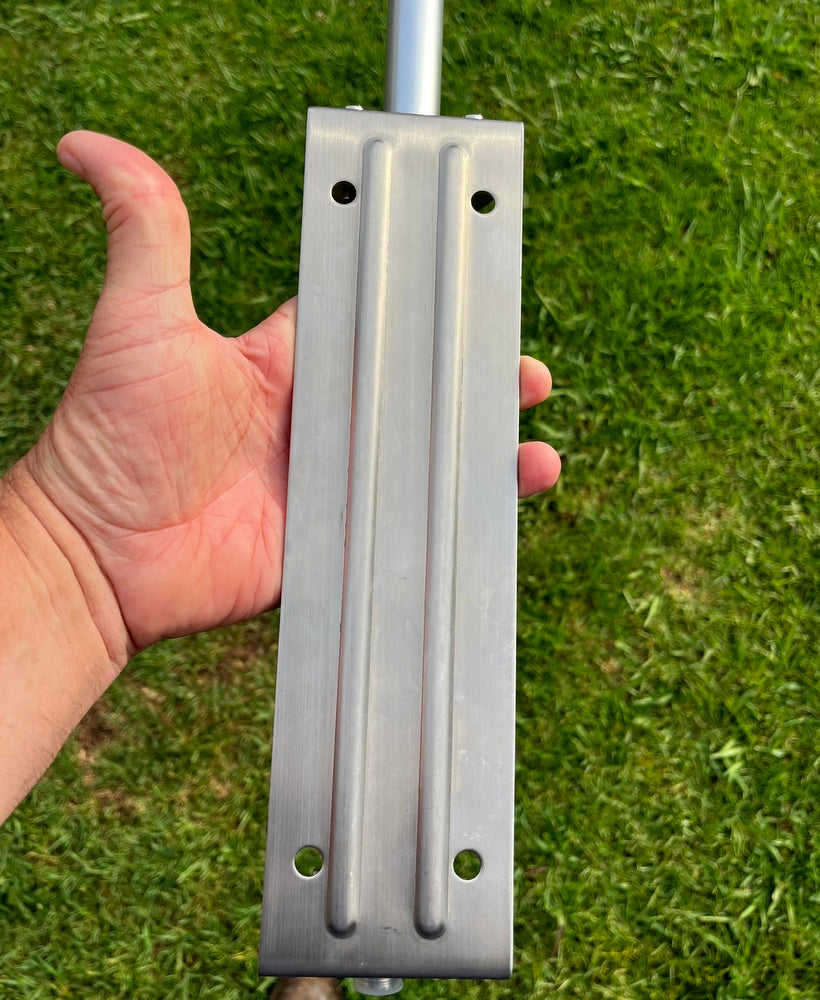

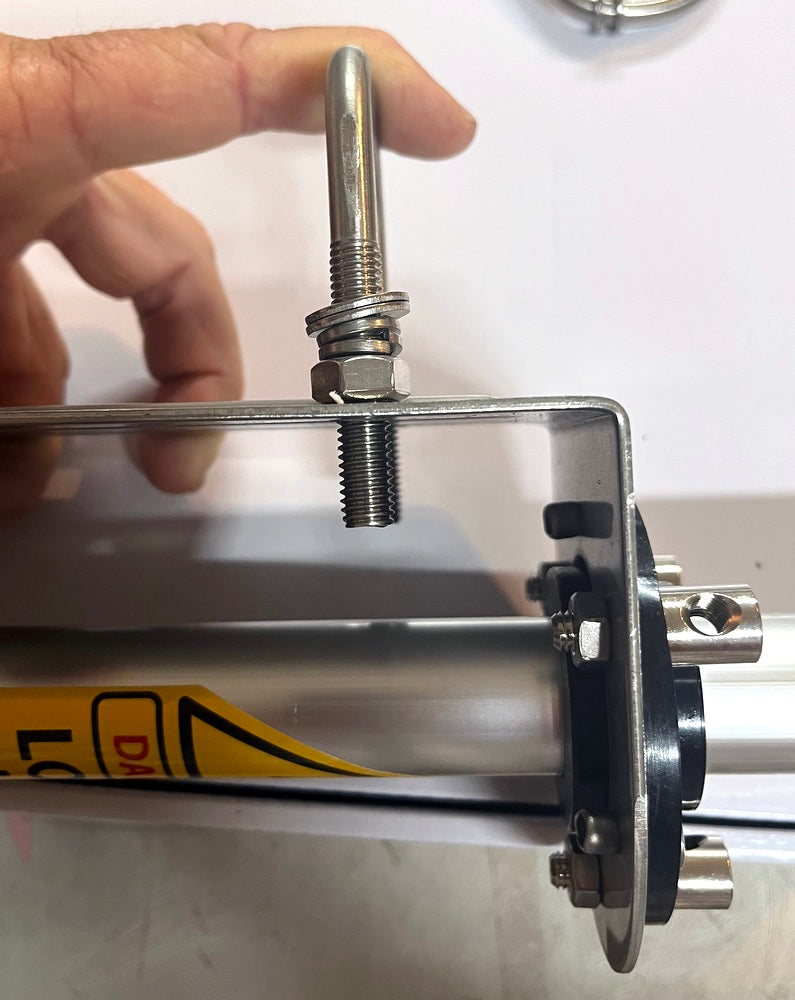

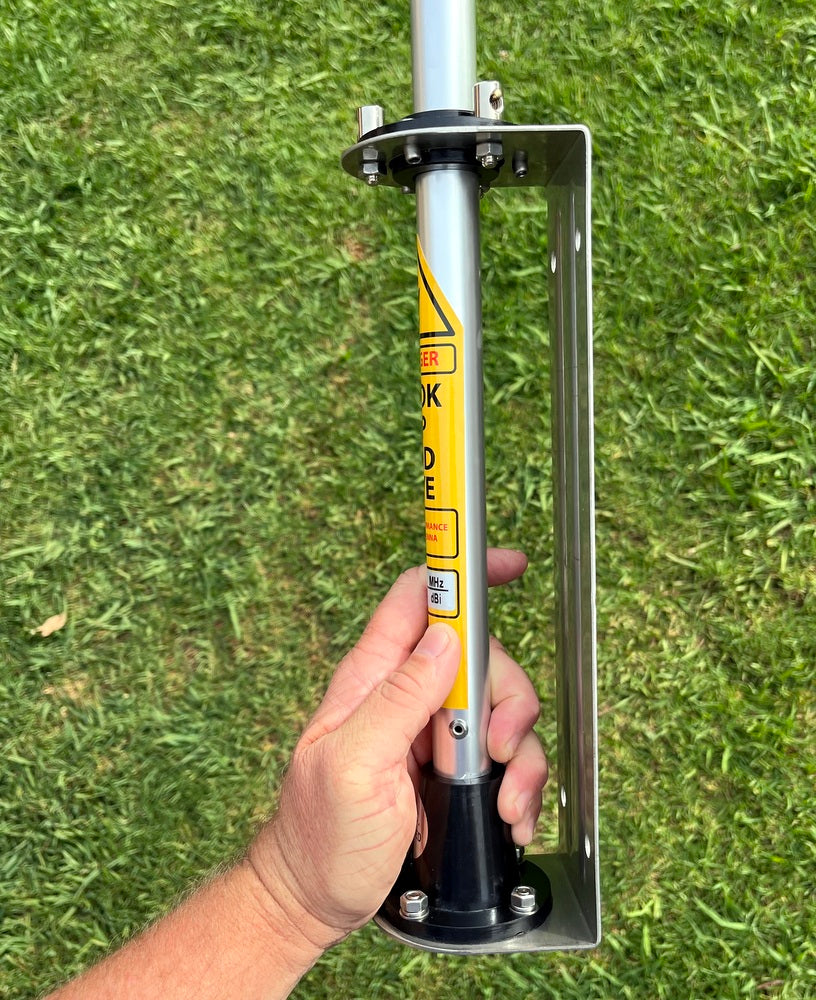

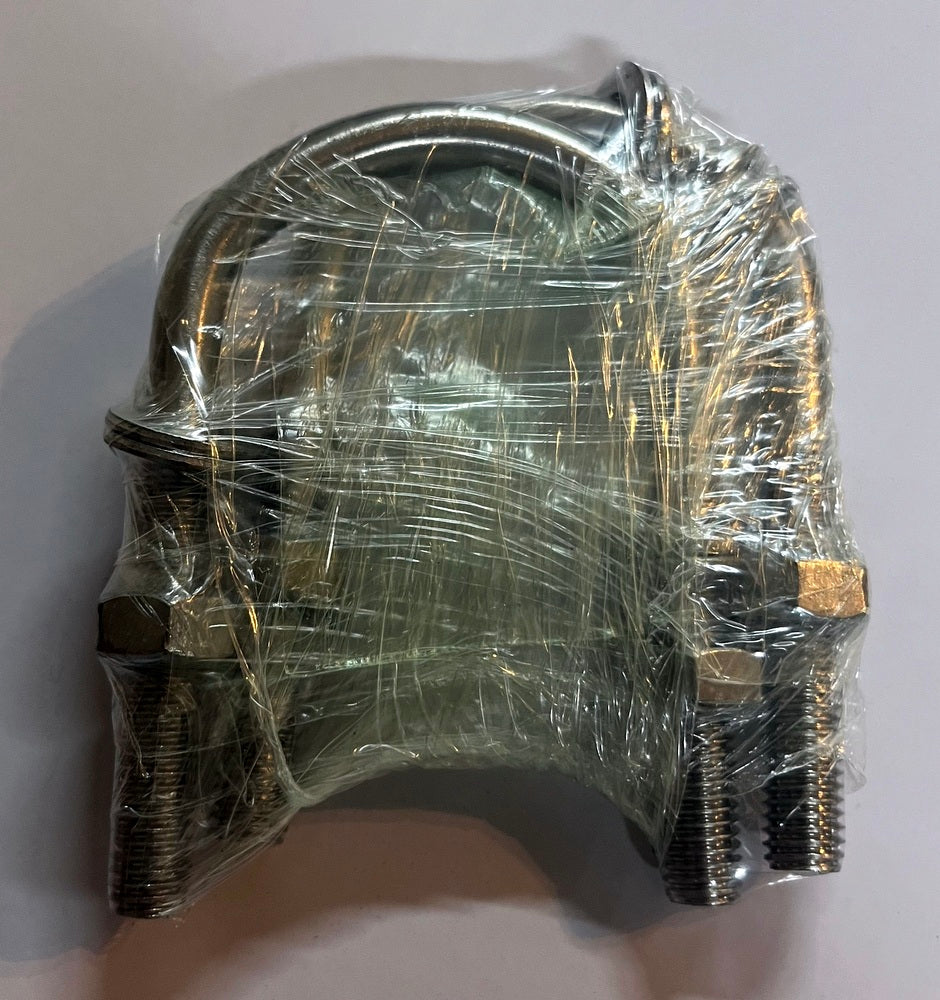

Stainless Steel Mounting Support, Radials and Stainless steel U-bolts we have had this manufactured to better suit coastal areas

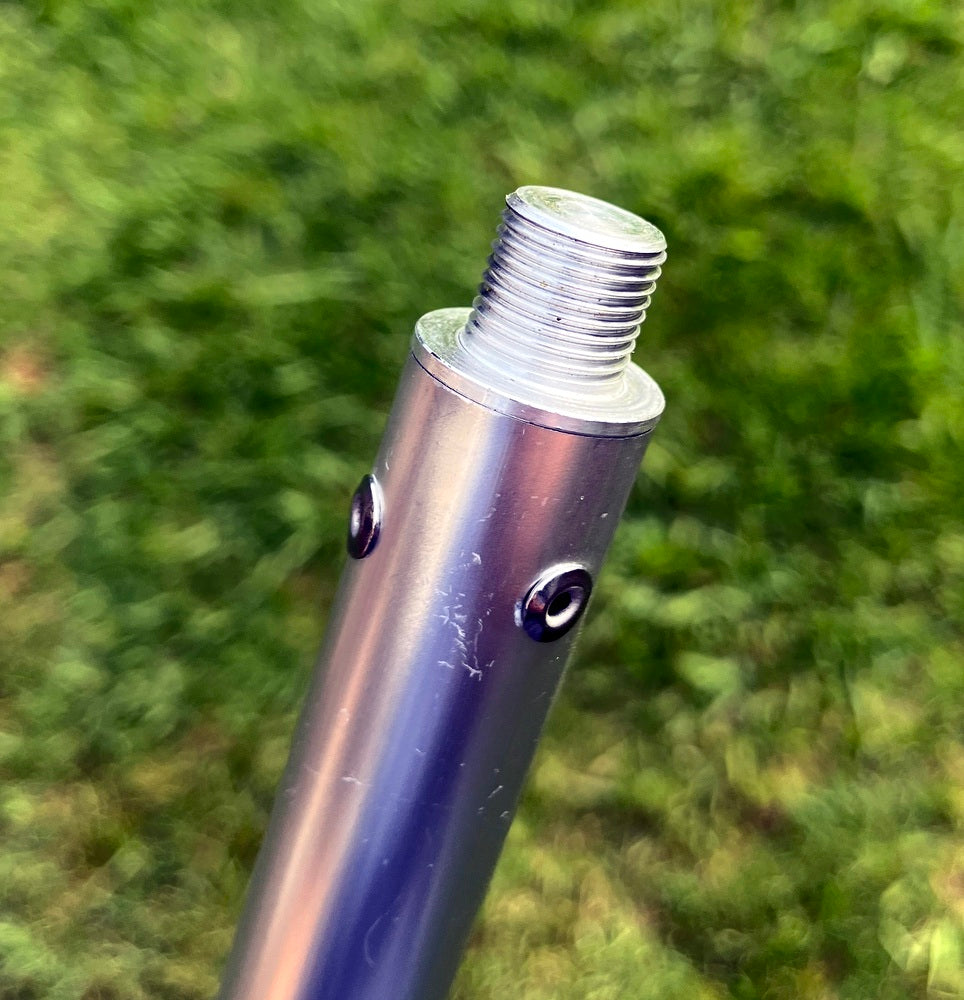

The antenna comes in 6 x Sections for easy setup and transport and can fit in any car

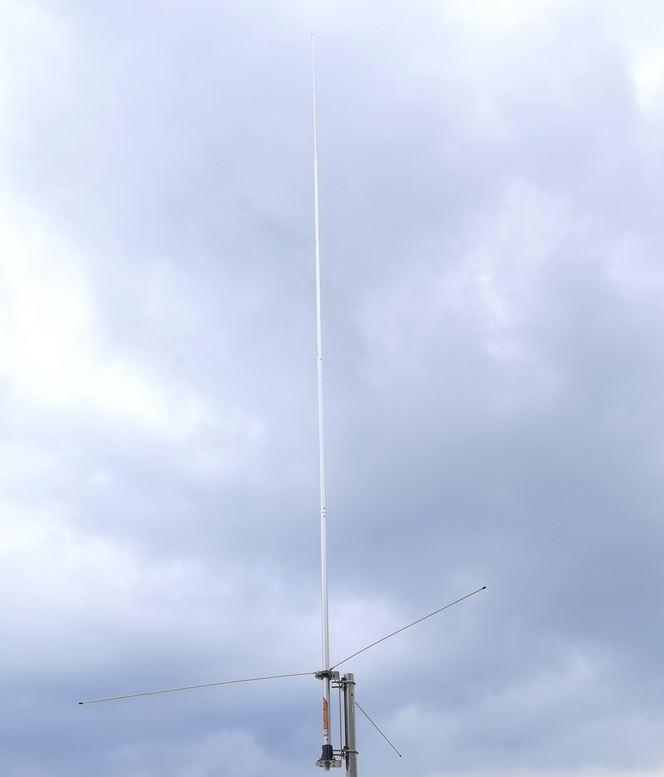

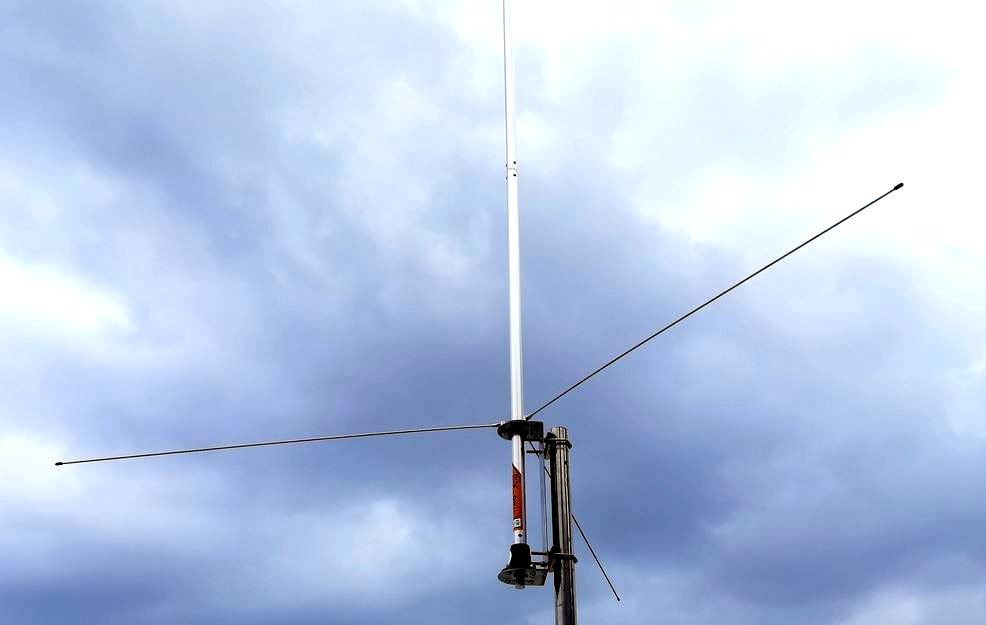

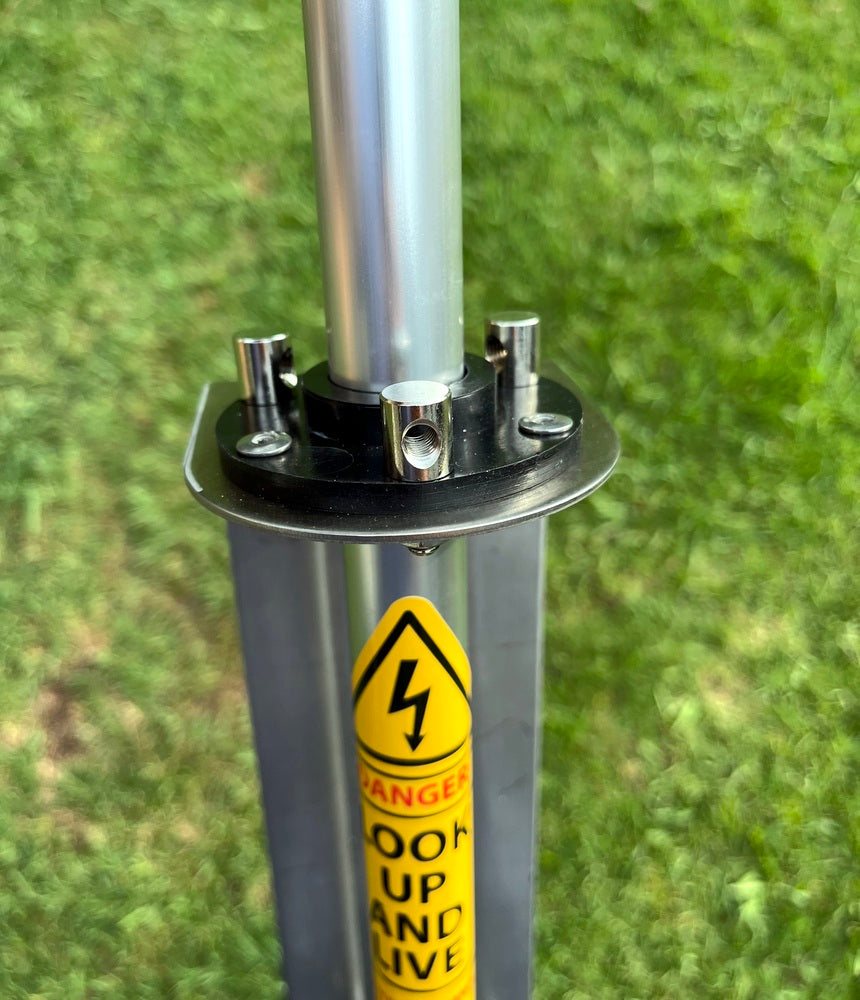

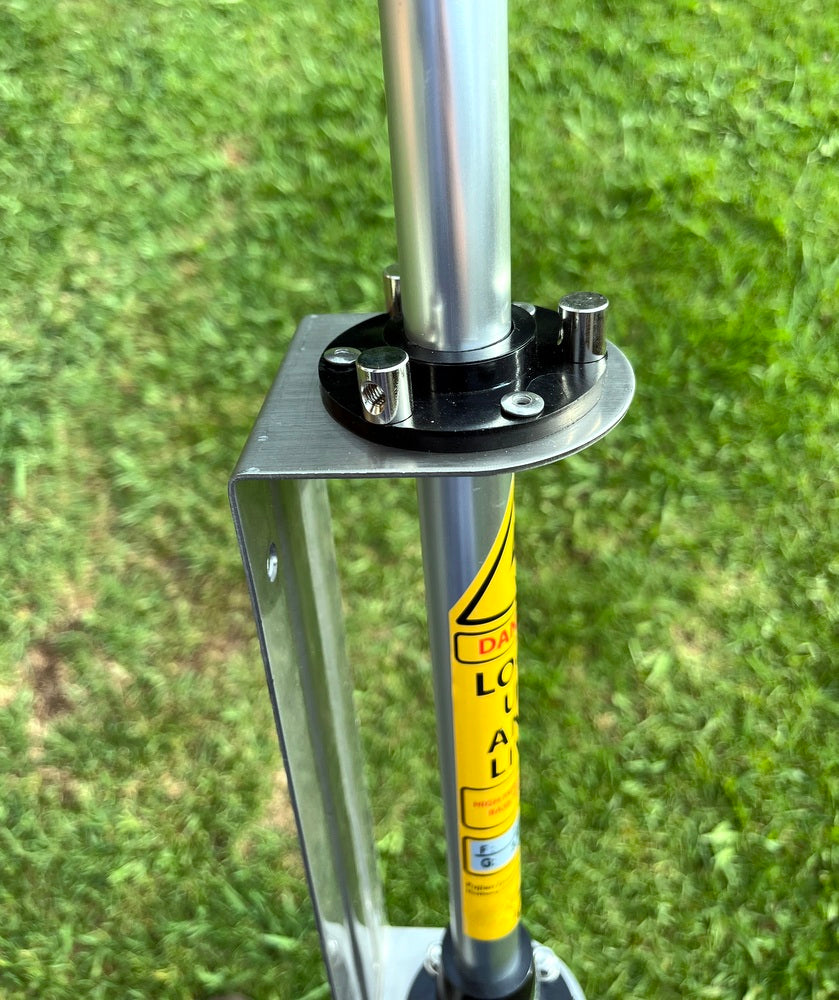

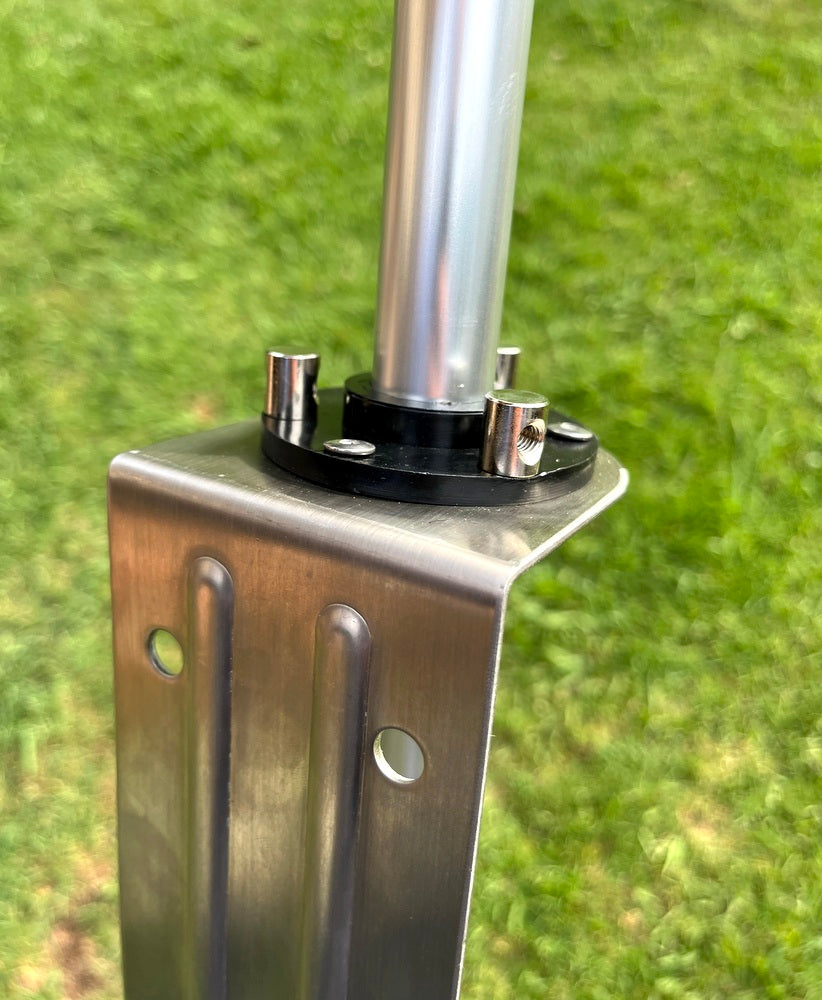

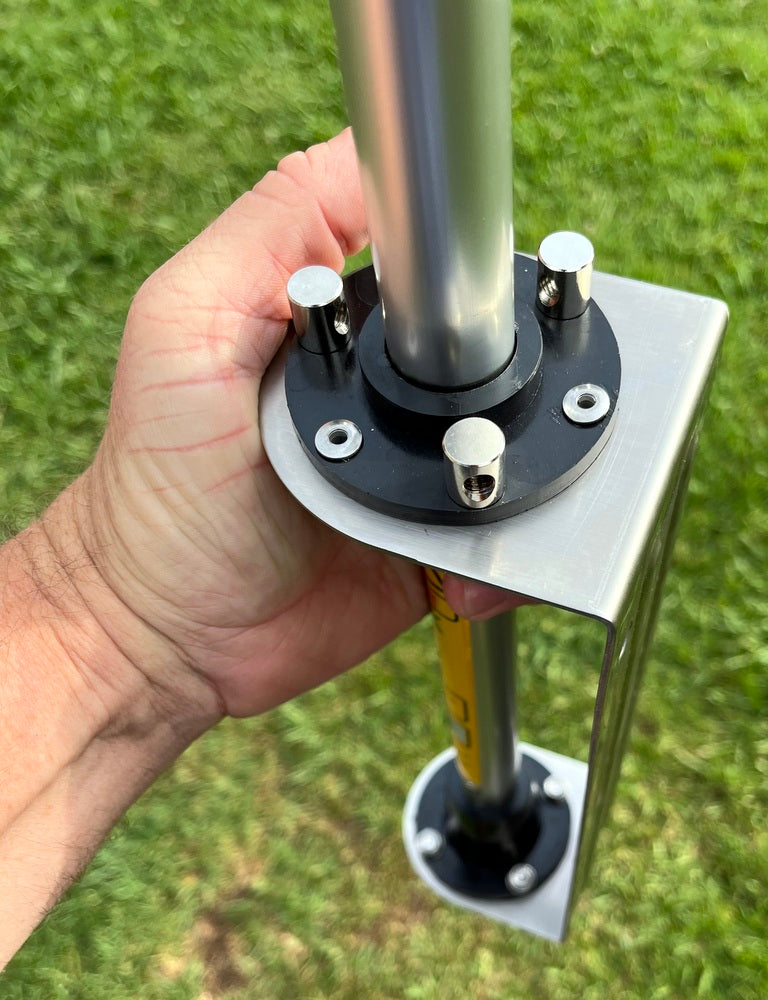

Comes with mounting brackets and 3 x radial ground plan kit! Ready To Install to your mast/pole

Shipping Notice

Please note that this product is shipped via courier due to its size and/or weight.
A physical delivery address, email, and phone number are required for dispatch.

• This item cannot be combined with other products under the same shipping cost.

• If you live in a remote area or fall within the small percentage (approximately 5%) of locations across Australia that our couriers are unable to service, we will contact you directly.

• In cases where delivery cannot be arranged, a full refund will be issued.

Thank you for your understanding and cooperation.

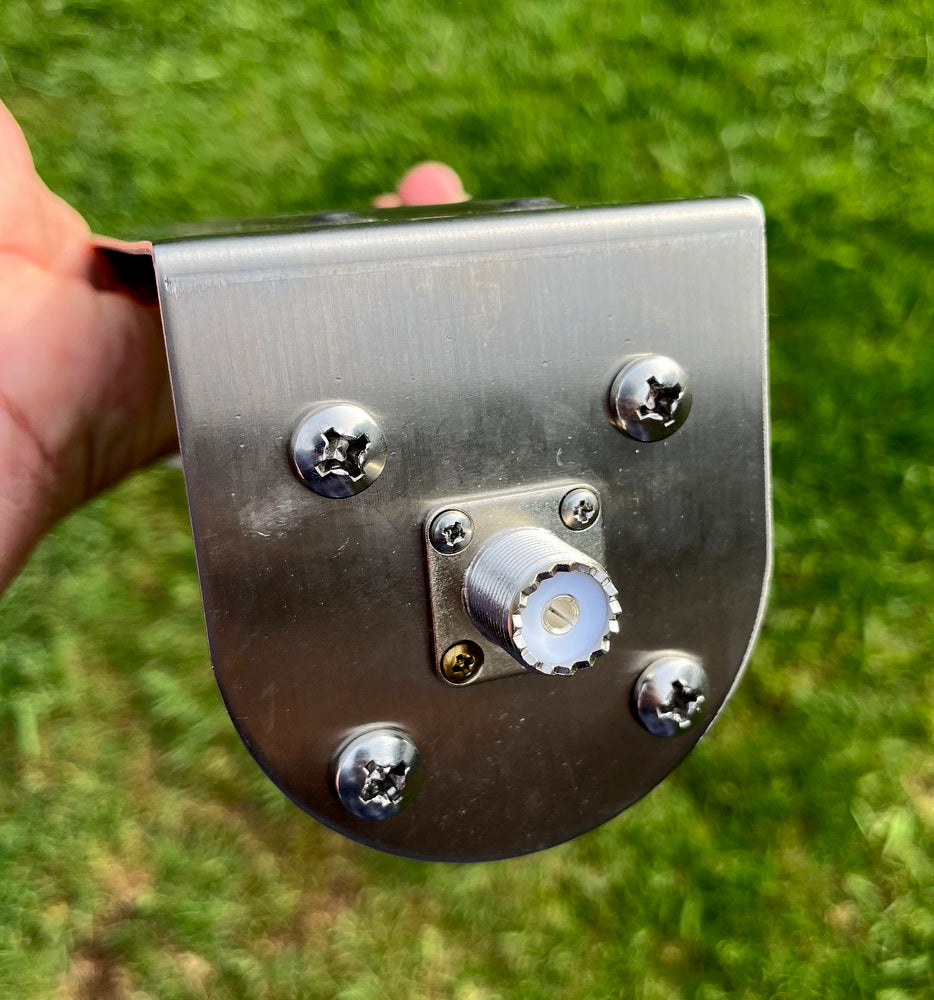

Fitted with a standard SO239 Standard 27Mhz Marine and 27Mhz CB Connector (Female PL259 Type Connector as in the photos)

as in photos:

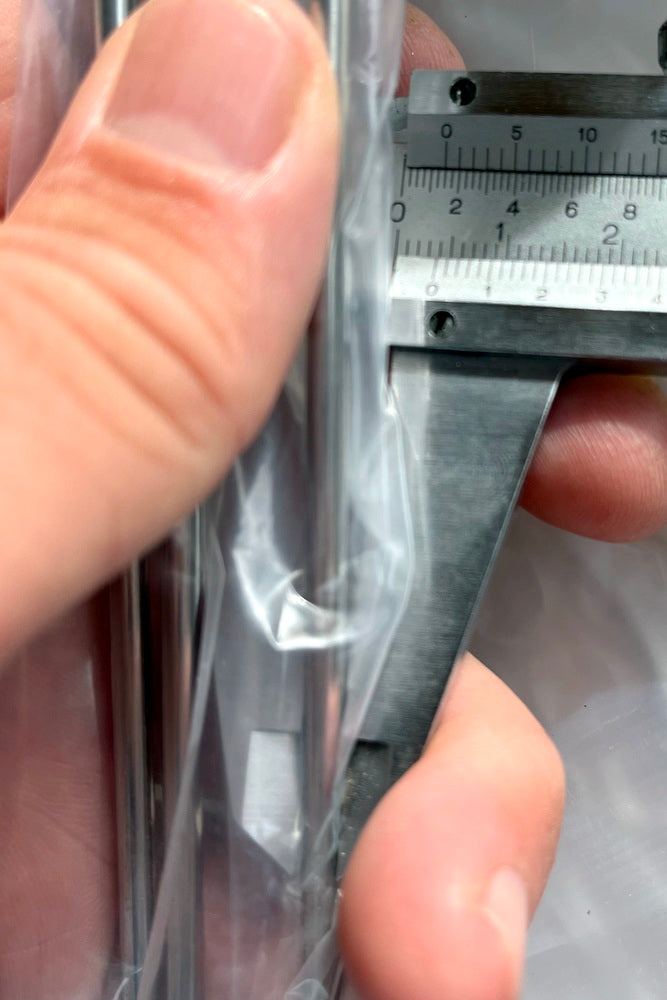

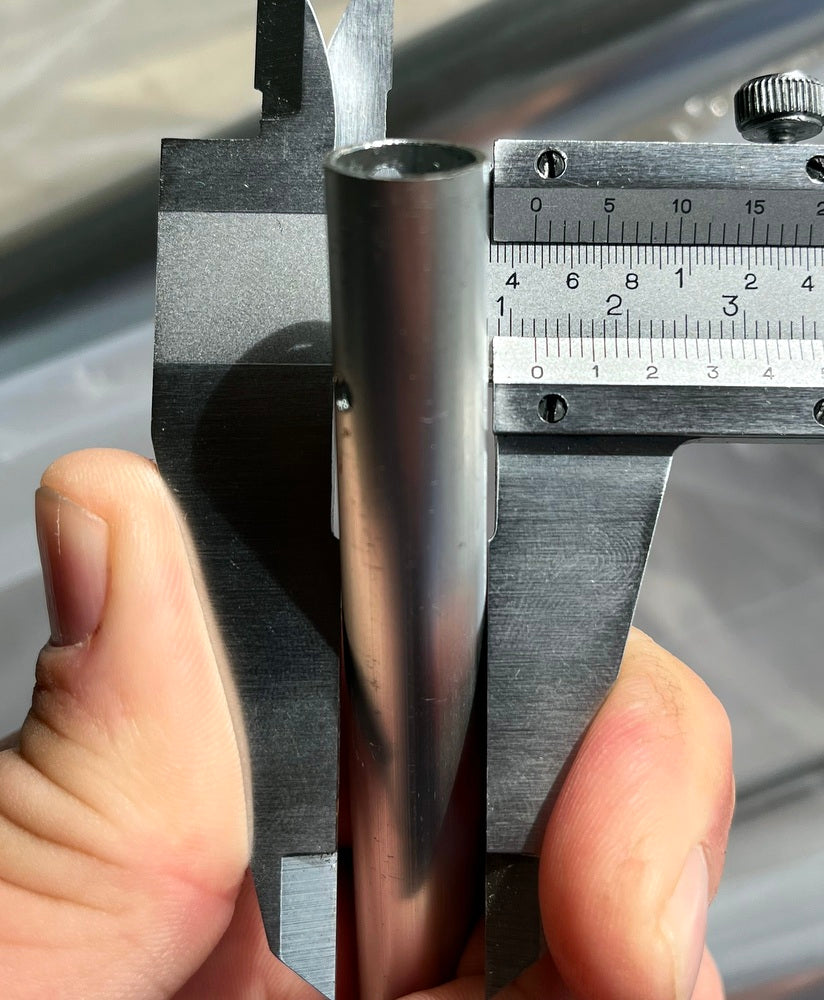

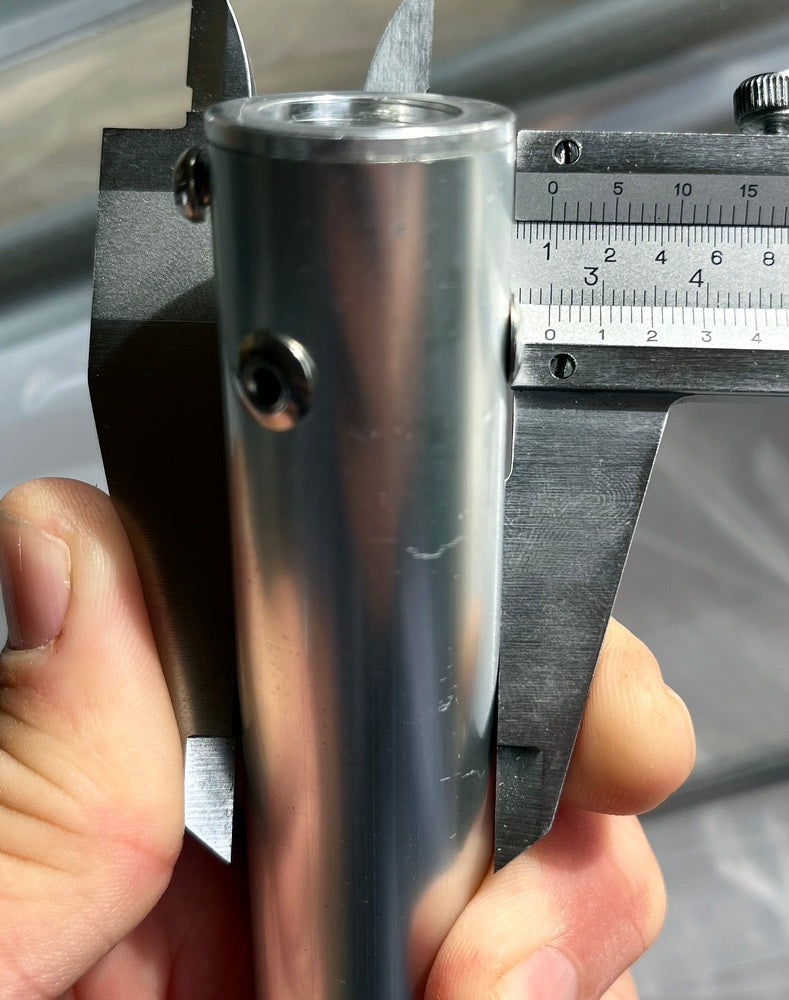

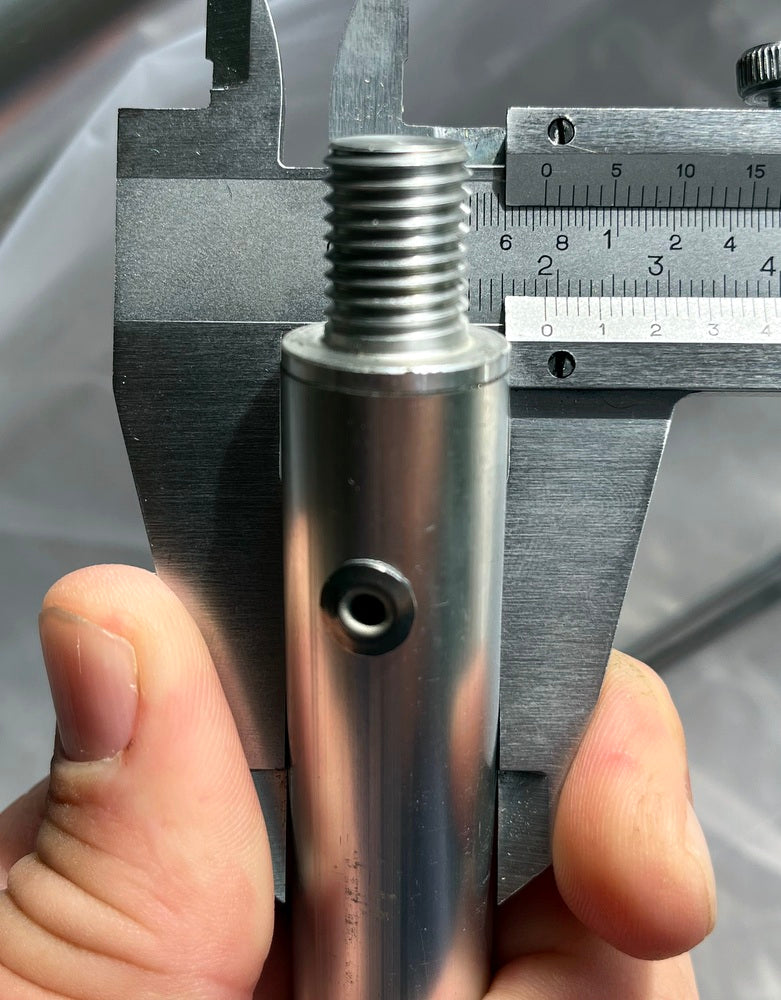

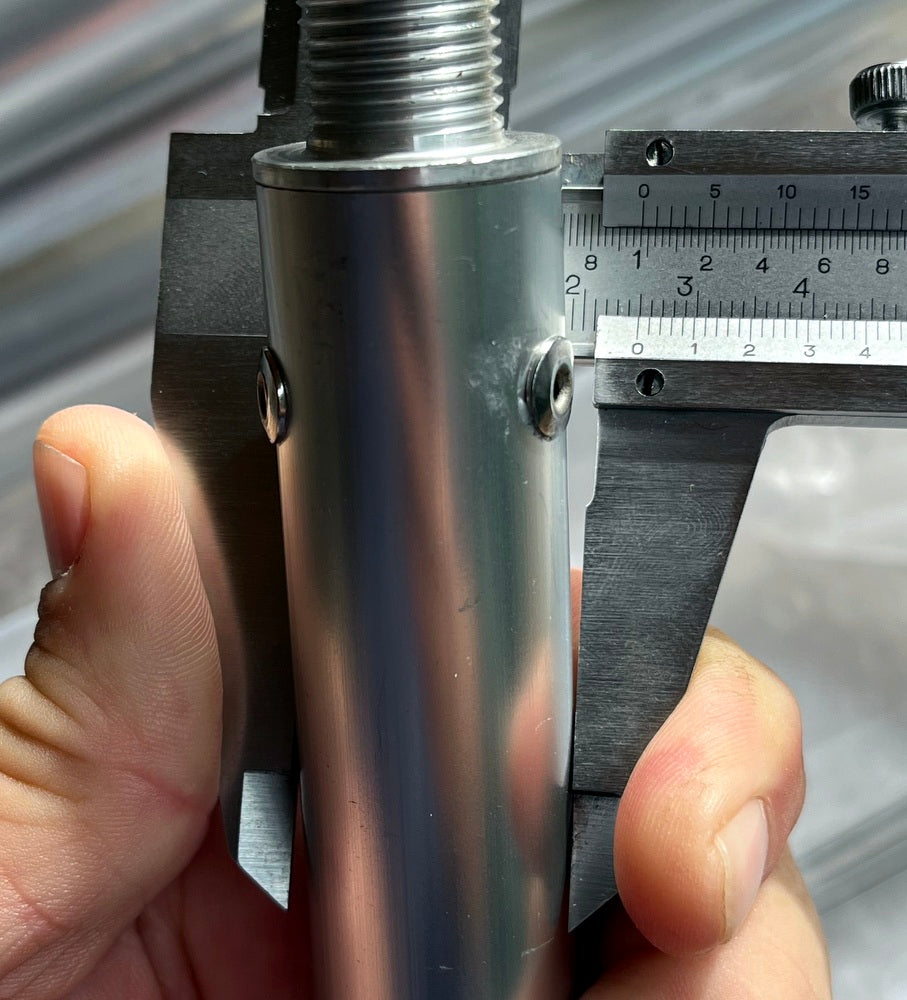

Sizes Are Approximate -

• Ground Plane Kit each element is 870mm long, 4mm Stainless Whips

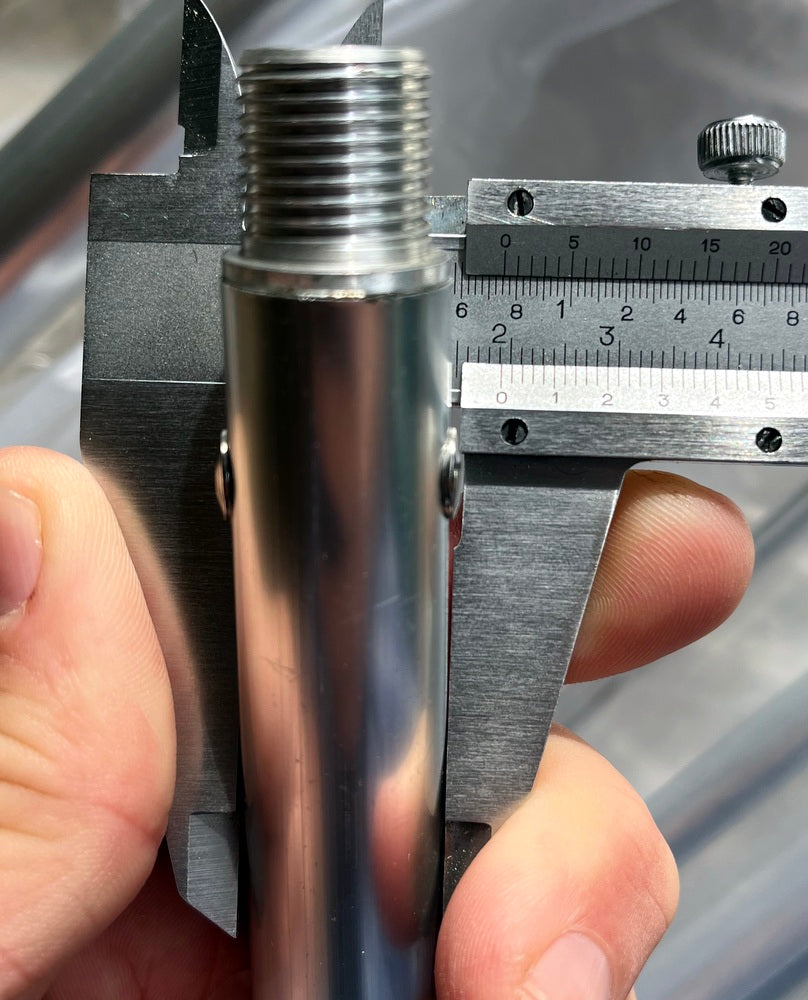

• Base Section 1140mm Long, Including S0239 Connector - 25mm diameter
• 2nd Section 1055mm Long 25mm diameter
• 3rd Section 1045mm Long, 19mm diameter
• 4th Section 1045mm Long, 19mm diameter

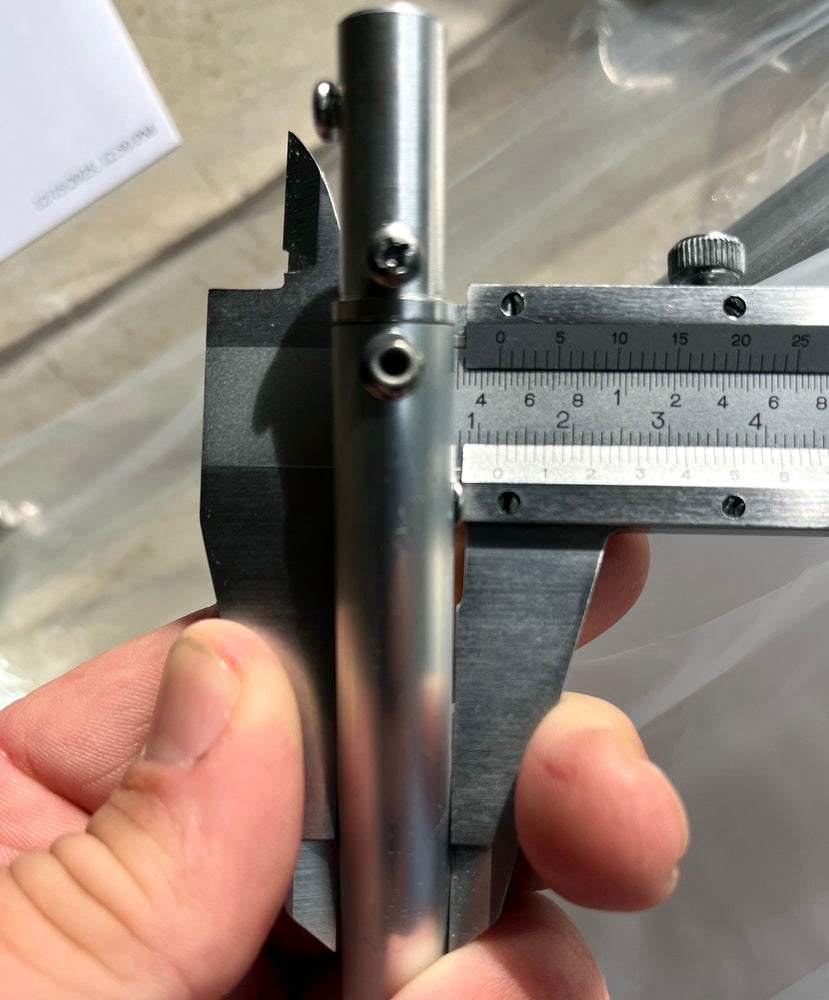

• 5th Section 995mm Long, 12mm diameter
• 6th Section 1010mm Long, - 12mm diameter
• = 6.29 Metres

Actual product can look slightly different or different colours to photos and pictures but will still be the same arrangement

Max 150Watts - 3.5dBi

Price is for 1 x Item

Package size:- 120cm x 20 x 20

Package weight:- 4kg

Product weight:- 3kg
