RFI VHF Meander Mega BASE Station ANTENNA, THE BIGGEST AND BEST IN AUSTRALIA!!!

These are a Massive Antenna. This is built for heavy duty use, this is not an antenna to be mounted on anything smaller then 50mm x 5mm pipe, this is not a toy

8.15dBi

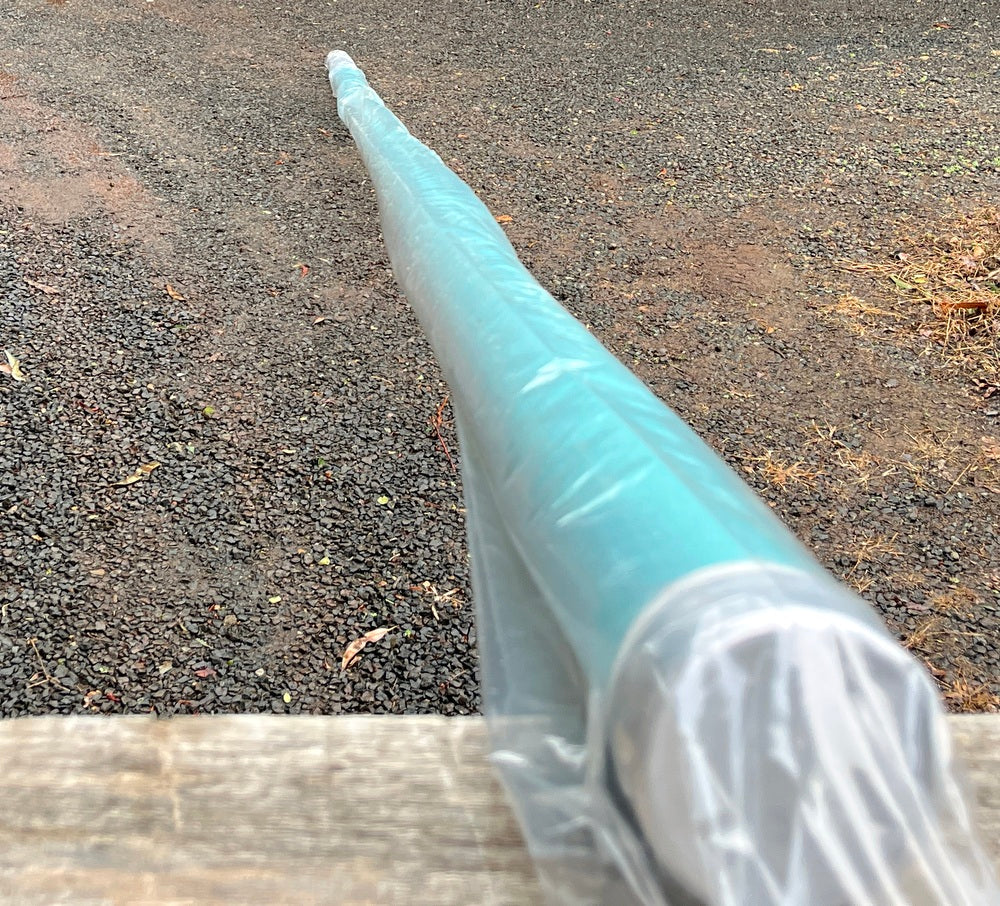

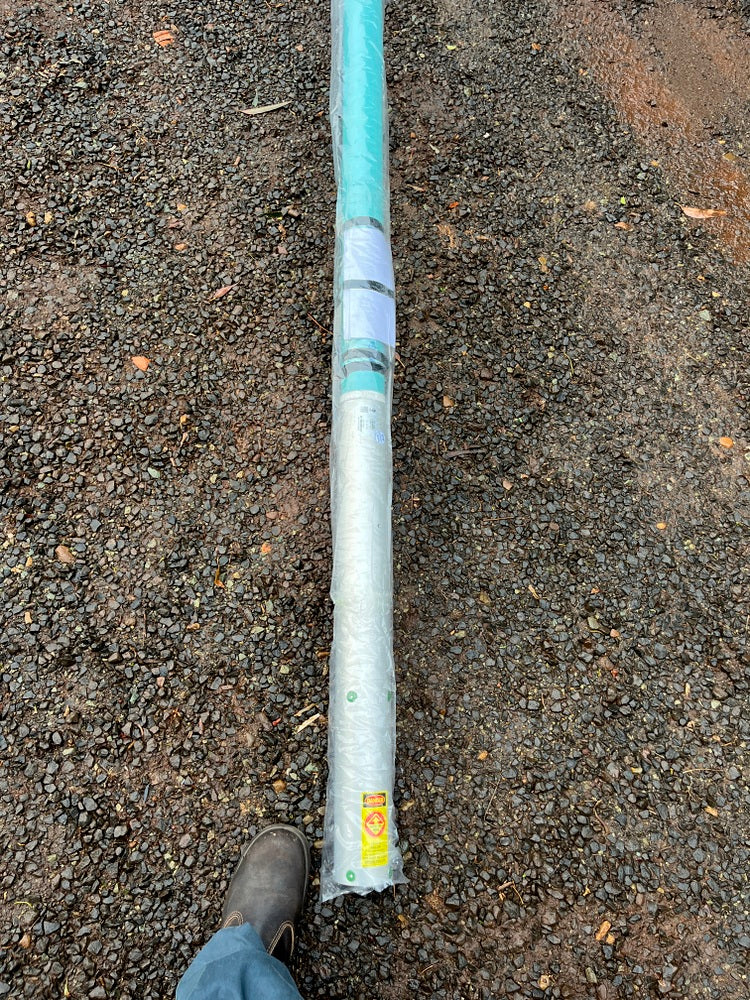

6.5 Meters Long

Antenna weight 21Kg

90mm round mounting base area base

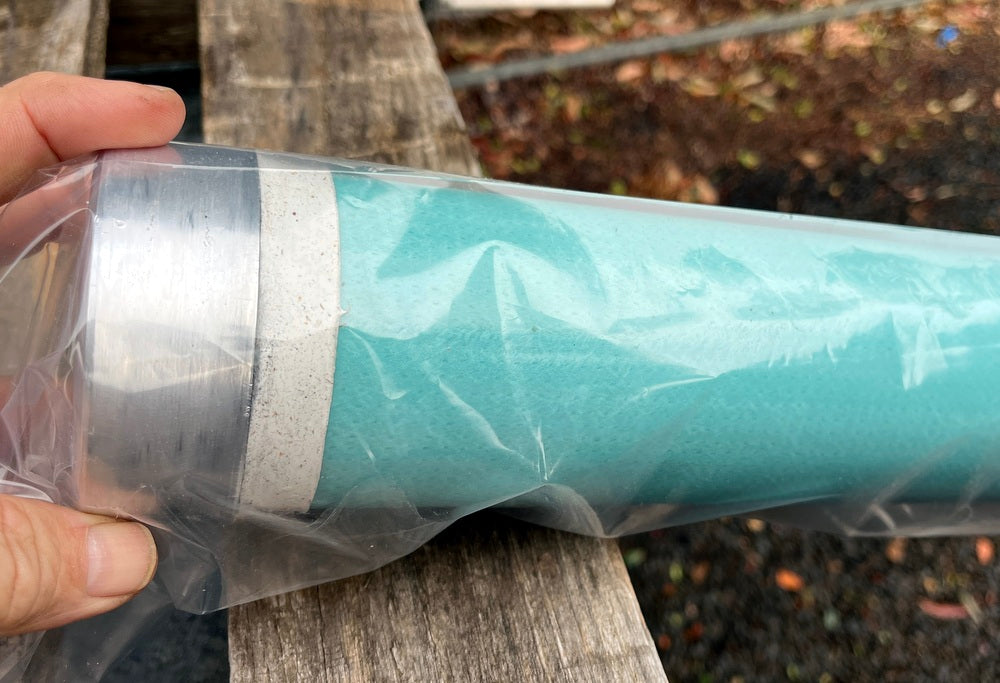

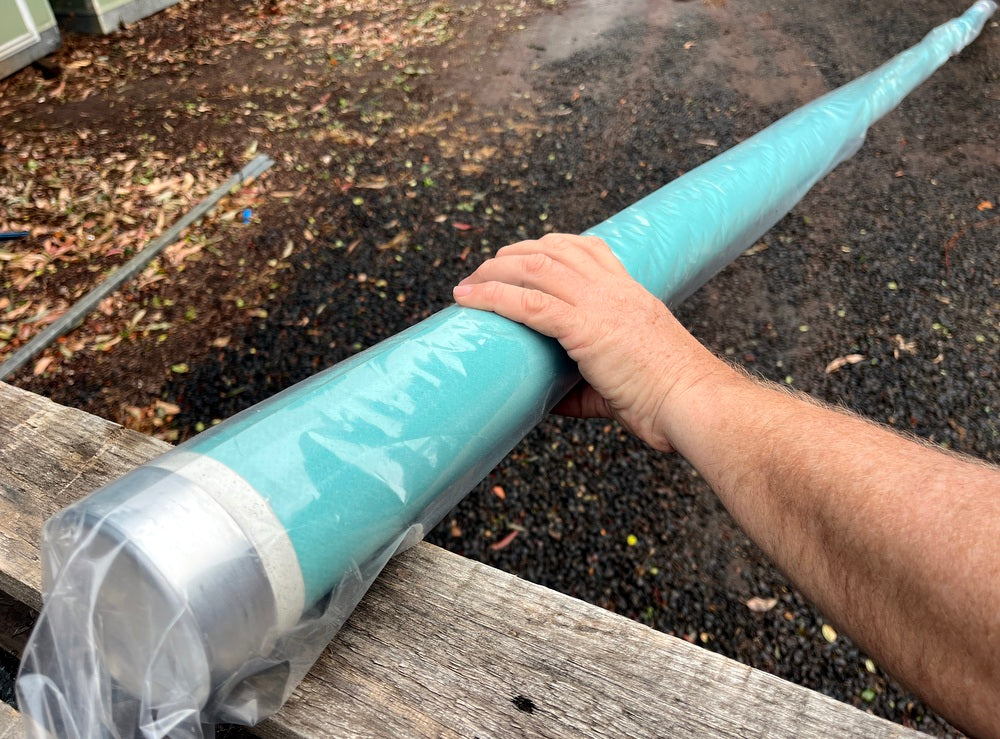

Composite fiberglass sky blue radome, with aluminum mounting tube

Base Antenna, VHF Marine, Amateur Radio, 2way Radio Antenna

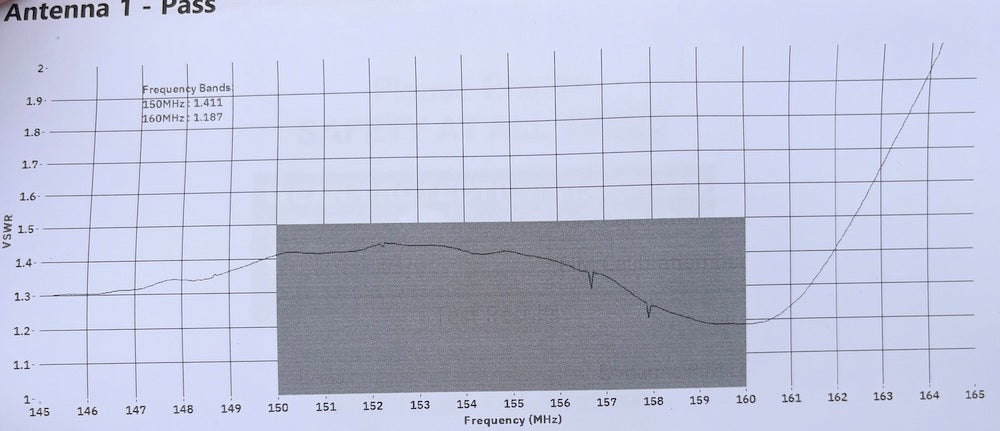

150-160MHz  BASE ANTENNA - look at the charts this antenna will cover the Amateur/Ham Radio 2Mtr Band 144Mhz

COL54-160-P Features: - Excellent bandwidth providing full band coverage - Internally DC grounded for lightning protection and the reduction of precipitation noise - Patented Meander™ PCB design for optimum RF pattern stability - Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum network performance - Excellent Peak Instantaneous Power(PIP) rating (25kW) The patented Meander™ collinear element design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth

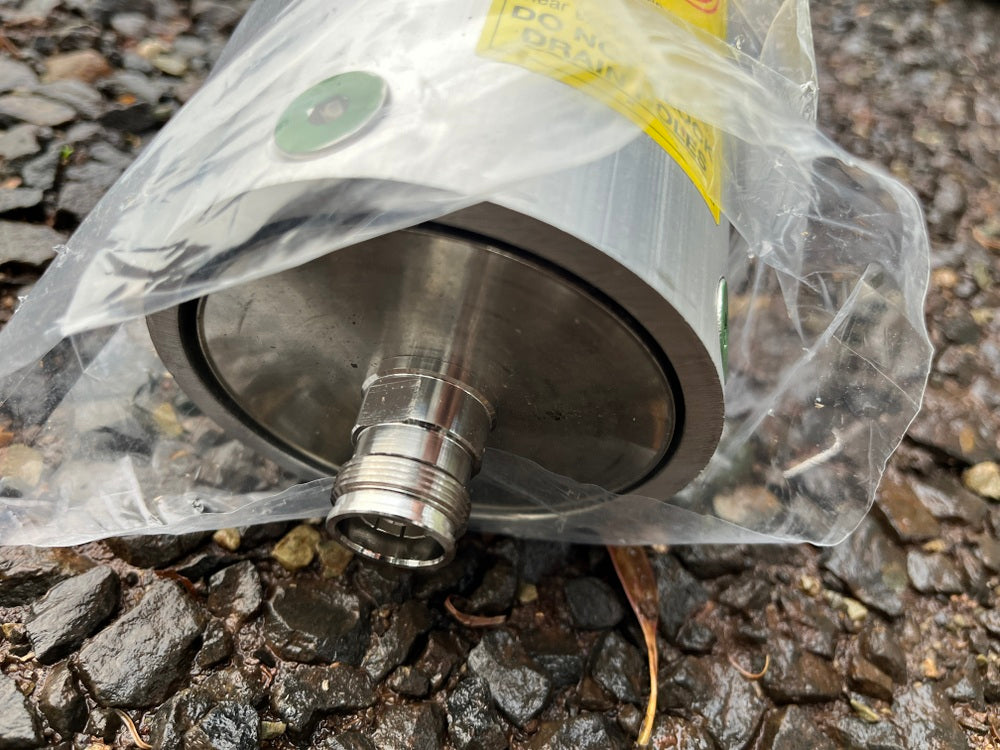

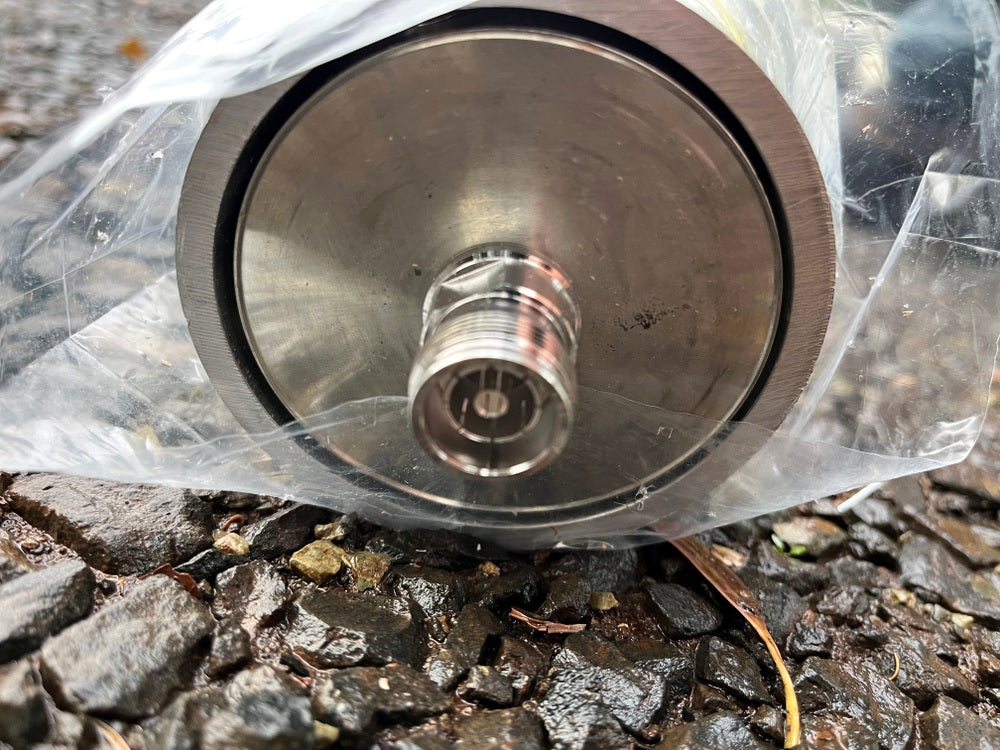

Fitted with 1 x 4.2-10 Type Female Connector. we sell adapters to make an "N Type Female if you need them (A43-102)

If not in stock these antennas are approx 4-6 weeks build time from ordering

Please "Click Here" for PDF Brochure

Please note crate and packaging colours etc... may be change

Price is for 1 x Item, PICK UP ONLY DUE TO SIZE

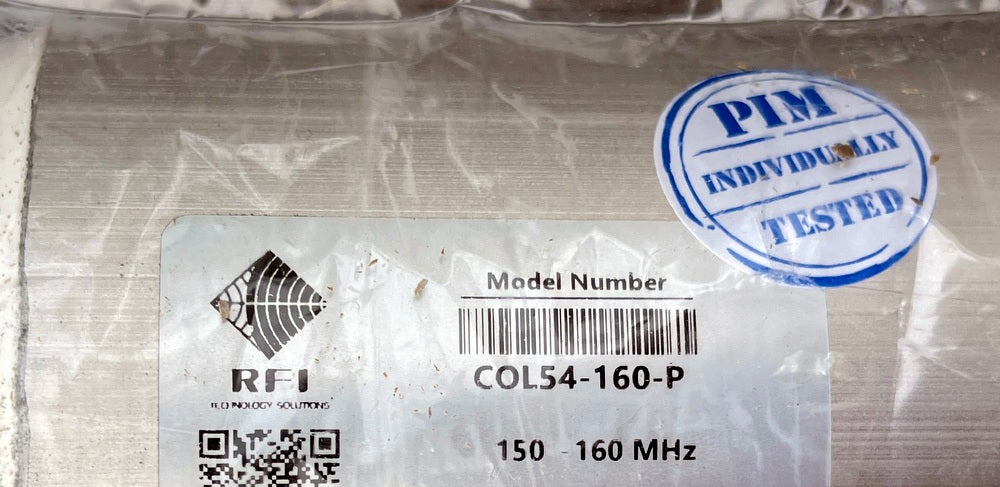

COL54-160-P RFI Collinear Antenna
