AM/FM/USB/LSB Anytone 5555N-II Mobile HF CB/Amateur Radio 24-30Mhz*
AM/FM/USB/LSB Anytone 5555N-II Mobile HF CB/Amateur Radio 24-30Mhz*
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Couldn't load pickup availability
More Stock Arriving Early September 2026
*** Order Yours Today ***
PLEASE NOTE:-
* These Radios Are Sold as Amateur Radios, just like any other amateur radios we do not recommend to operate out of band These radios are not type approved as a CB radio and you must be a licensed operator to use amateur frequencies *
AM/FM/USB/LSB Anytone AT5555N II - Mobile HF CB/Amateur Radio 24.715Mhz to 30.105Mhz*
BIG PUNCH!!! 60Watts!!!
COVERS ALL THE BANDS AND ALL THE MODES AM & FM & USB & LSB
Specification
|
GENERAL
|
||
|
Frequency Range
|
24-30Mhz*
|
|
|
Frequency Band
|
A/B/C/D/E/F/G/H/I
|
|
|
Frequency Tolerance
|
±5.0ppm
|
|
|
Channel
|
40channels in each band
|
|
|
Frequency Control
|
Phase-Locked-Loop Synthesizer
|
|
|
Frequency Step
|
100Hz、1KHz、10KHz、100KHz、1MHz
|
|
|
Frequency Tolerance
|
±5.00ppm
|
|
|
Input Voltage
|
13.8V
|
|
|
Microphone
|

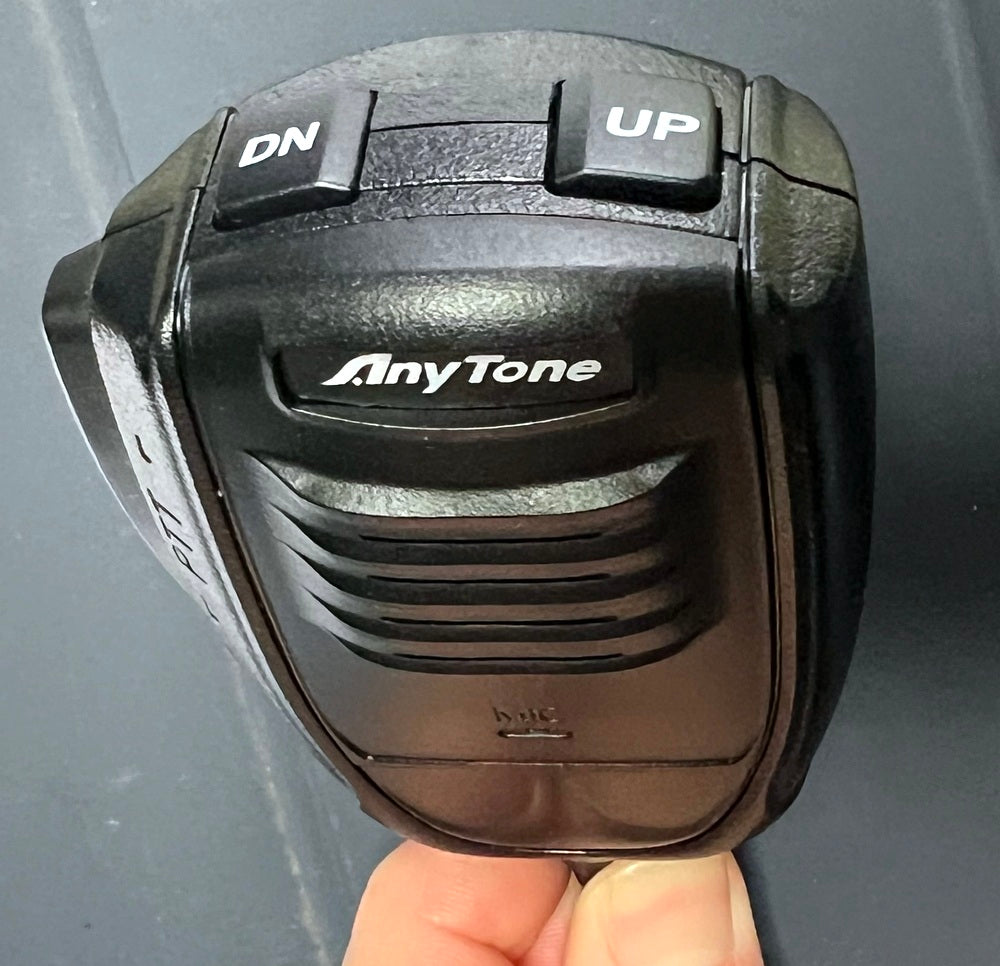

with push-to-talk /UP/DN and coiled cord
|
|
|

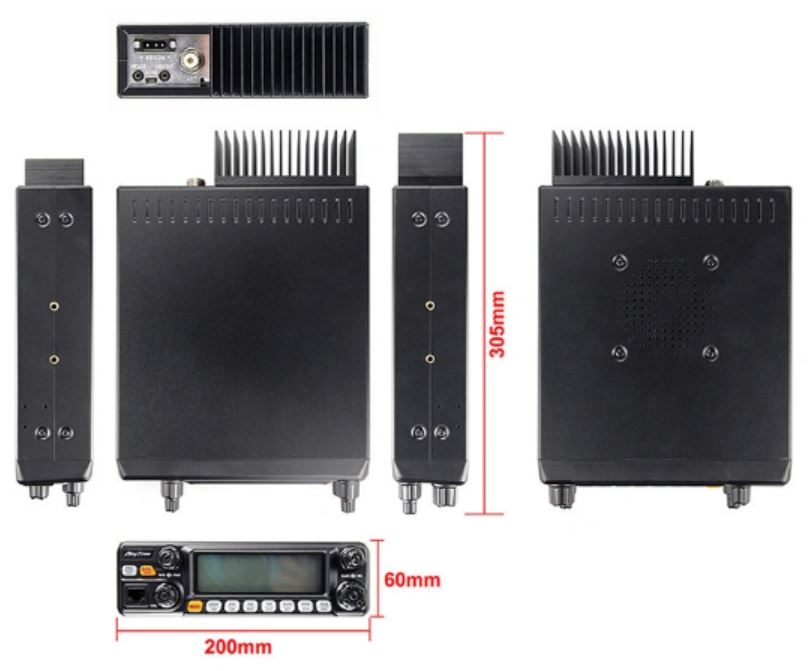

Dimensions
|
305(L)x200(W)x60(H)
|
|
|
Weight
|
1.75kgs
|
|
|
Antenna Connector
|
UHF, Standard SO239
|
|
|
Operating Temperature Range
|
-20℃ to +50℃
|
|
|
TRANSMITTER
|
||
|
Power Output
|
AM 60W, FM 50W, USB & LSB 60W
|
|
|
Drain
|
10A (with modulation)
|
|
|
Modulation
|
AM/FM/USB/LSB
|
|
|
Inter-modulation Distortion
|
SSB: 3rd order, more than -25dB; 5th order, more than -35dB
|
|
|
SSB Carrier Suppression
|
55dB
|
|
|
Unwanted Sideband
|
50dB
|
|
|
Frequency Response
|
AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
|
|
|
Output Impedance
|
50ohms, unbalanced
|
|
|
RECEIVER
|
||
|
Sensitivity
|
SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output AM:1.0μV for 10dB(S+N)/N at greater than 1/2watt of audio
output FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output |
|
|
Adjacent-Channel Selectivity
|
AM/FM: 60dB SSB: 70dB
|
|
|
Image Rejection
|
More than 65dB
|
|
|
IF Frequency
|
AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz
|
|
|
RF Gain Control
|
45dB adjustable for optimum signal reception
|
|
|
Automatic Gain Control(AGC)
|
Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt.
|
|
|
Squelch
|
Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV
|
|
|
Audio Output Power
|
3 watts into 8 ohms
|
|
|
Frequency Response
|
AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
|
|
|
Built-in Speaker
|
8 ohms, round
|
|
|
External Speaker(Not Supplied)
|
8 ohms; disables internal speaker when connected.
|
|

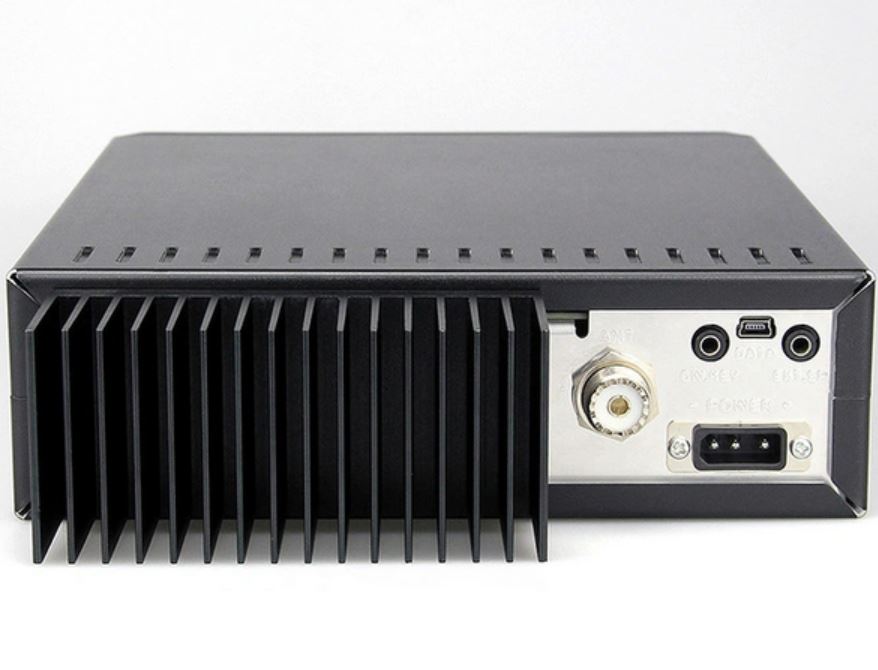

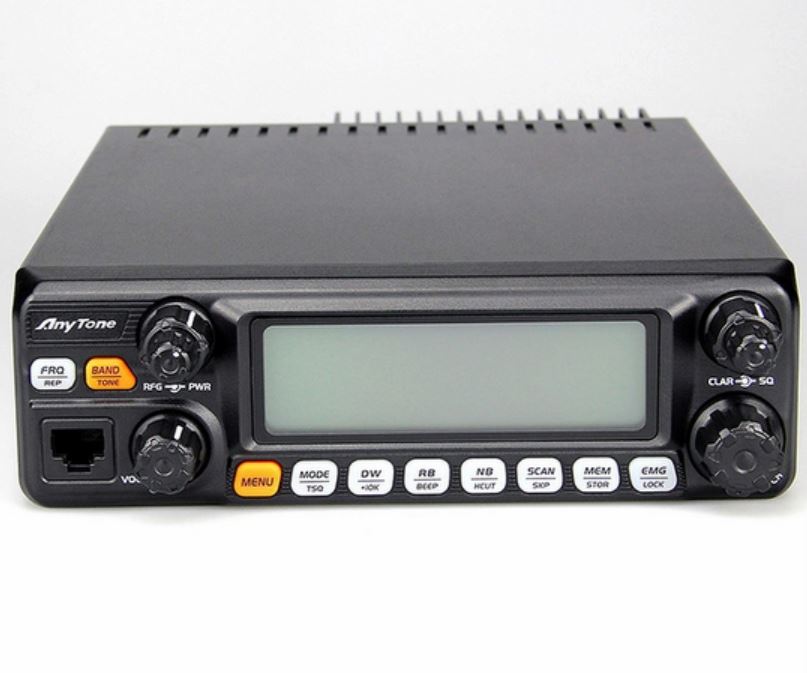

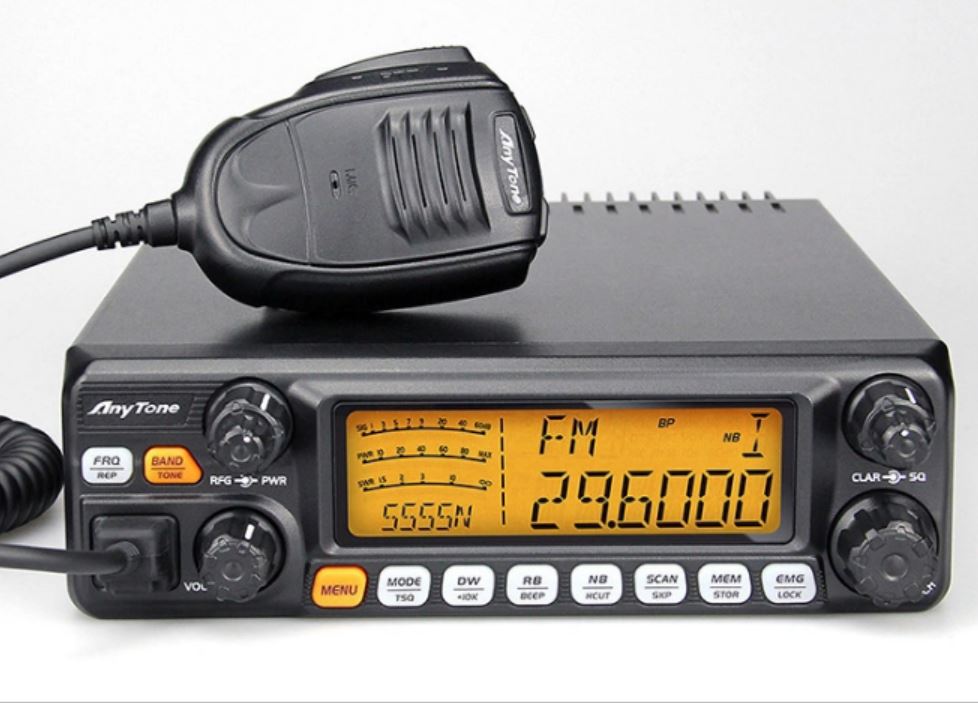

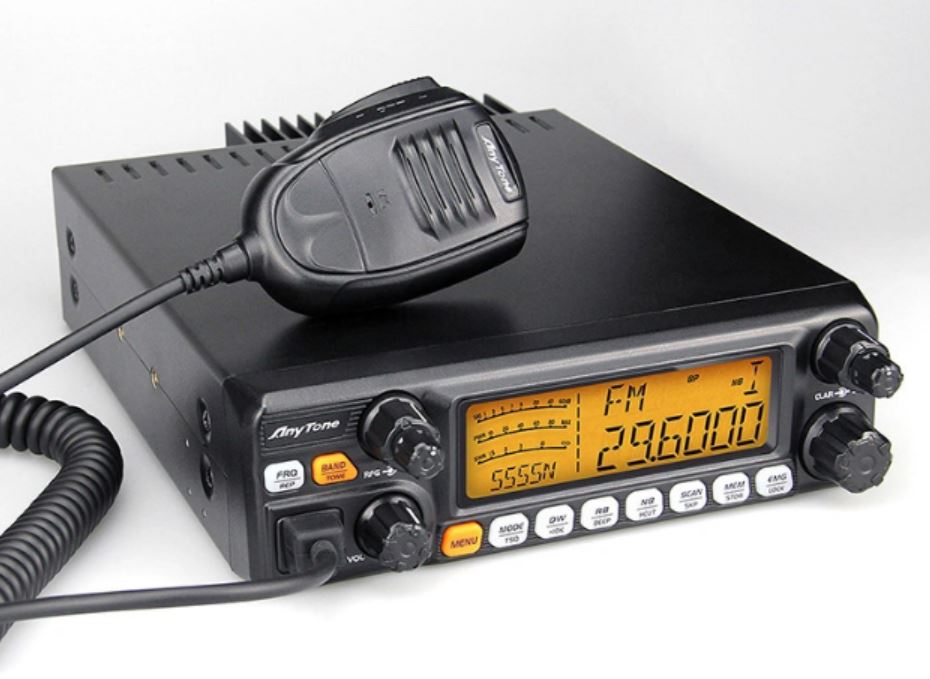

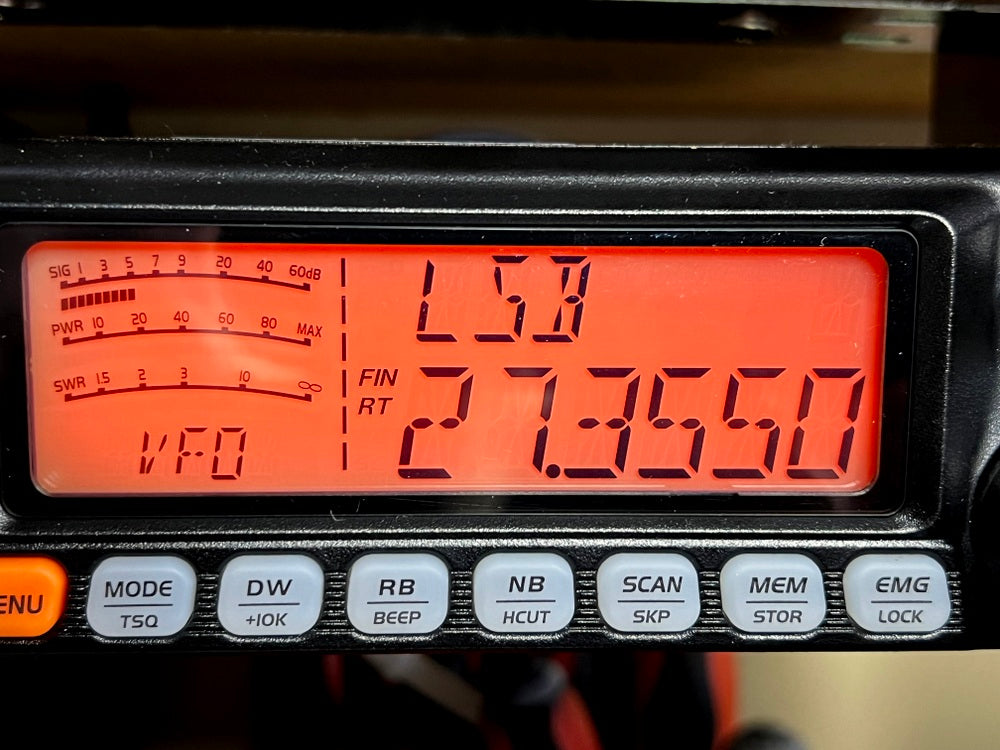

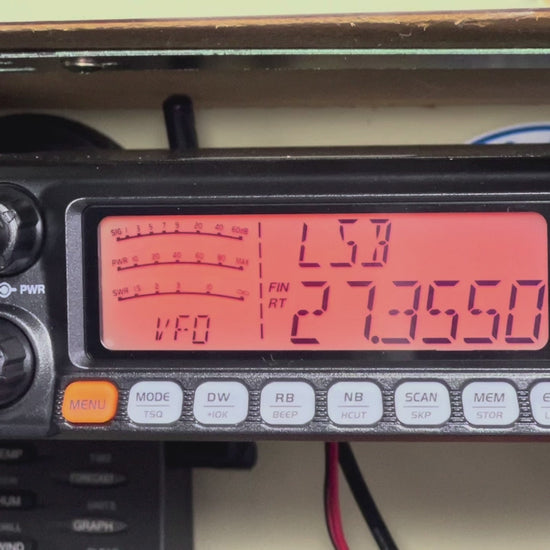

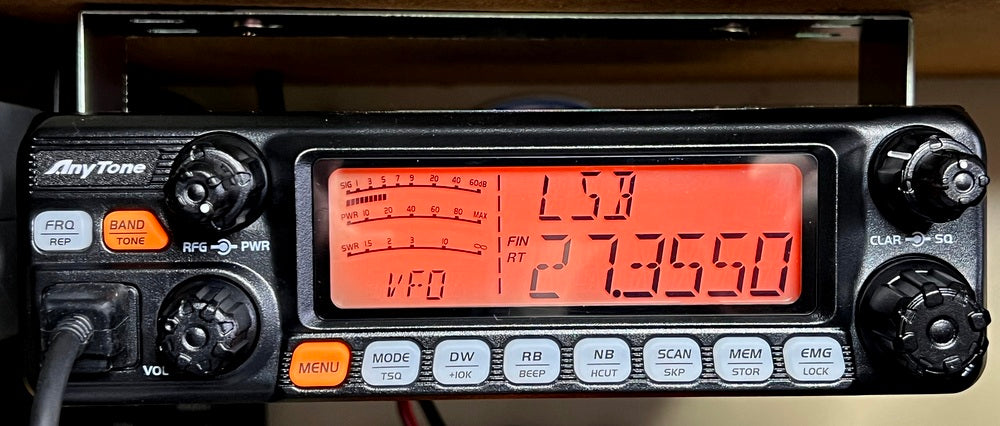

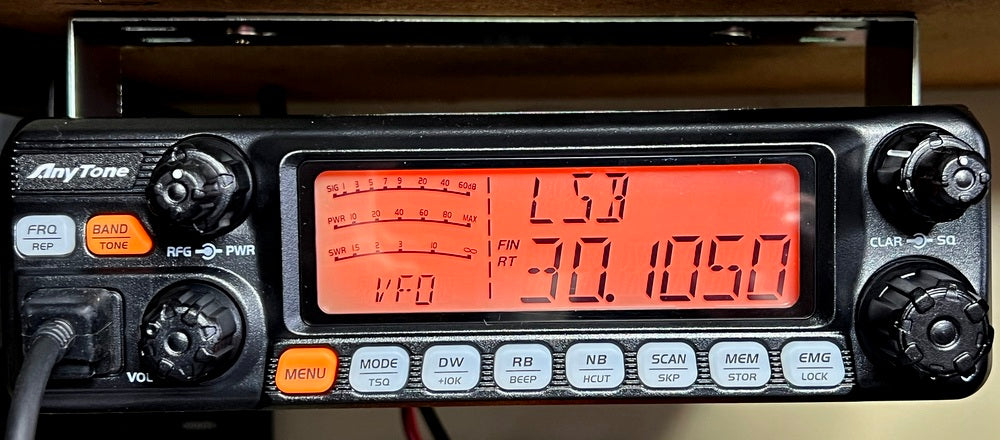

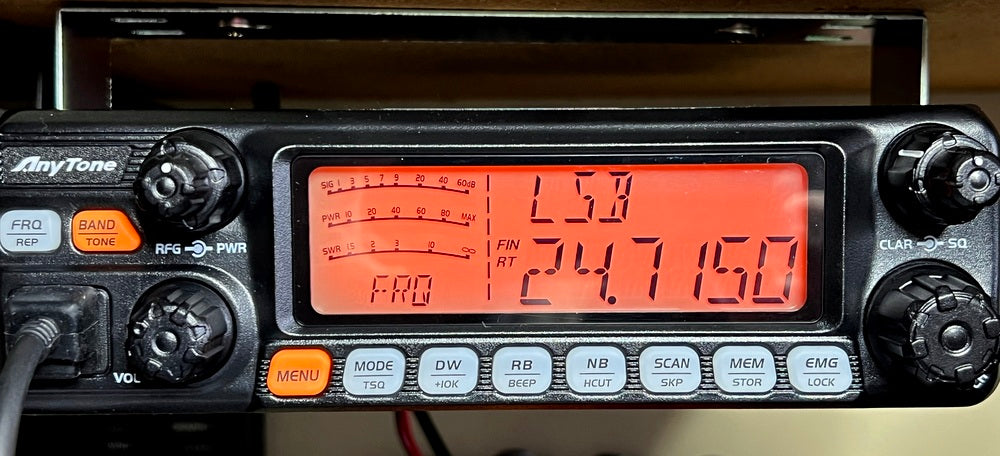

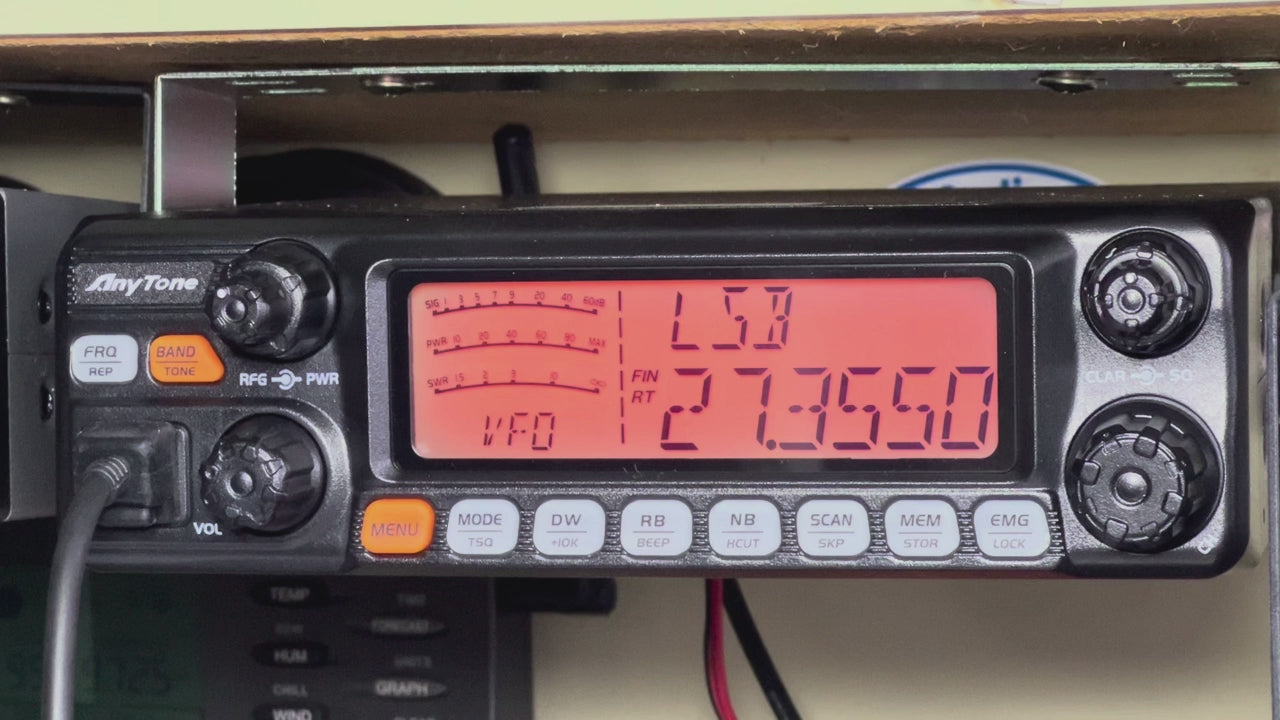

as in photos:
Actual product can look slightly different or different colours to photos and pictures but will still be the same arrangement
Price is for 1 x Radio

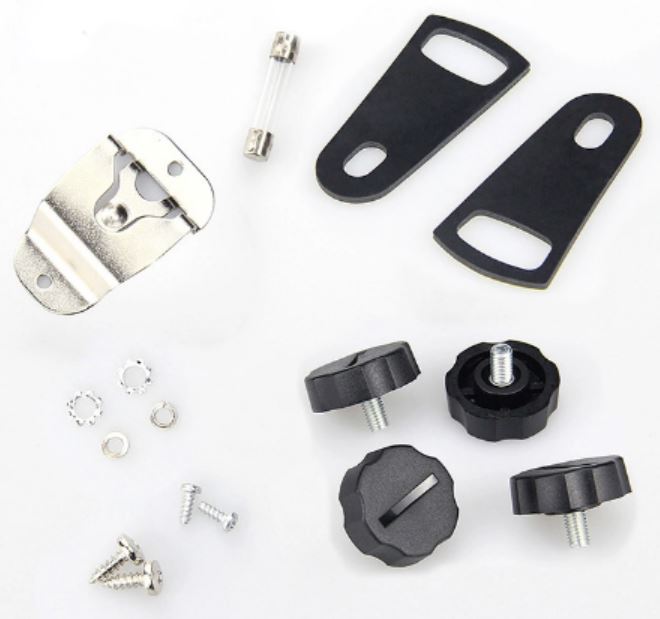

Radios Supplied Accessories:-

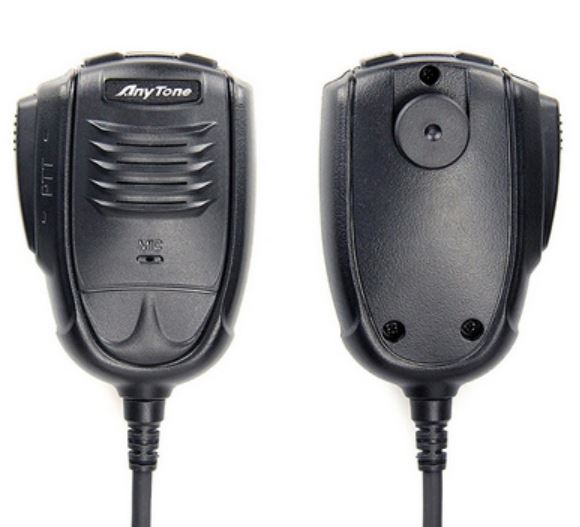

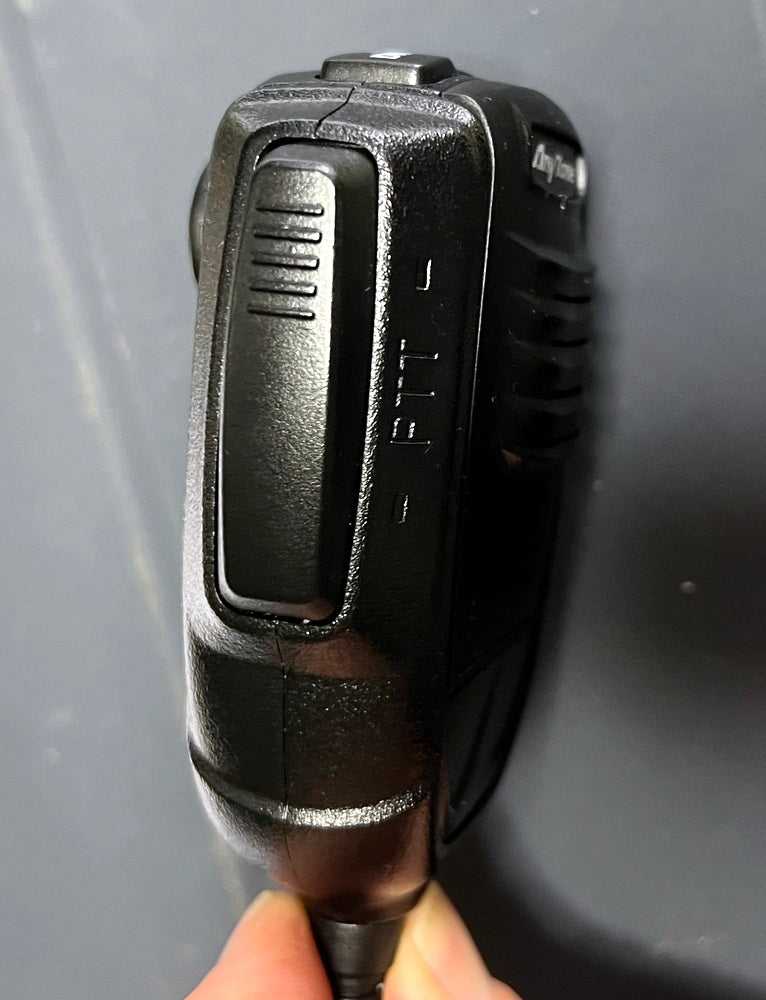

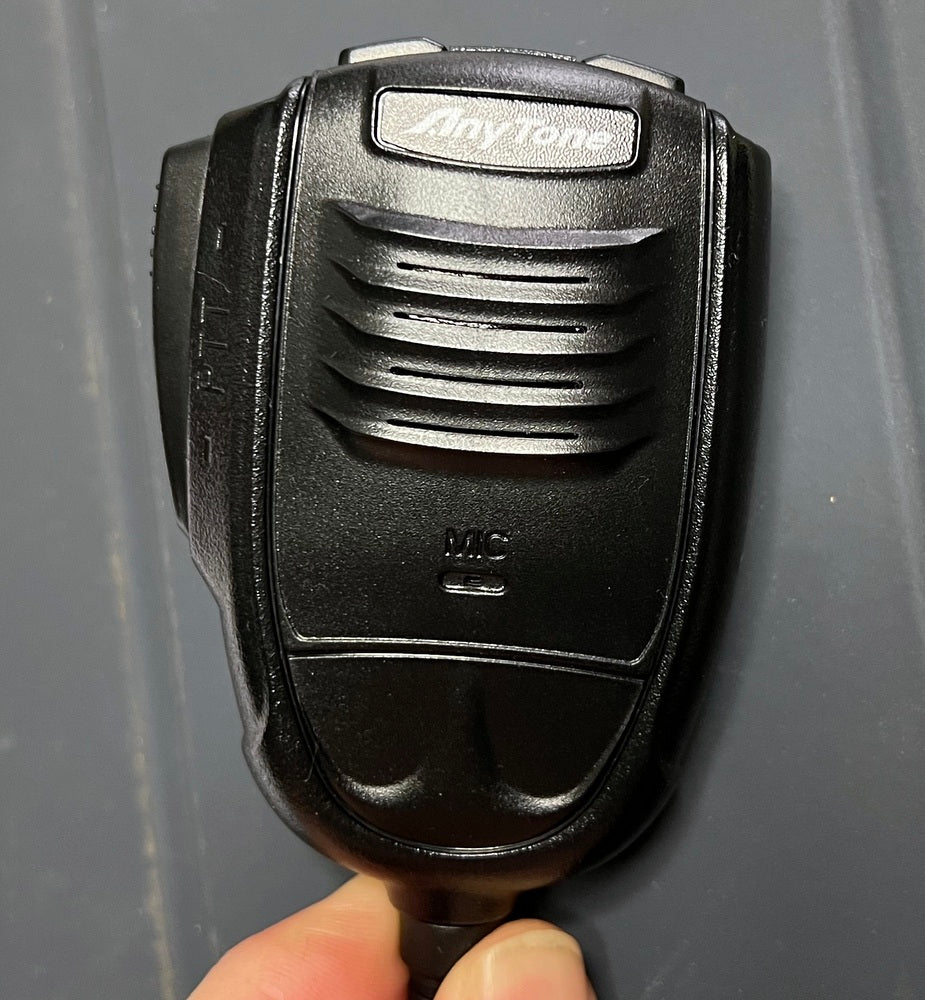

- Hand microphone
- Microphone hanger

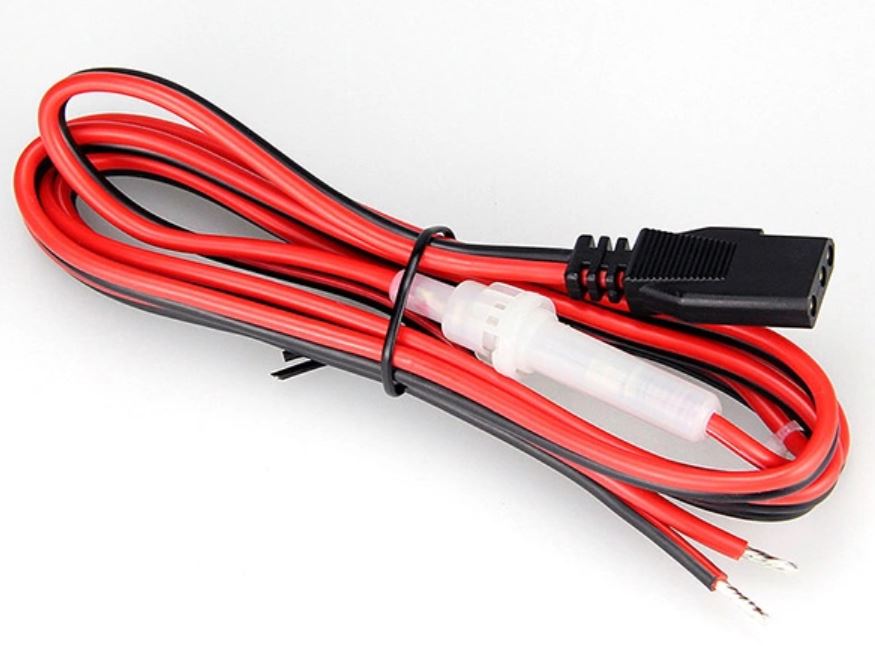

- DC power cable
- Mounting Bracket
