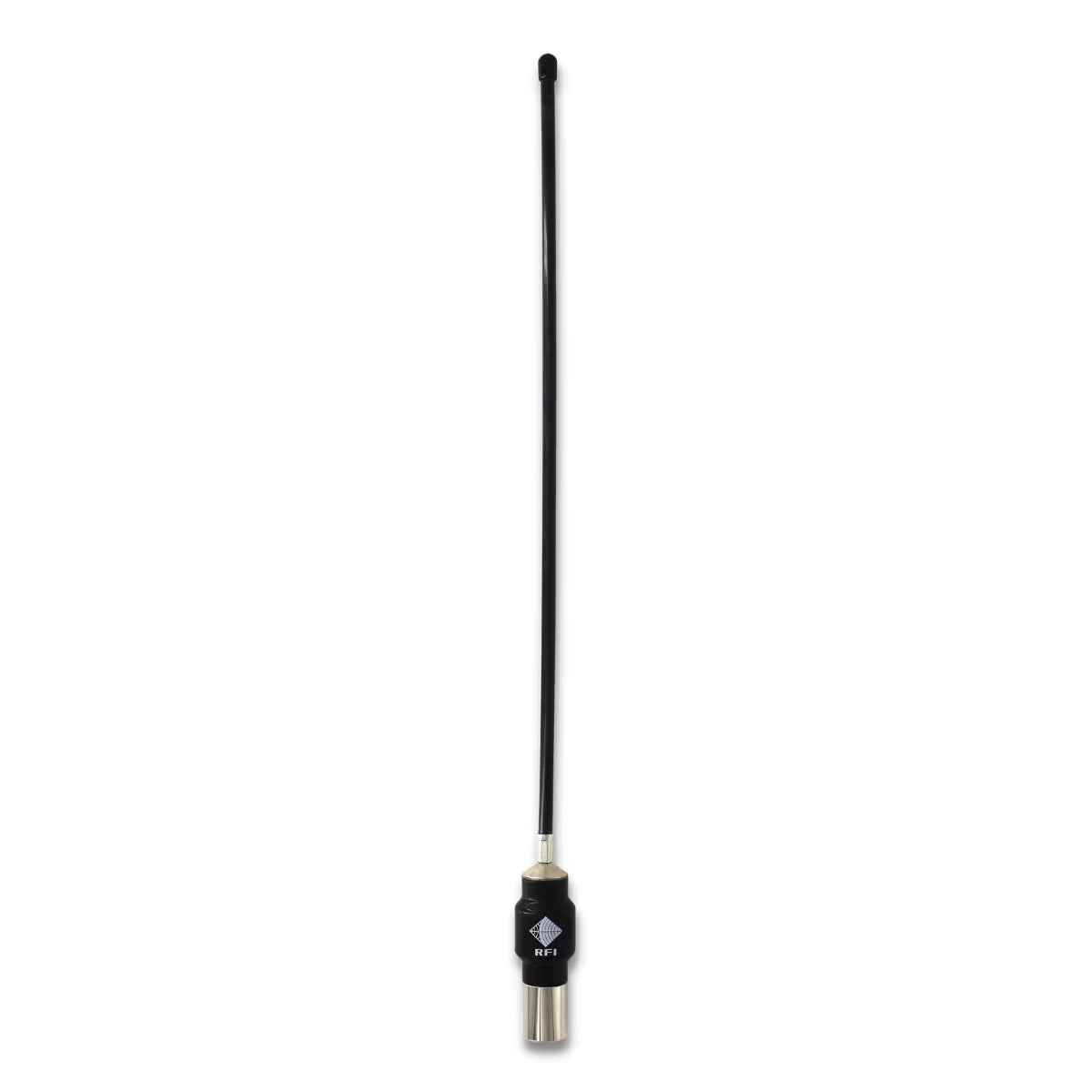

UHF 450-520Mhz Mobile Antenna MBC (PL259) Base 4dB Mopole Ground Indapendent
UHF 450-520Mhz Mobile Antenna MBC (PL259) Base 4dB Mopole Ground Indapendent
Regular price
$74.99
Regular price
Sale price
$74.99
Unit price
per
Couldn't load pickup availability
RFI UHF 4dB Broadband Mopole Antenna 450-520MHz Comes with a S0239 (MBC) Base mount
These types of antennas ares use by nearly ALL emergency services in Australia due to there robust and simple installation

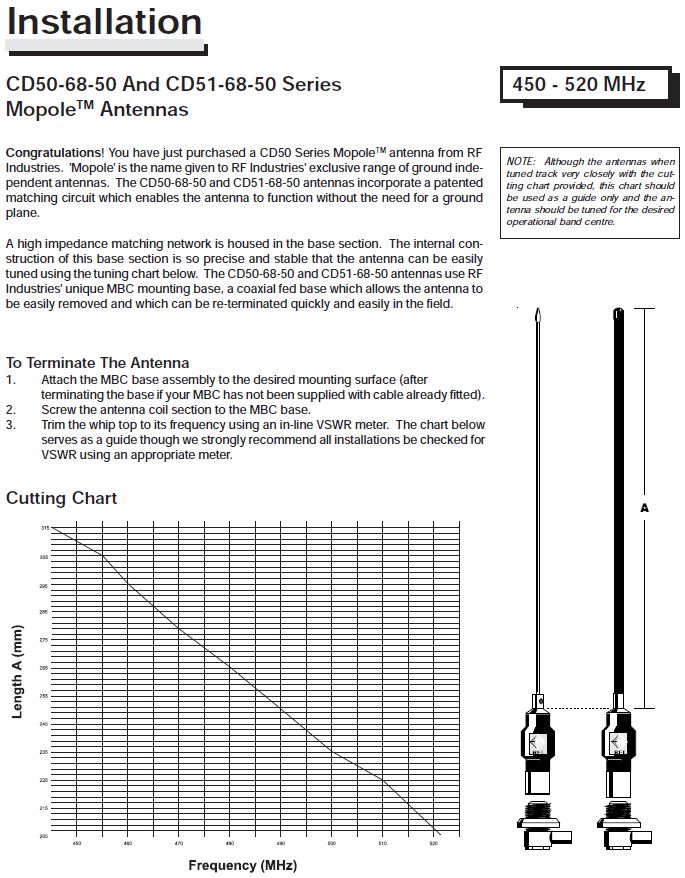

They are supplied with a basic tuning chart to help making tuning to your desired frequency a breeze
These Series of UHF ground independent Mopole antennas are versatile and popular antennas, providing excellent performance in virtually any mounting position.

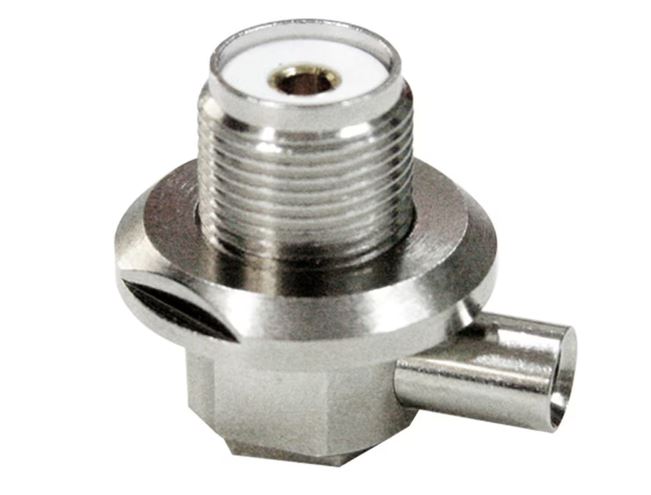

When mounted on a vehicle gutter or similar position, these UHF Mopoles provide optimum performance with a largely omni-directional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern, a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the center of a metal roof. This antenna can be tuned to frequency in most cases from a chart. The antennas are fitted with a flexible nylon radome over a copper element making them ideal in industrial applications. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.
Features
- Ground plane independence allows alternative mounting locations
- High performance and largely omni-directional pattern when not centre roof mounted
- Patented design allows termination or re-termination in seconds
- Stainless steel whip or flexible nylon whips depending on model cater to individual needs
- Base coil is virtually indestructible
- Unique transformer design
- Australian Patents #596830 and #656793
Mopole antennas such as the CD50's and CD51's exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas
Features
- Ground plane independence allows alternative mounting locations
- High performance and largely omni-directional pattern when not centre roof mounted
- Patented design allows termination or re-termination in seconds
- Stainless steel whip or flexible nylon whips depending on model cater to individual needs
- Base coil is virtually indestructible
- Unique transformer design
- Australian Patents #596830 and #656793
Mopole antennas such as the CD50's and CD51's exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built up city areas
Please "Click Here" For PDF Tech Sheet

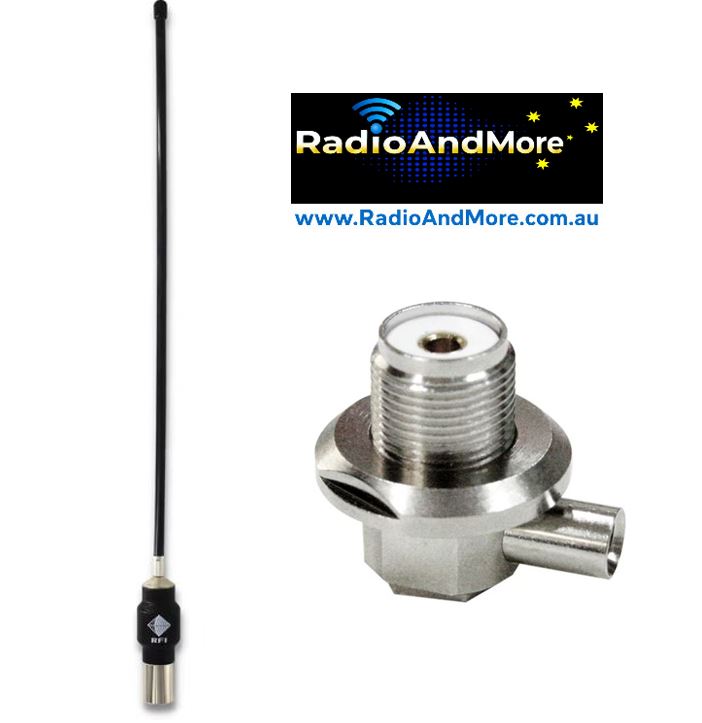

as in photos:
Actual product can look slightly different or different colours to photos and pictures but will still be the same arrangement
Price is for 1 x Item
CD51, CD50, CD51-68, CD50-68, CD51-68-50 RFI Mopole Antennas
