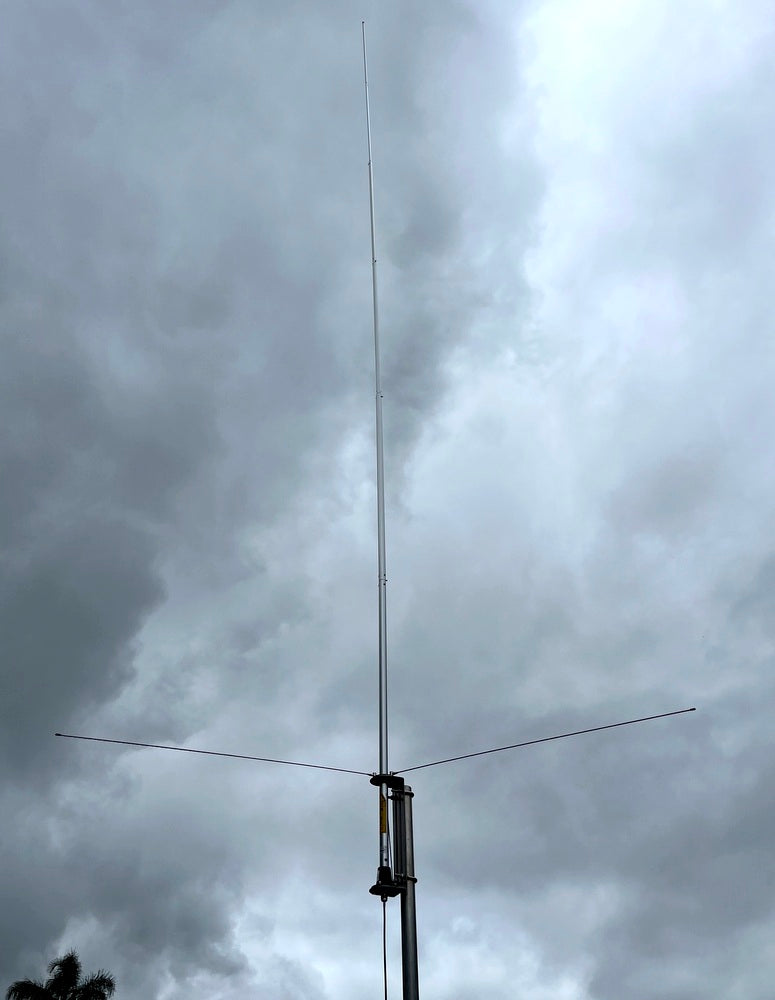

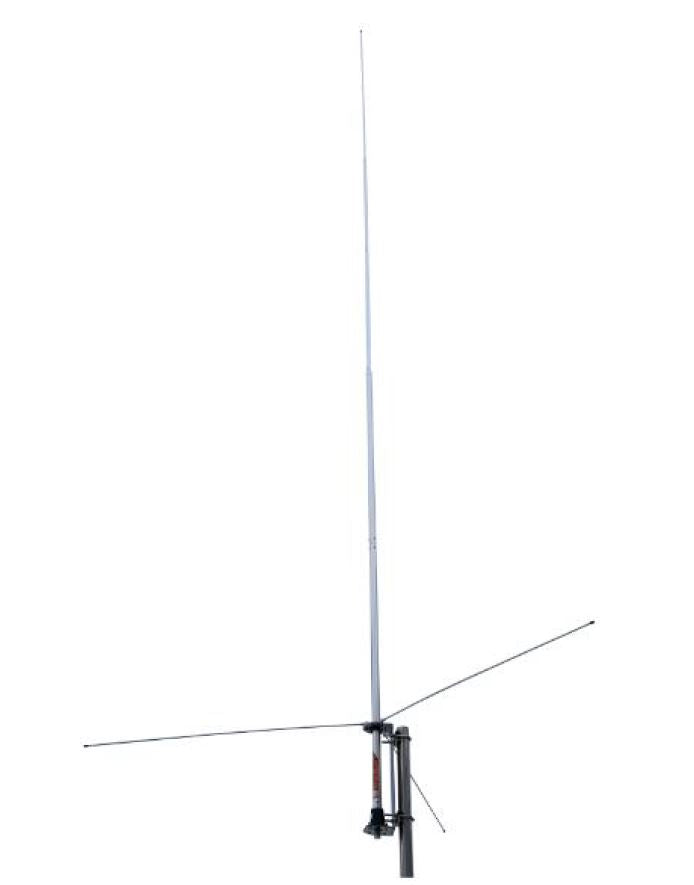

Base Station CB Antenna - 27Mhz CB Antenna 5.7Mtr Long (10Mtr 28-29Mhz*)

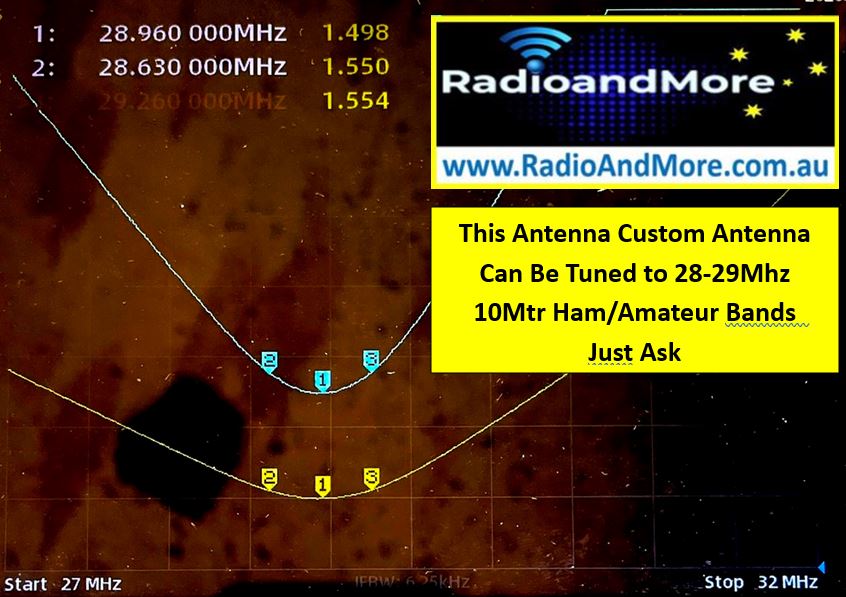

27Mhz Base Station Antenna CB (27Mhz) (*Can Be Tuned To 28-29Mhz - 10Mtr Bands Just Ask For More Info)

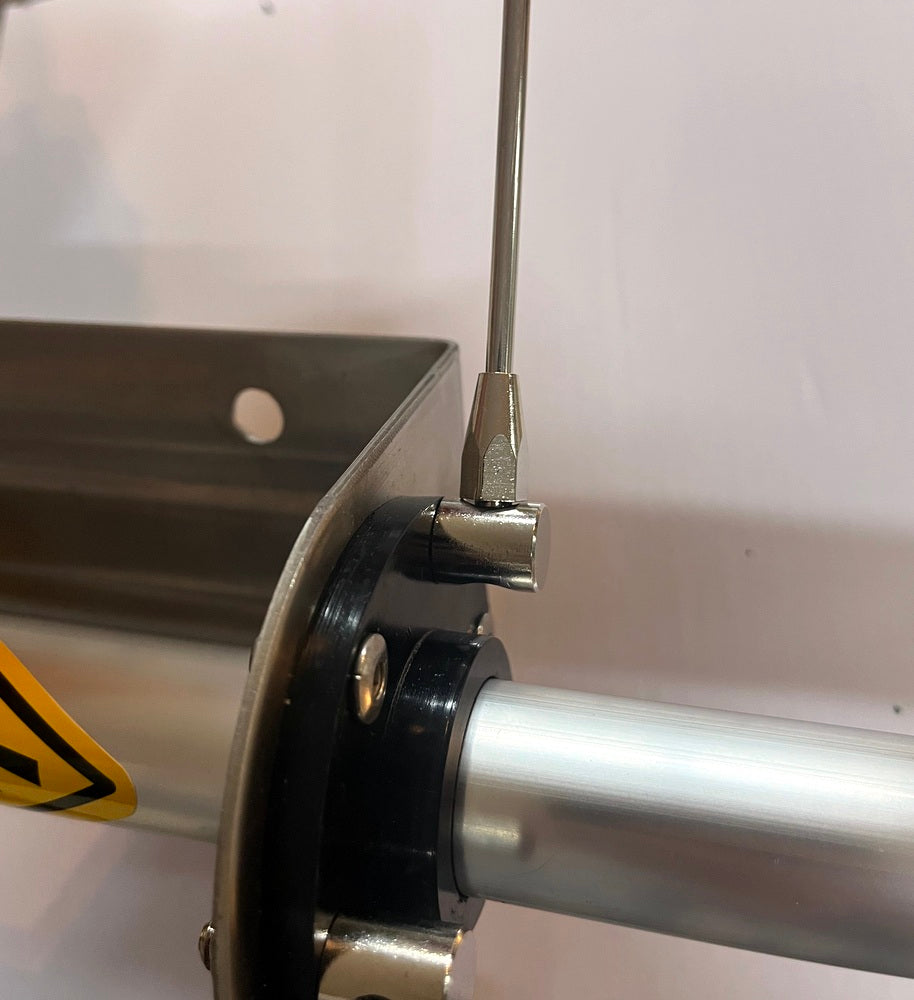

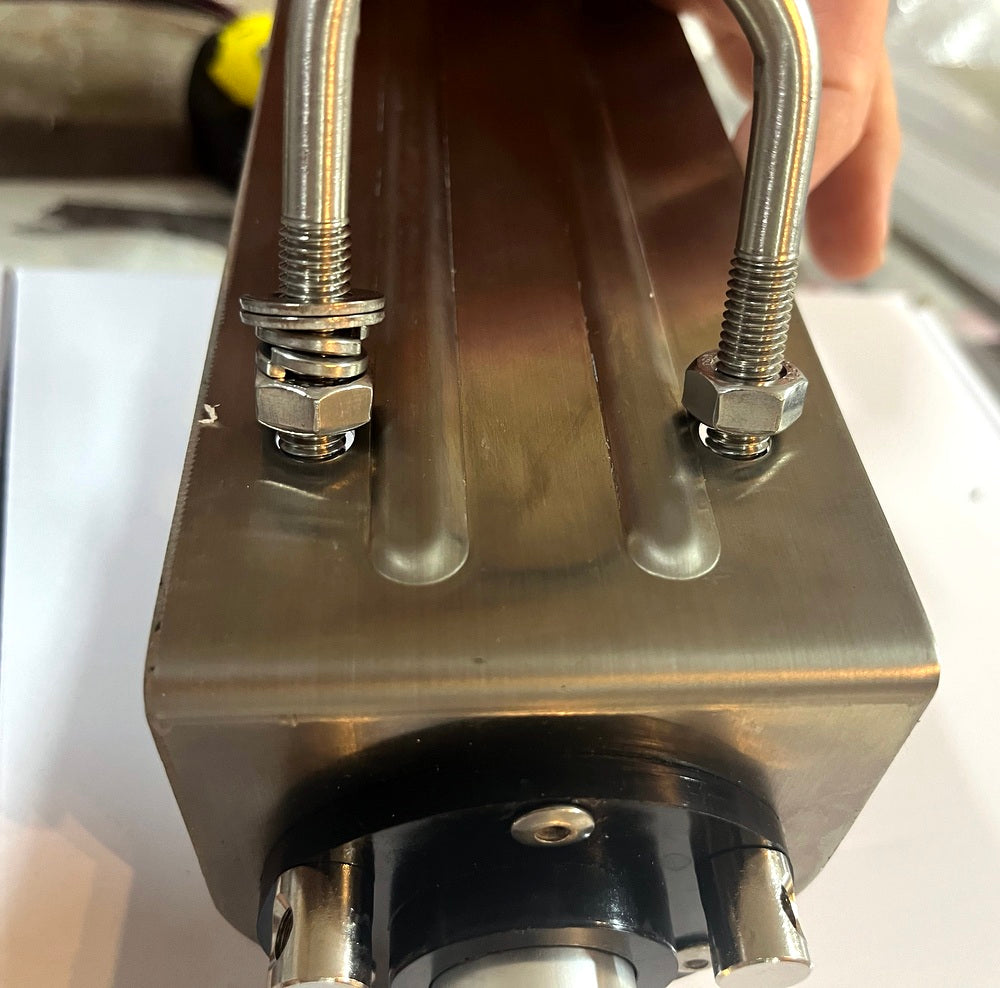

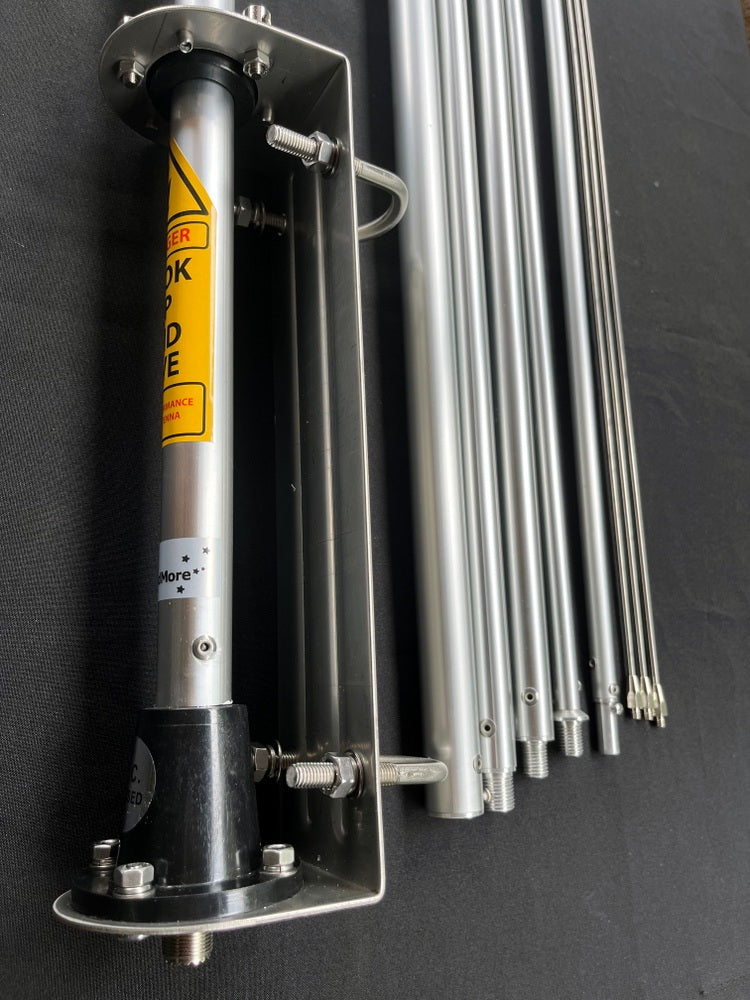

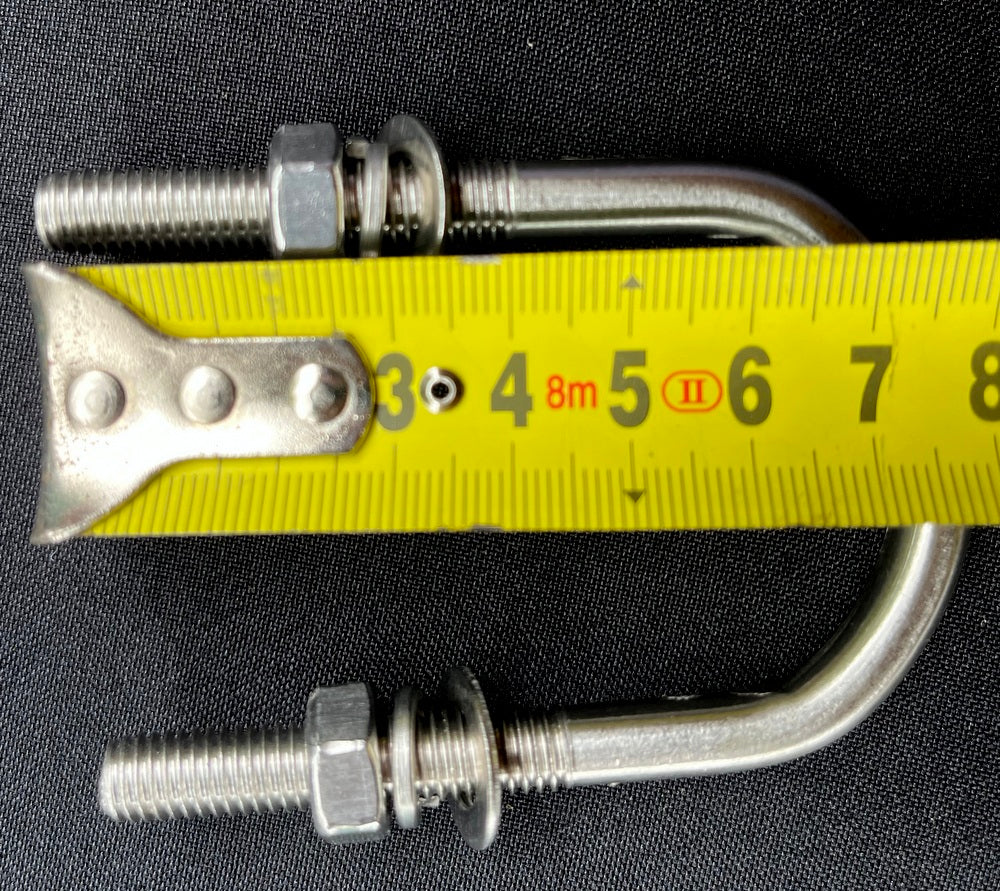

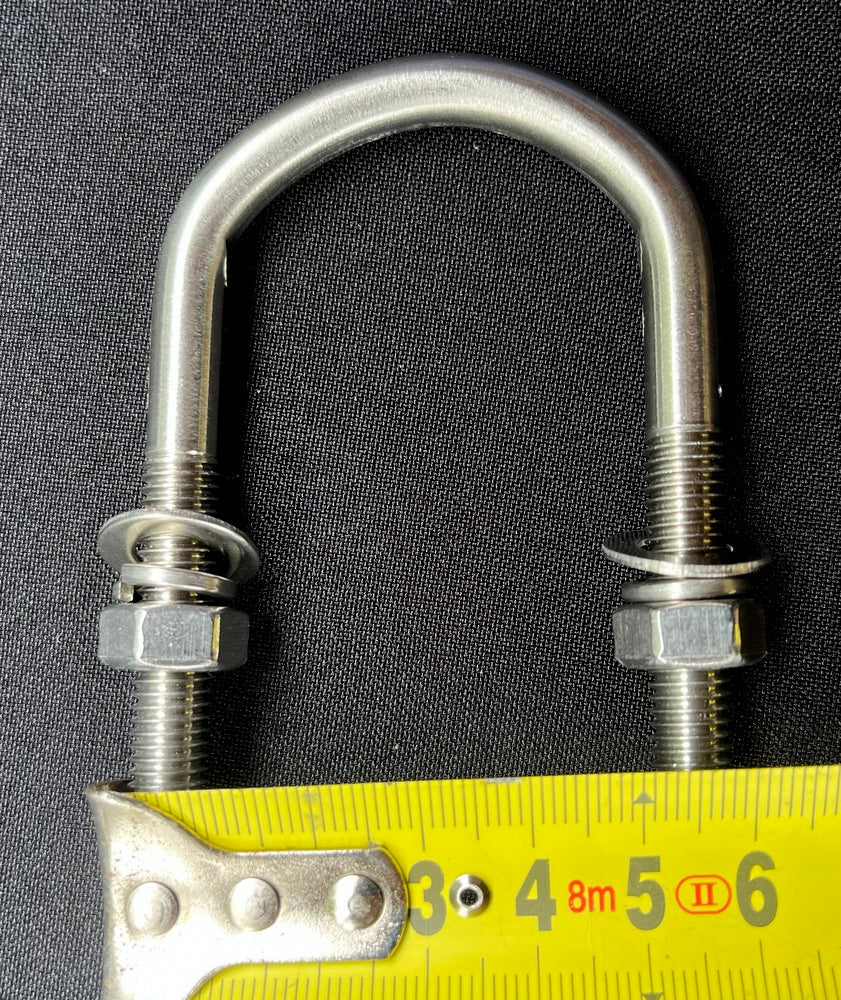

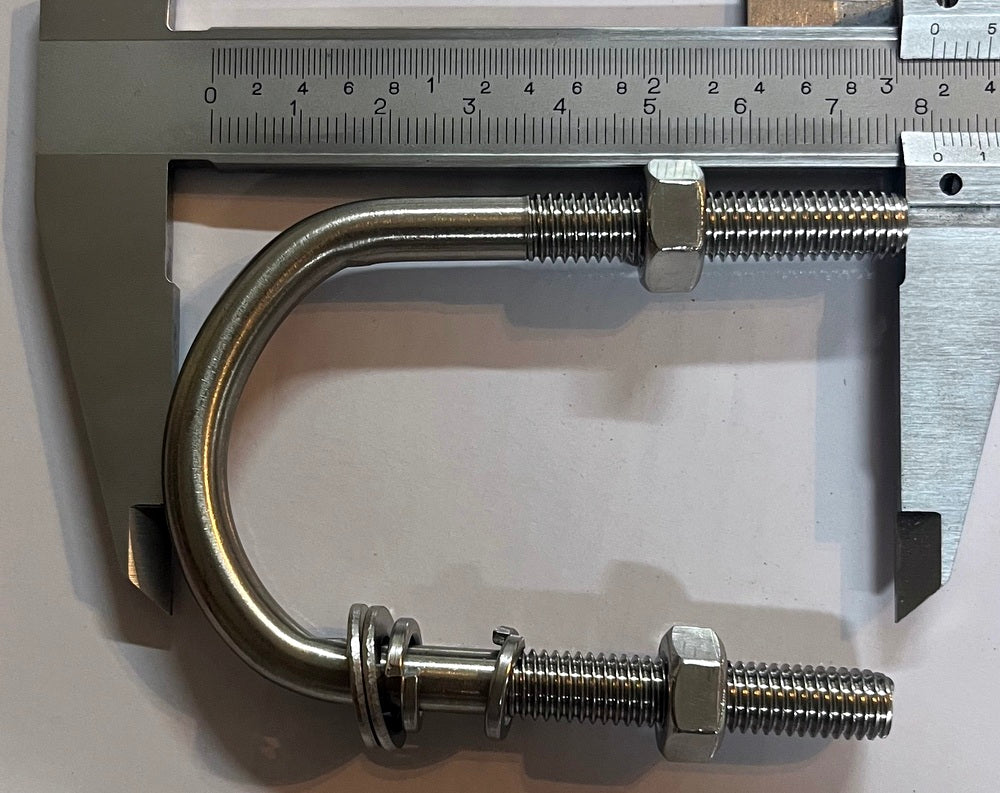

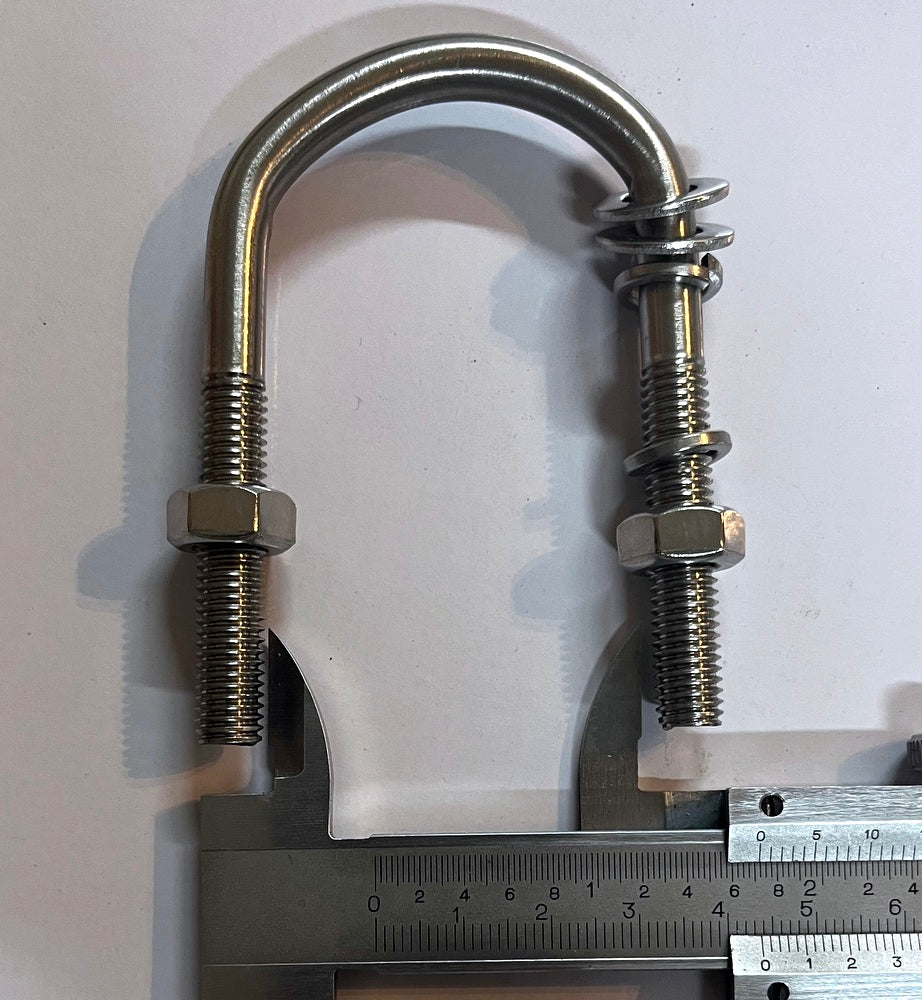

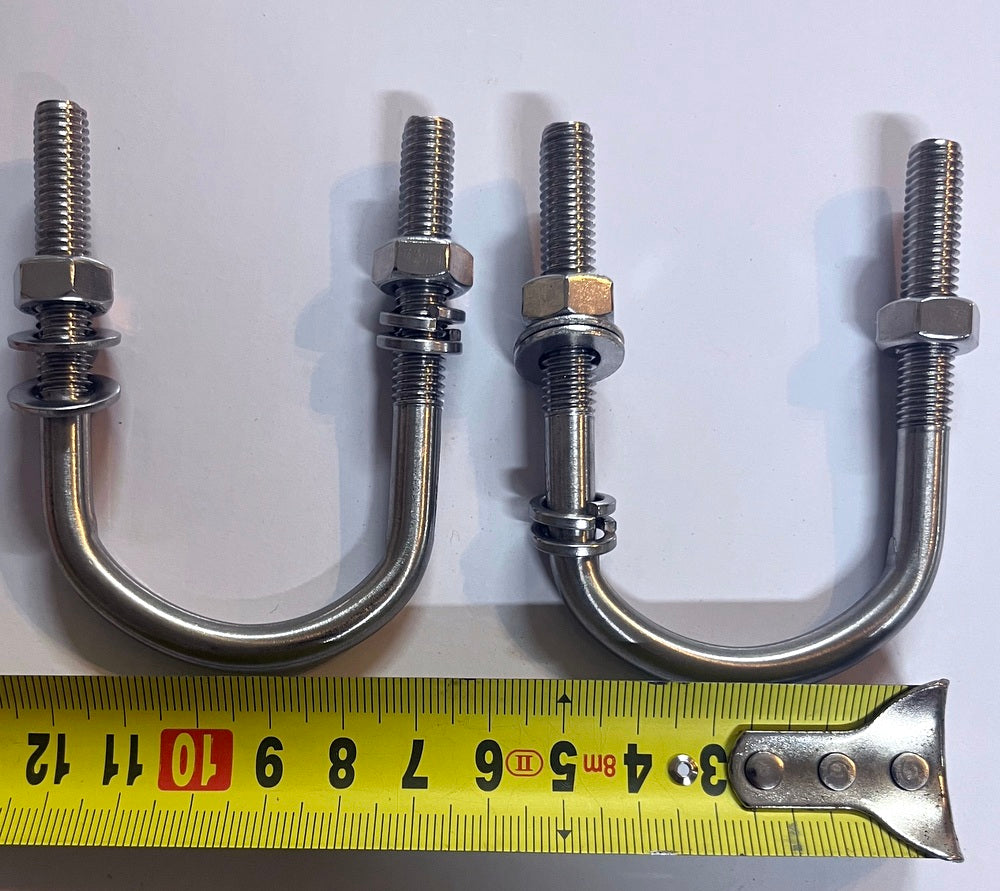

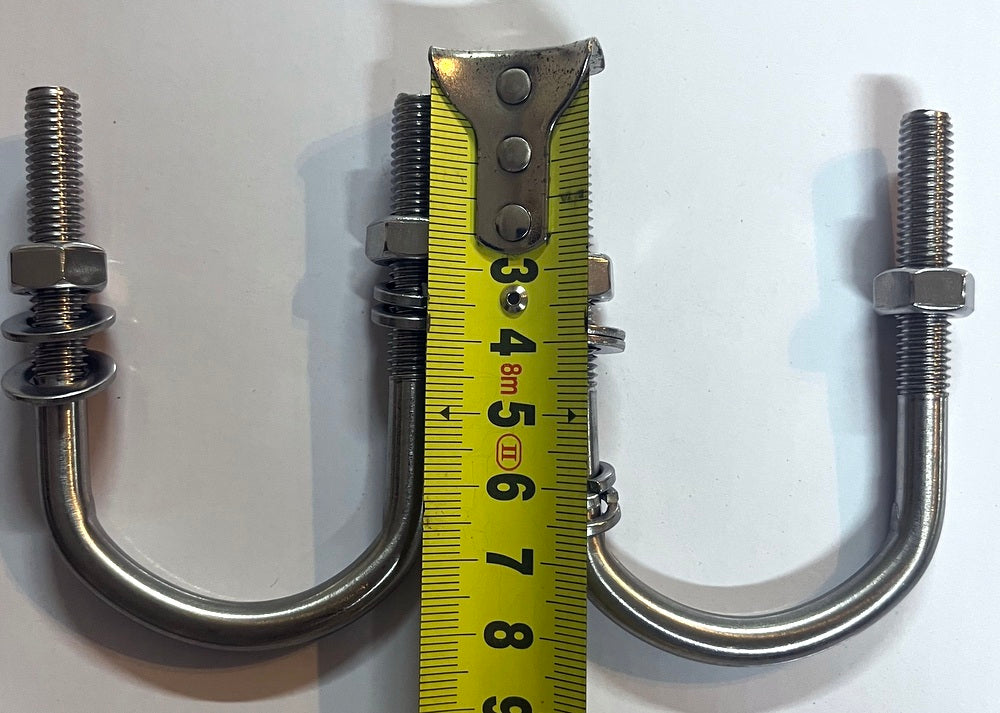

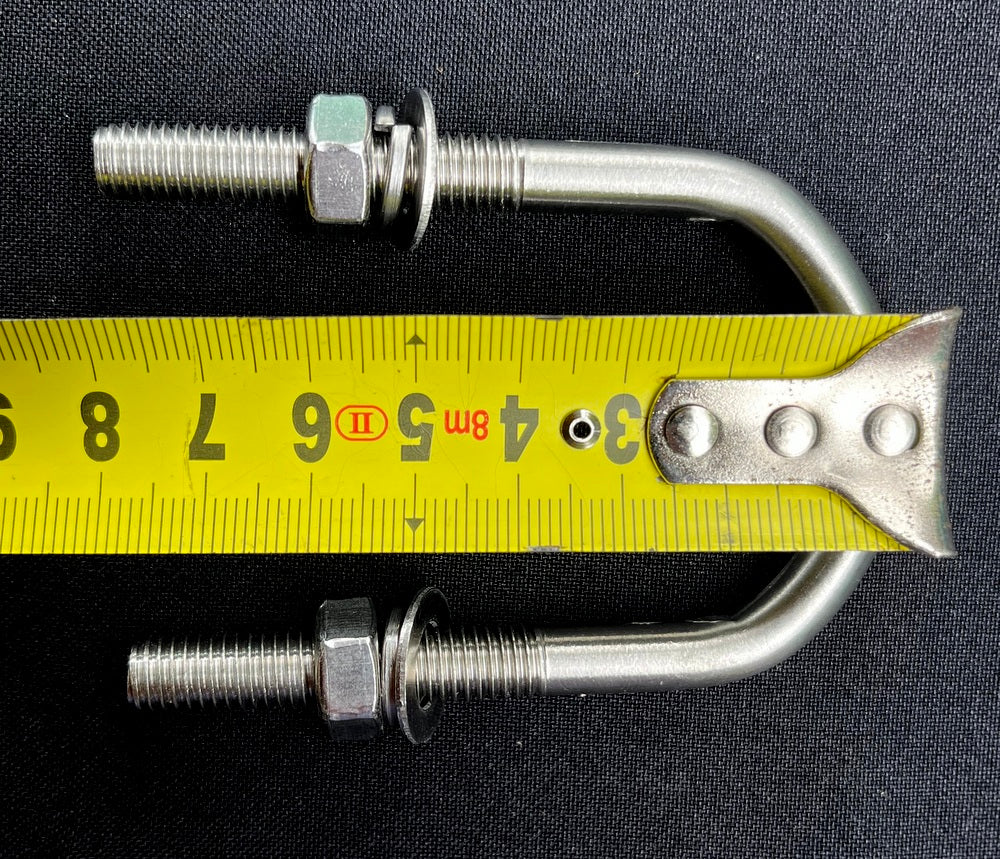

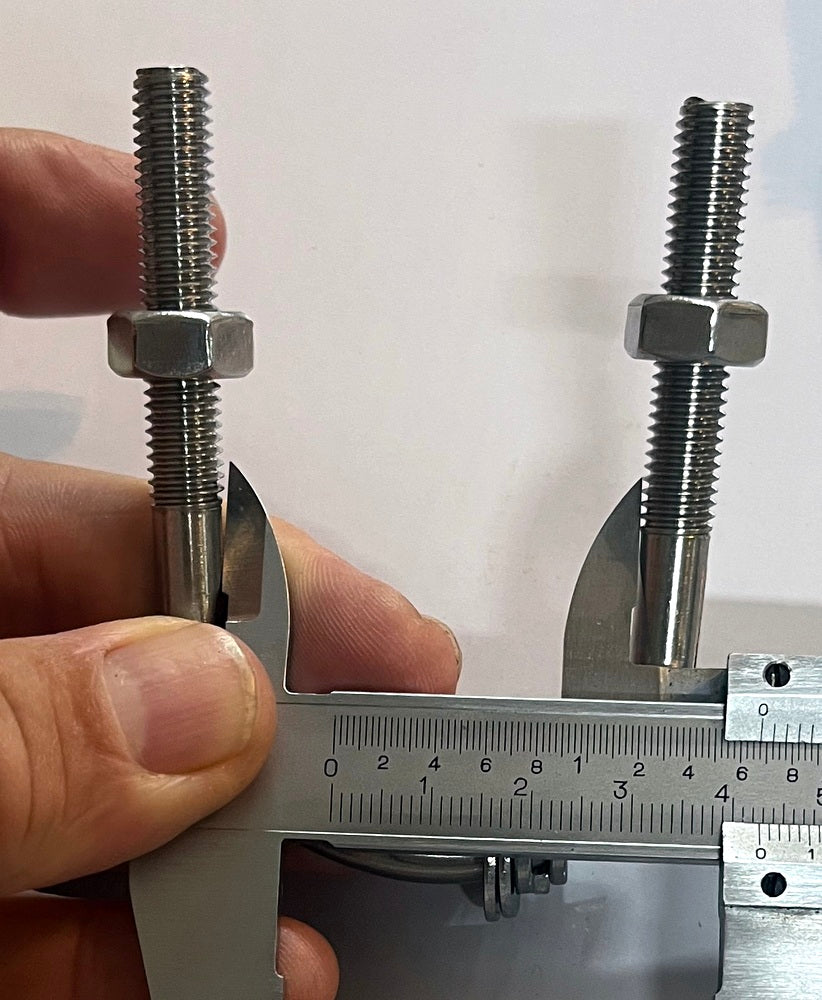

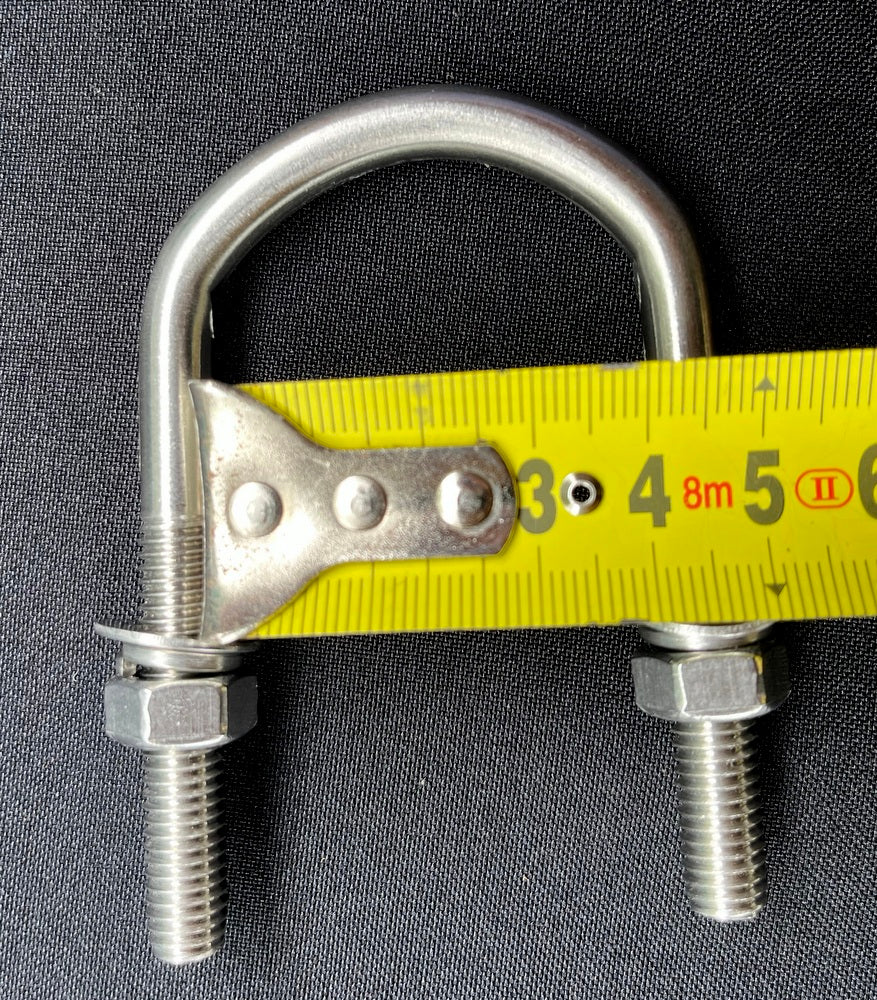

We Had This Antenna Custom Made With Stainless Steel Mounting Support, Radials and Stainless steel U-bolts we have had this made to better suit coastal areas

5.7 Meters in Alloy

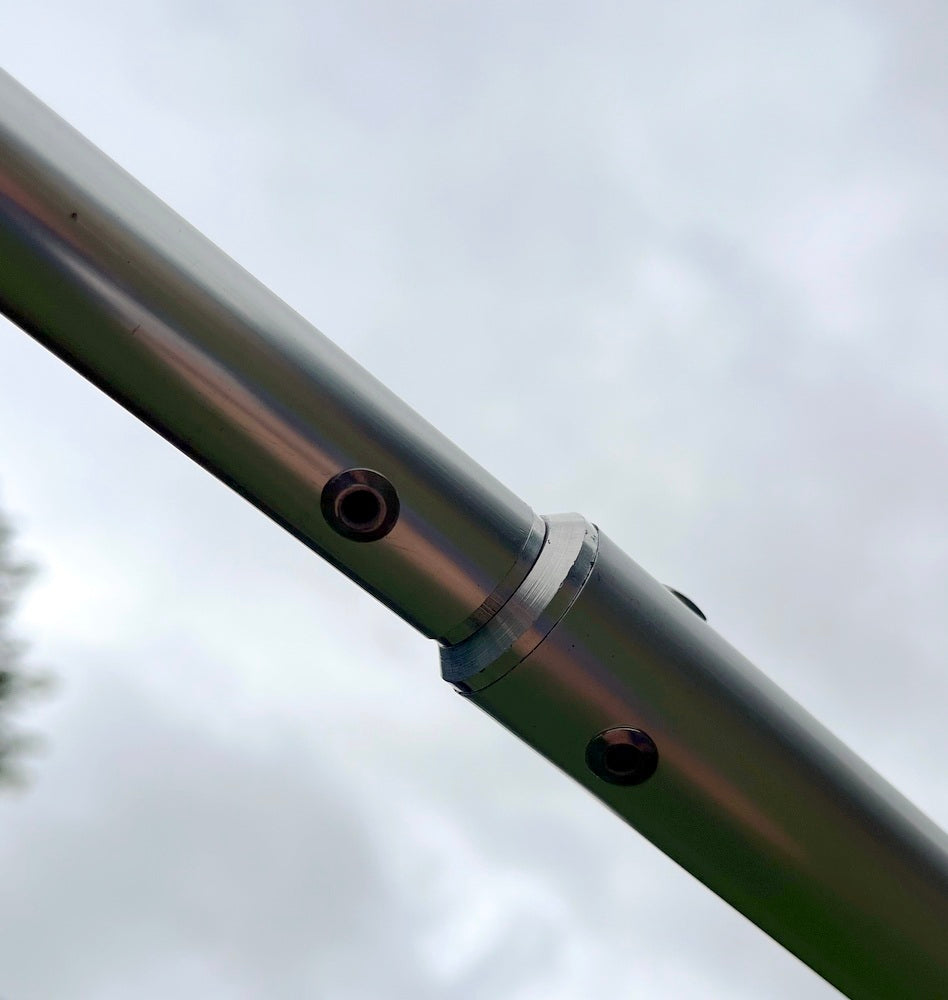

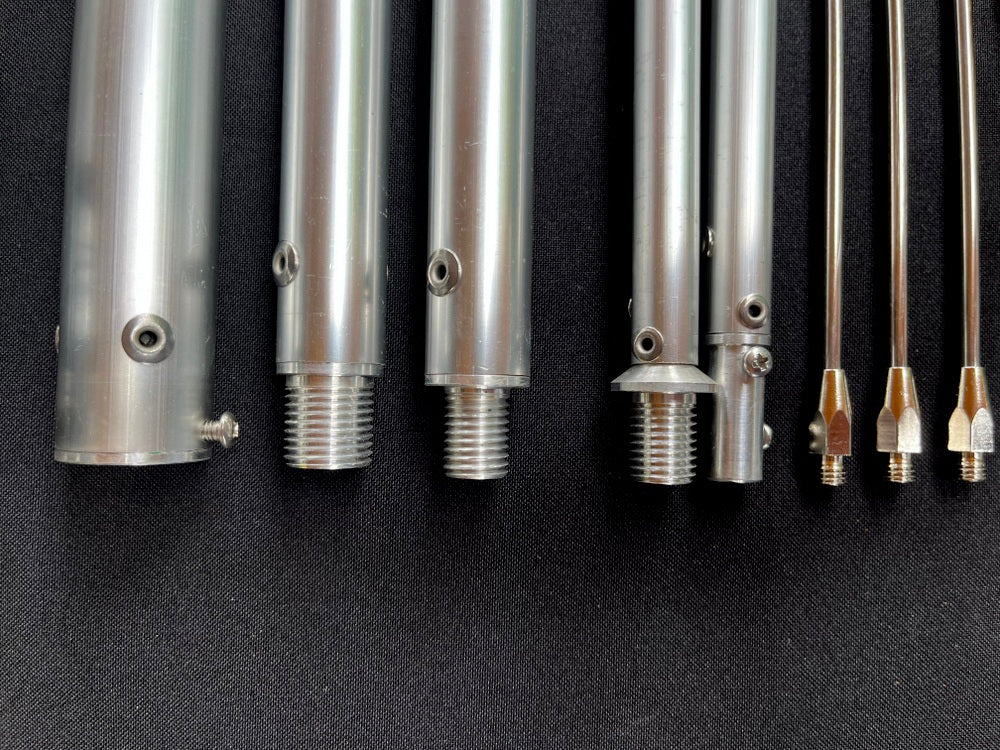

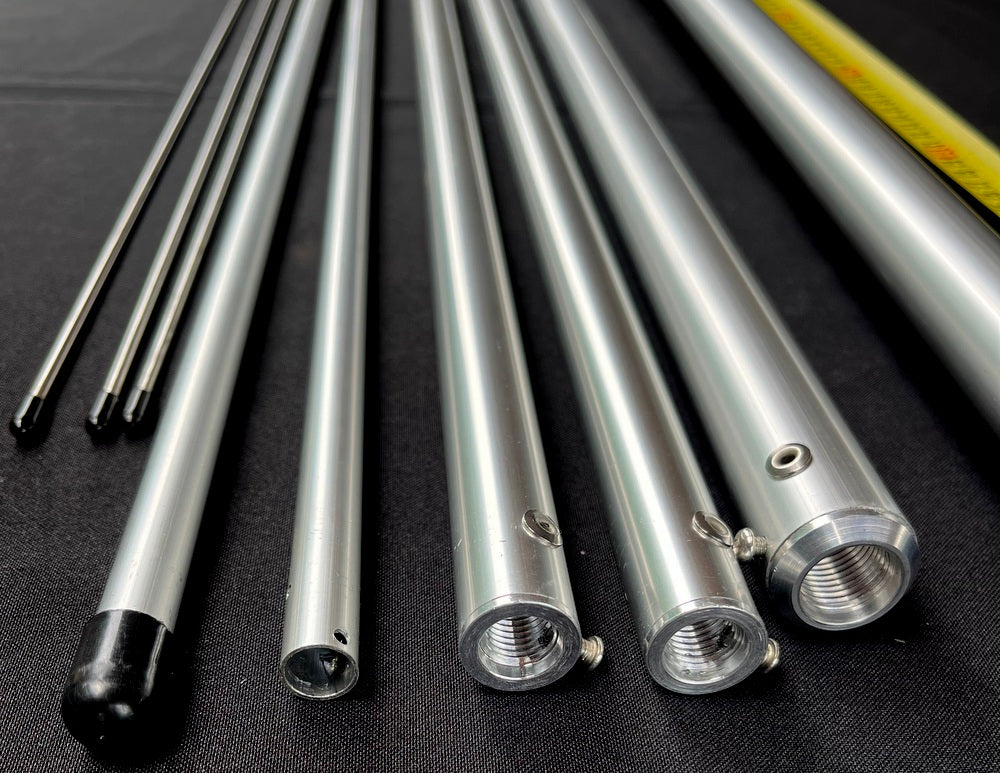

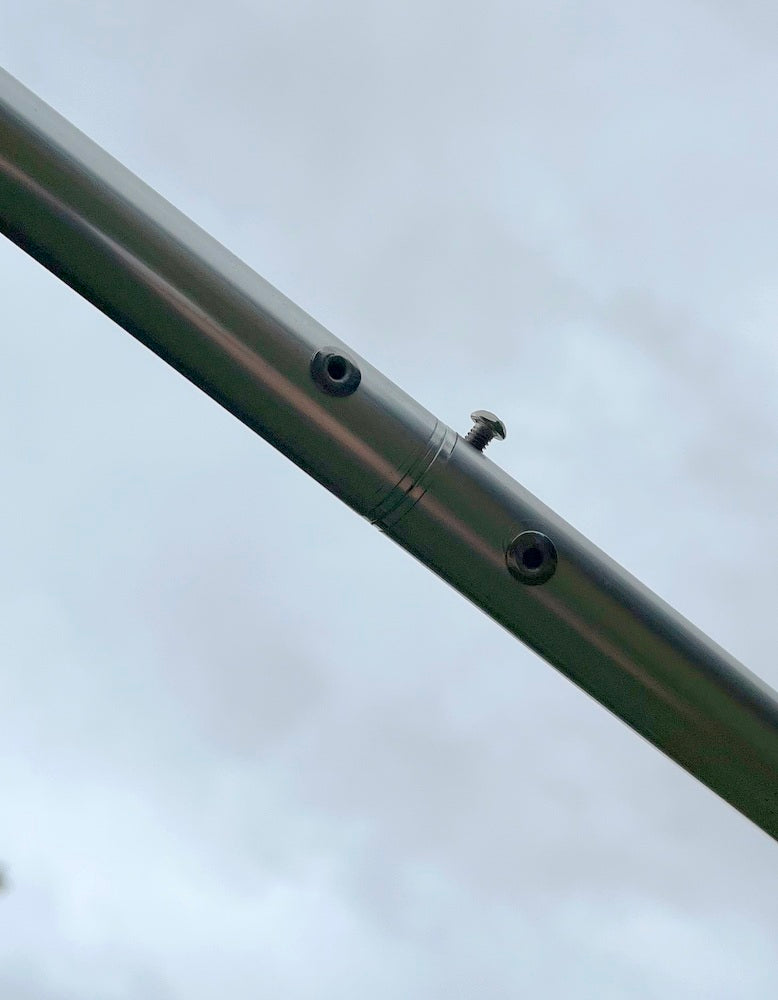

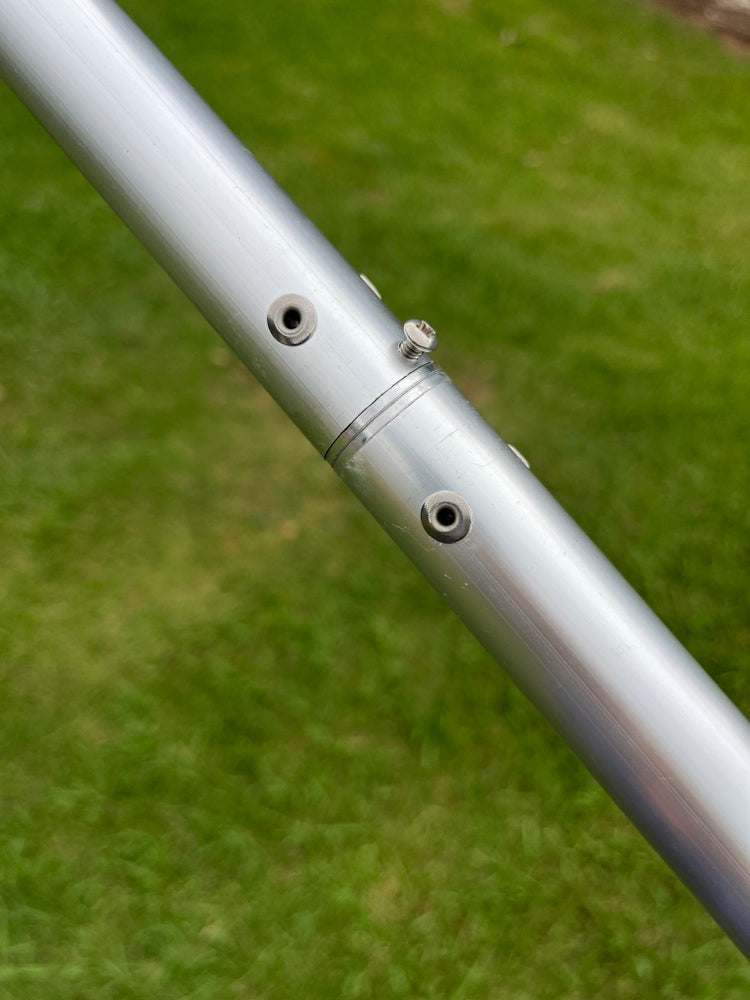

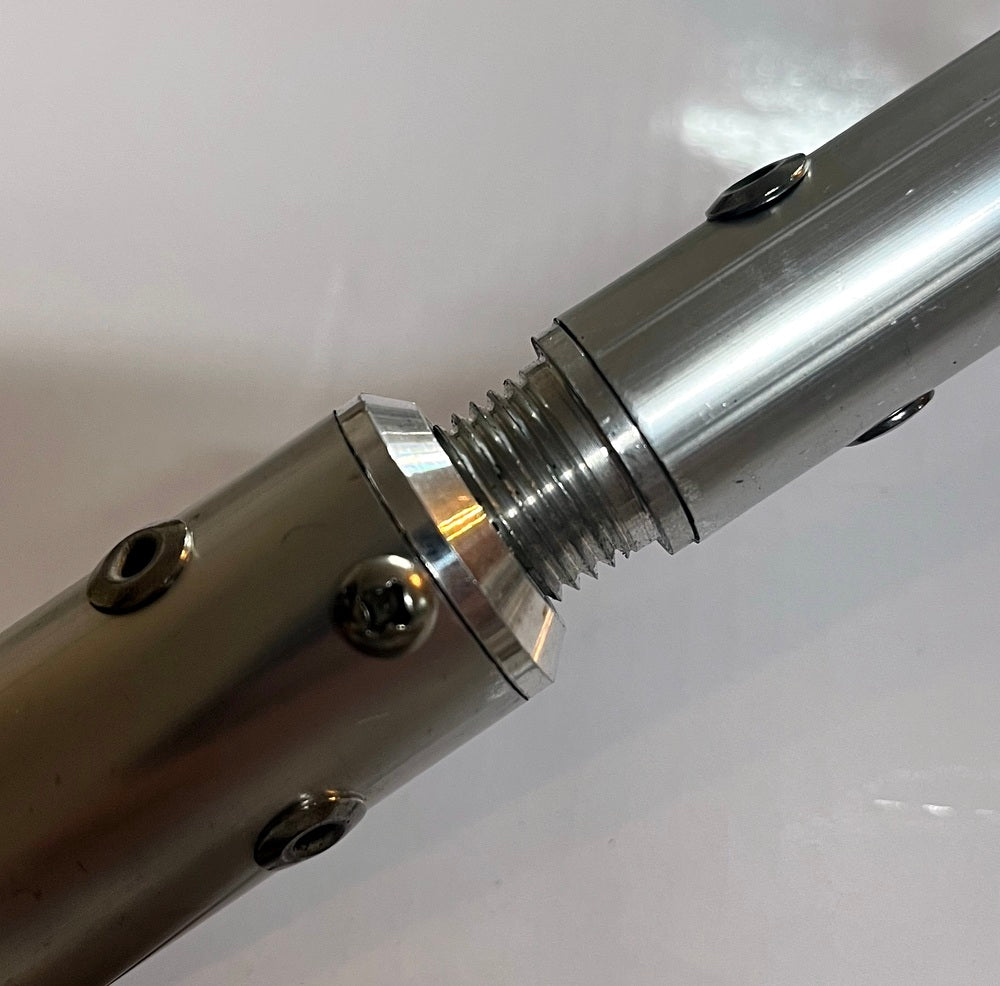

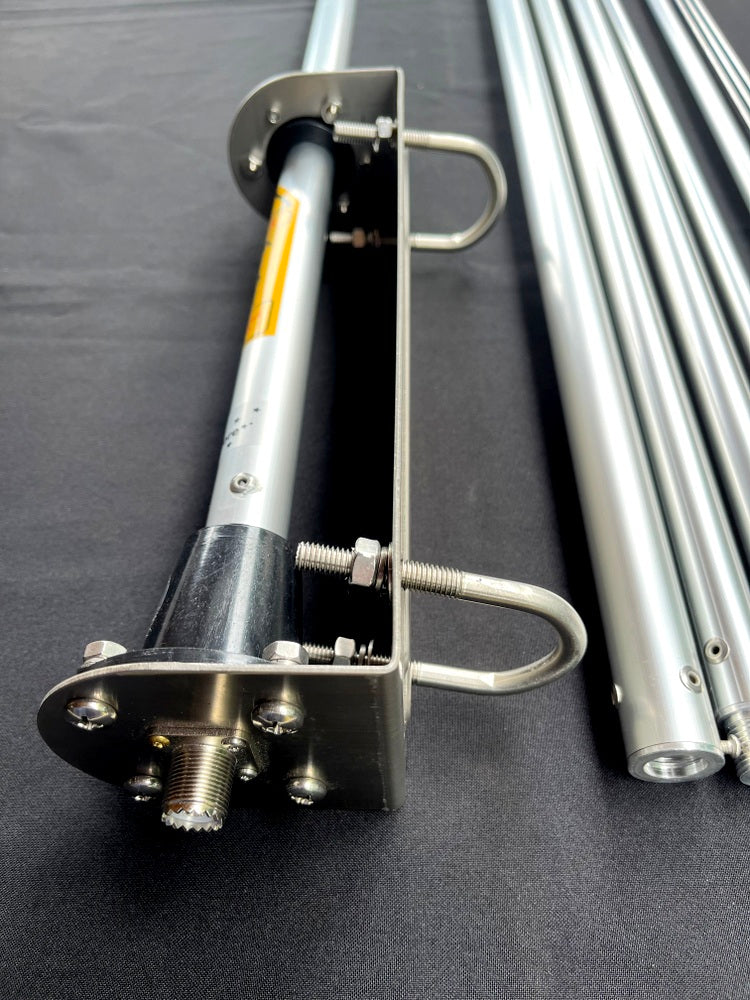

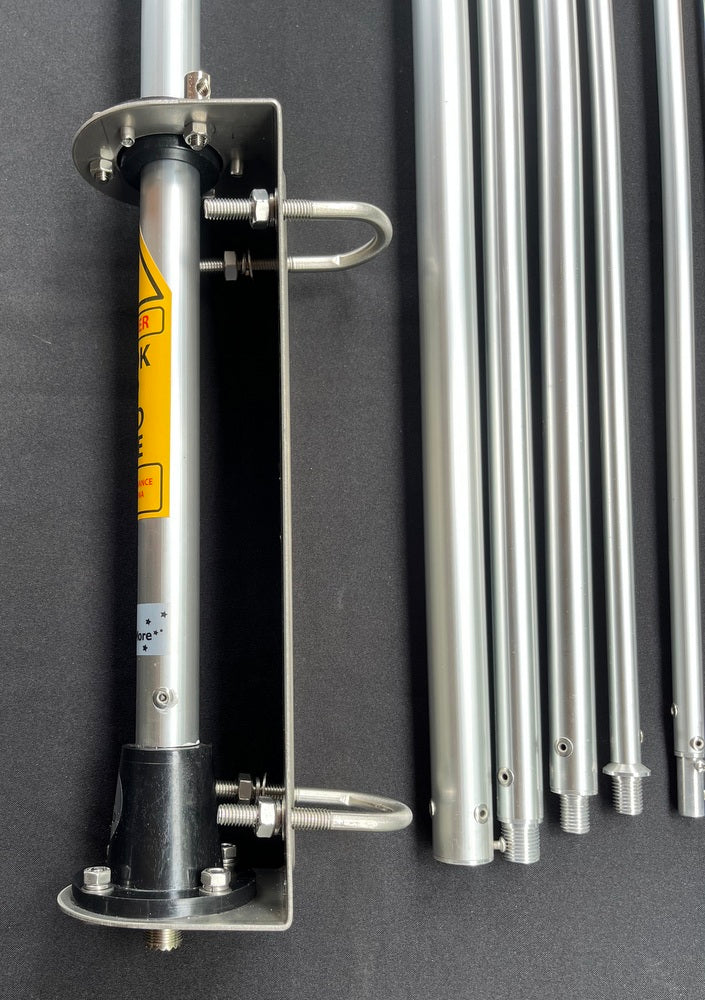

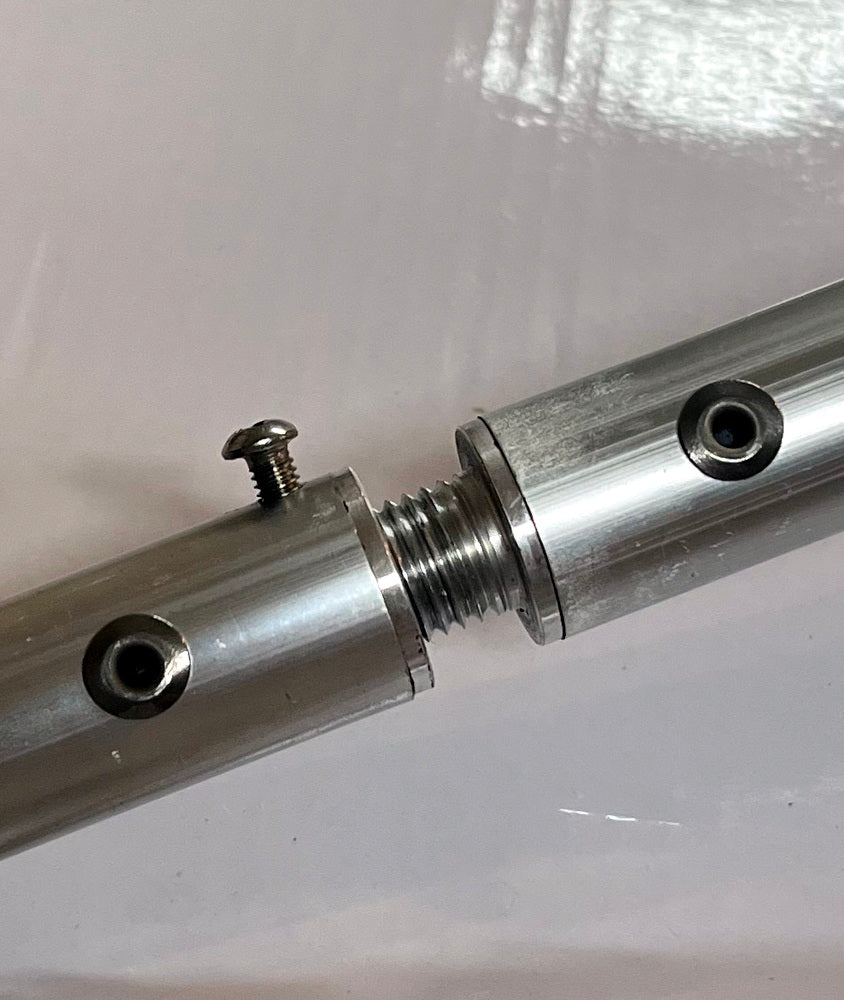

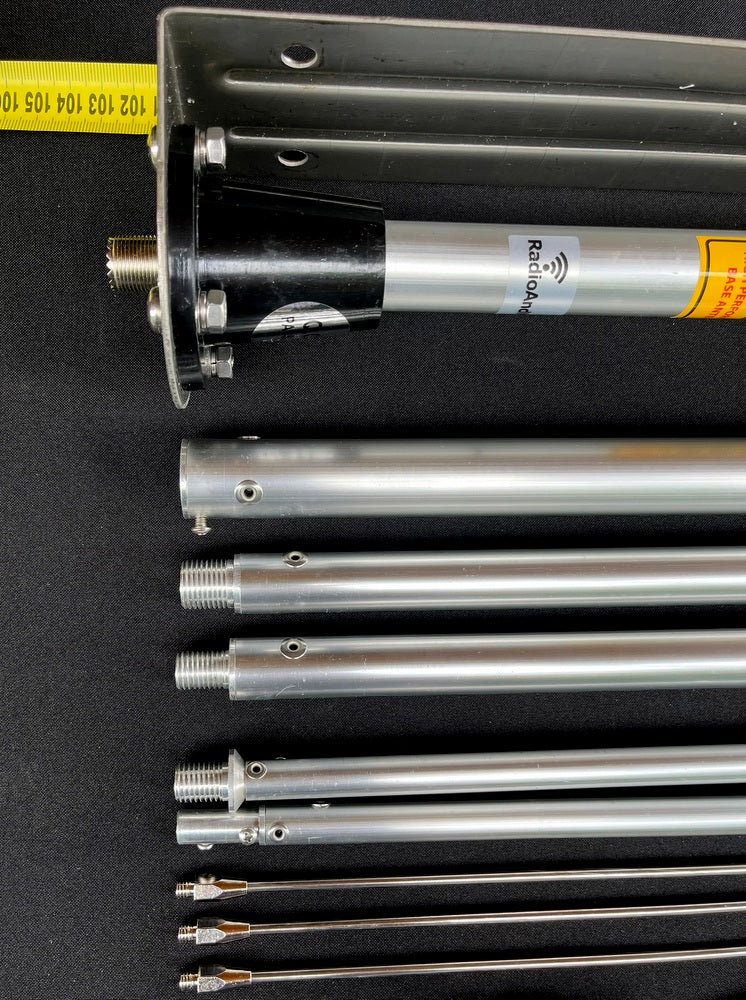

The antenna comes in 6 x Sections for easy setup and transport and can fit in any car

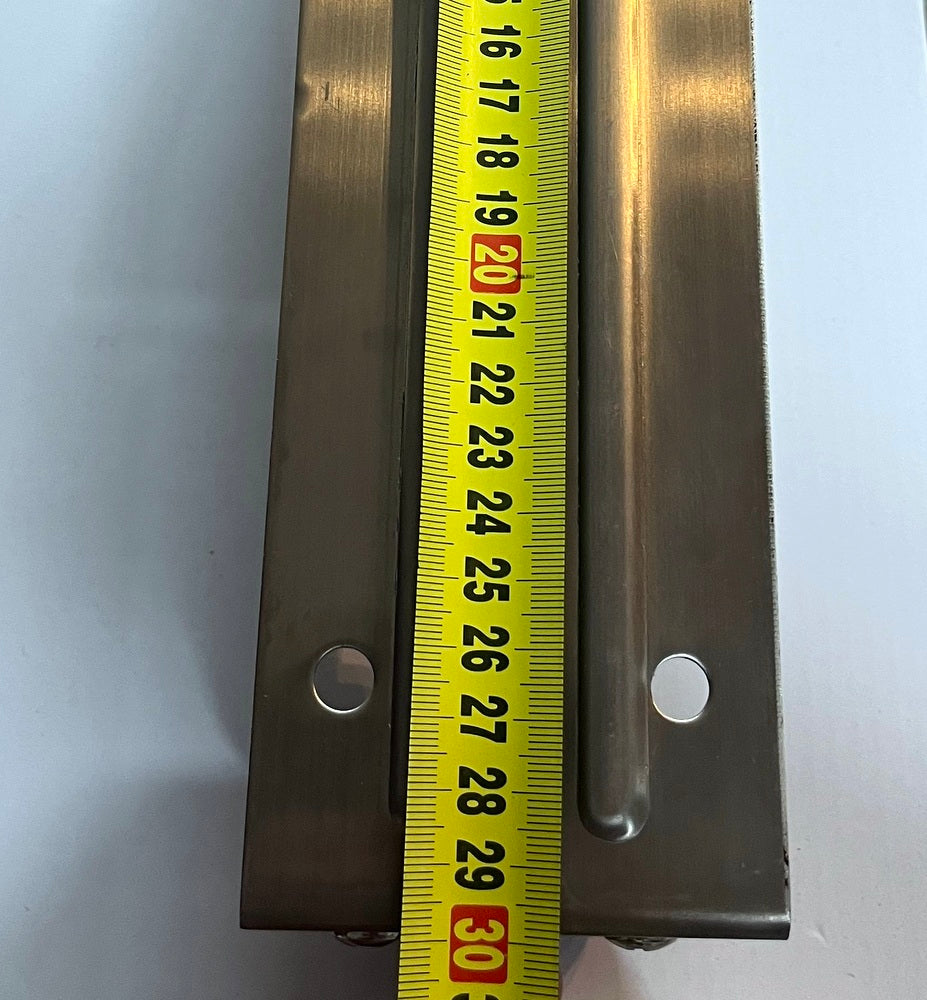

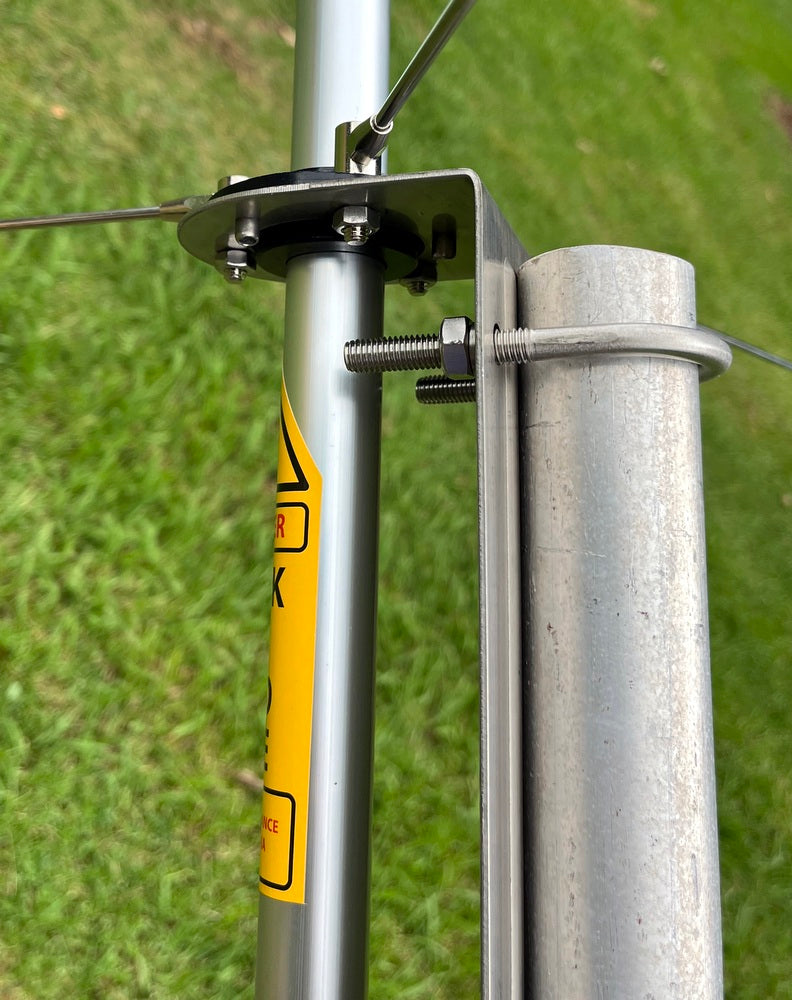

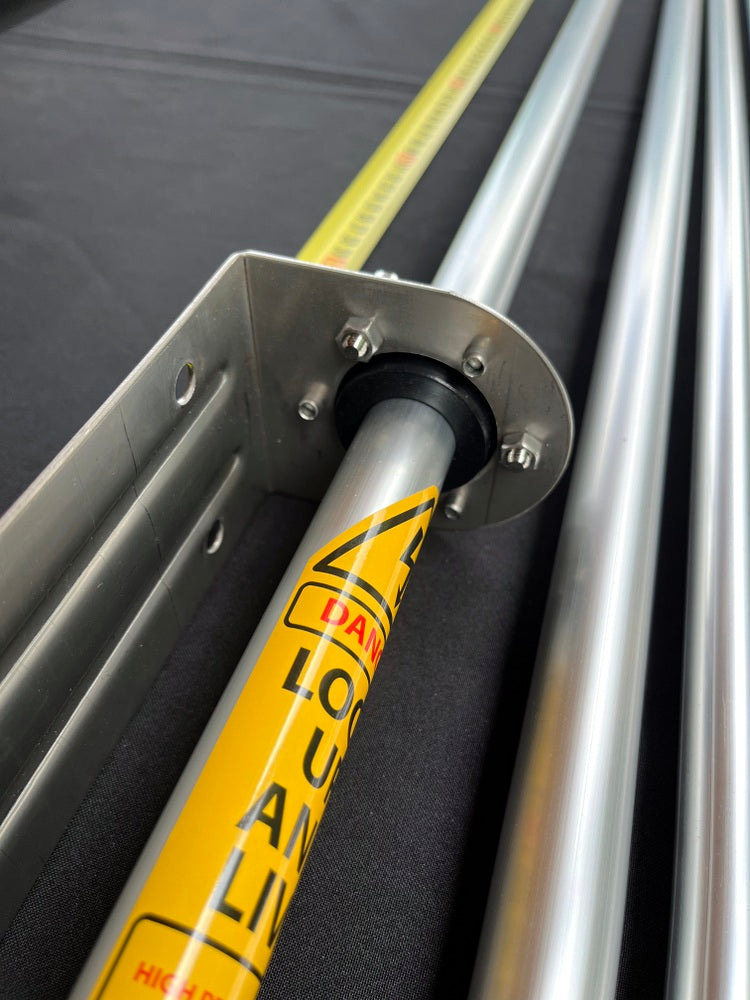

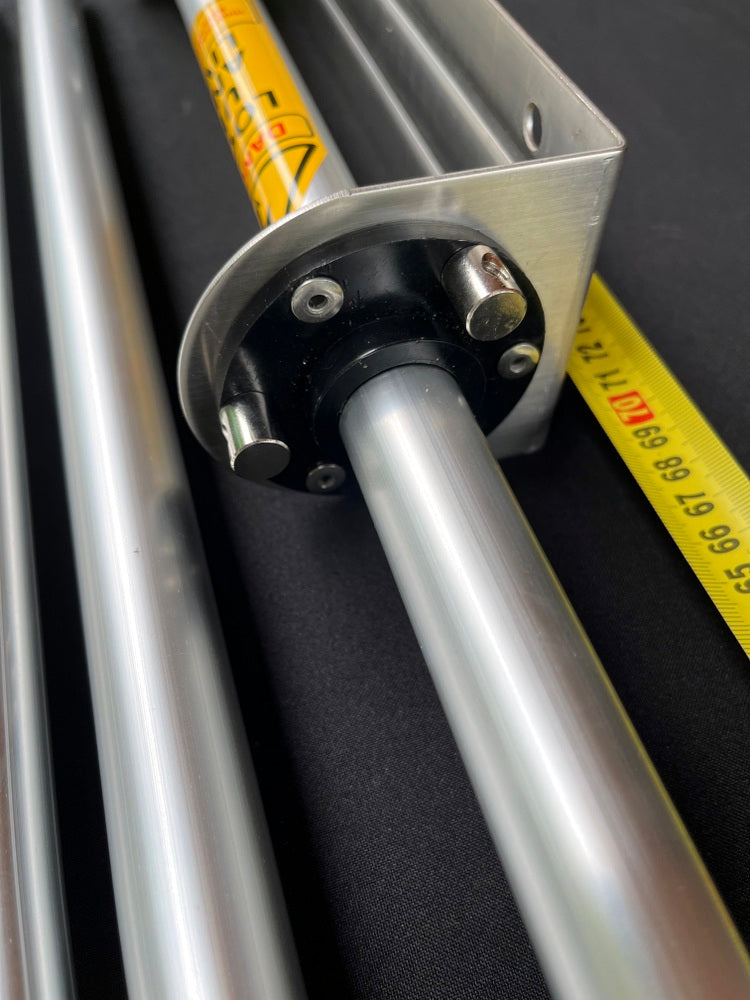

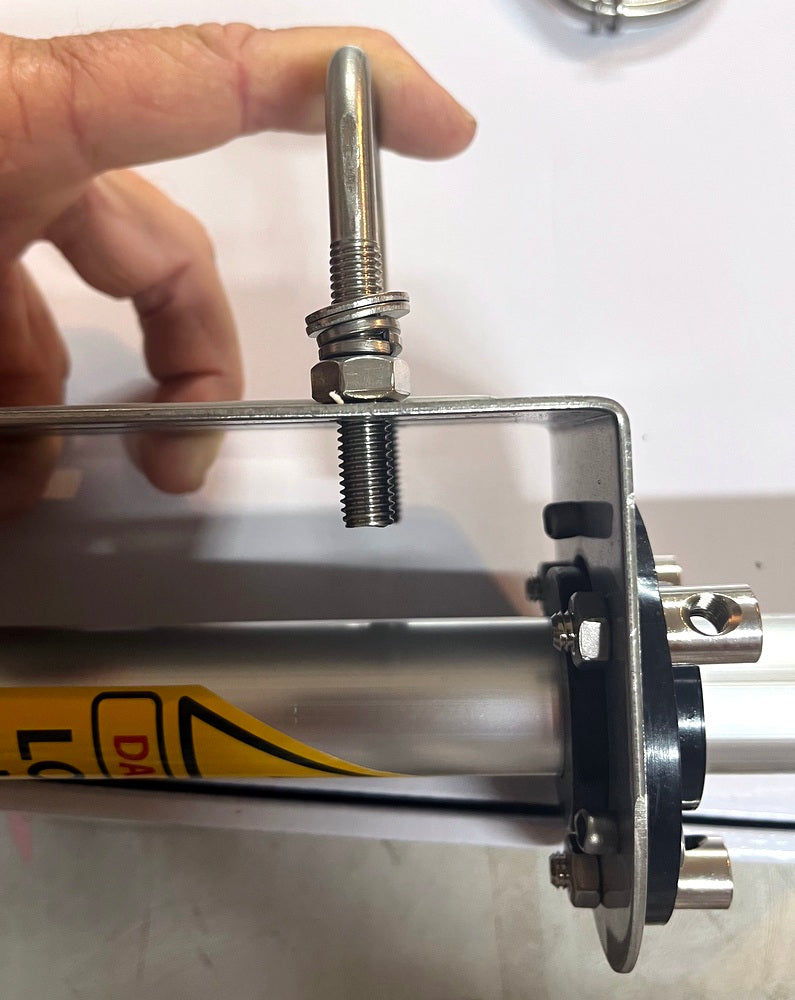

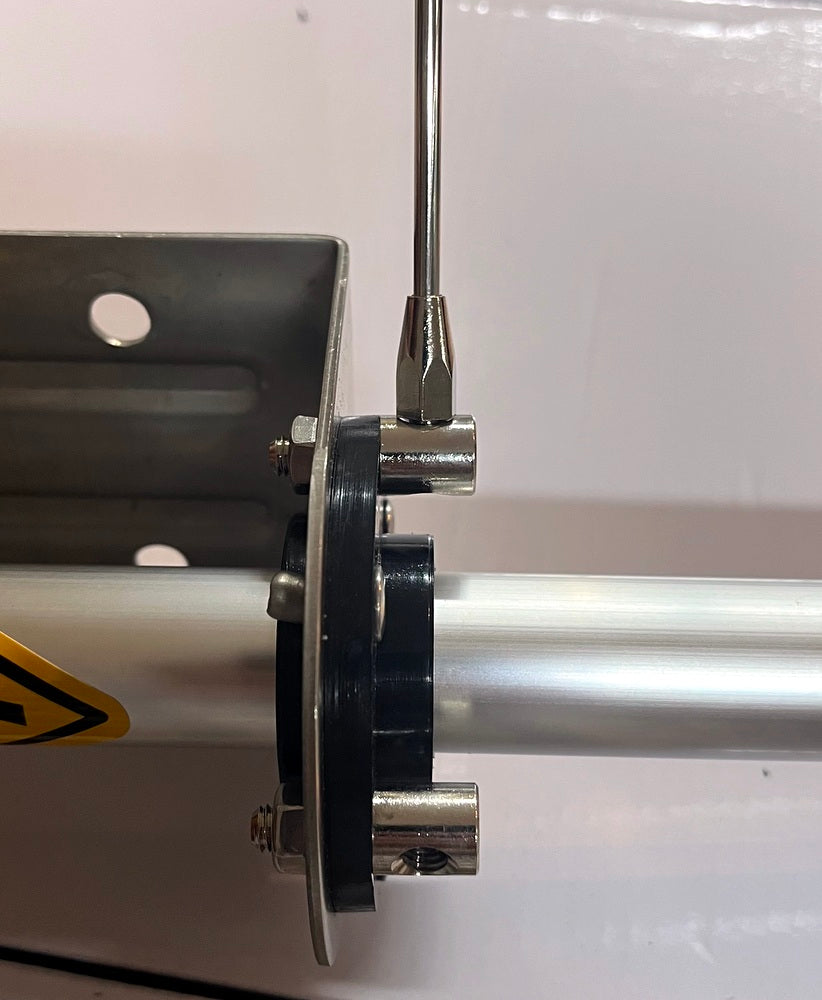

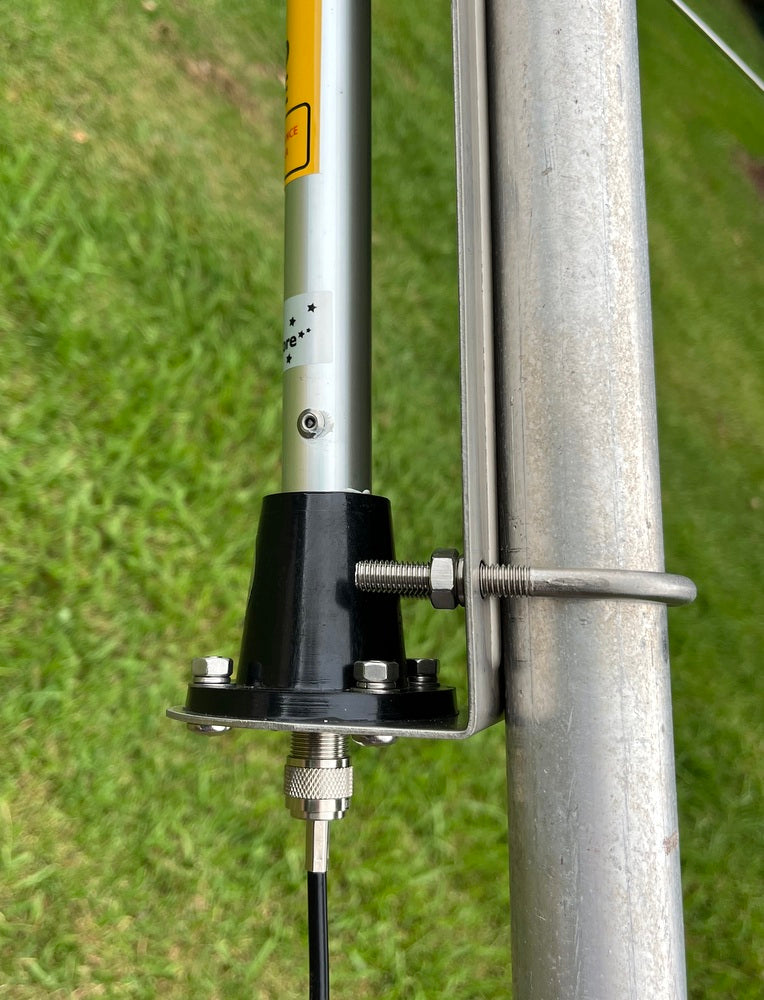

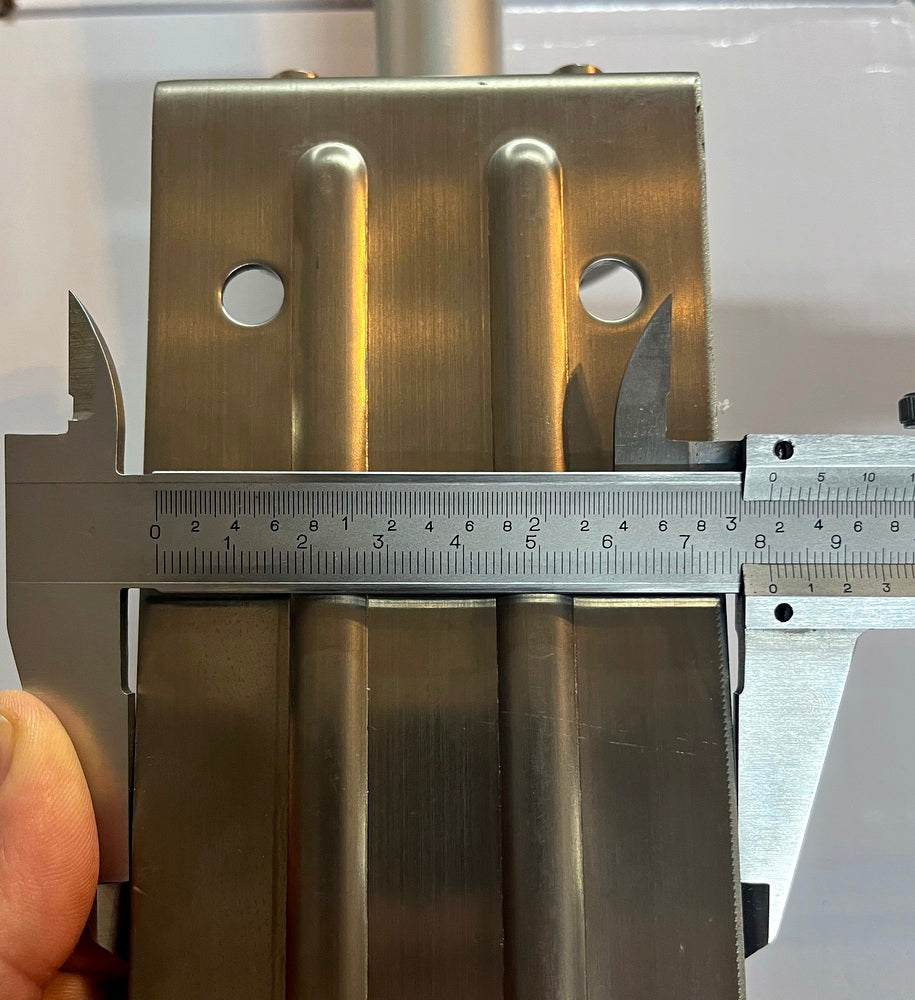

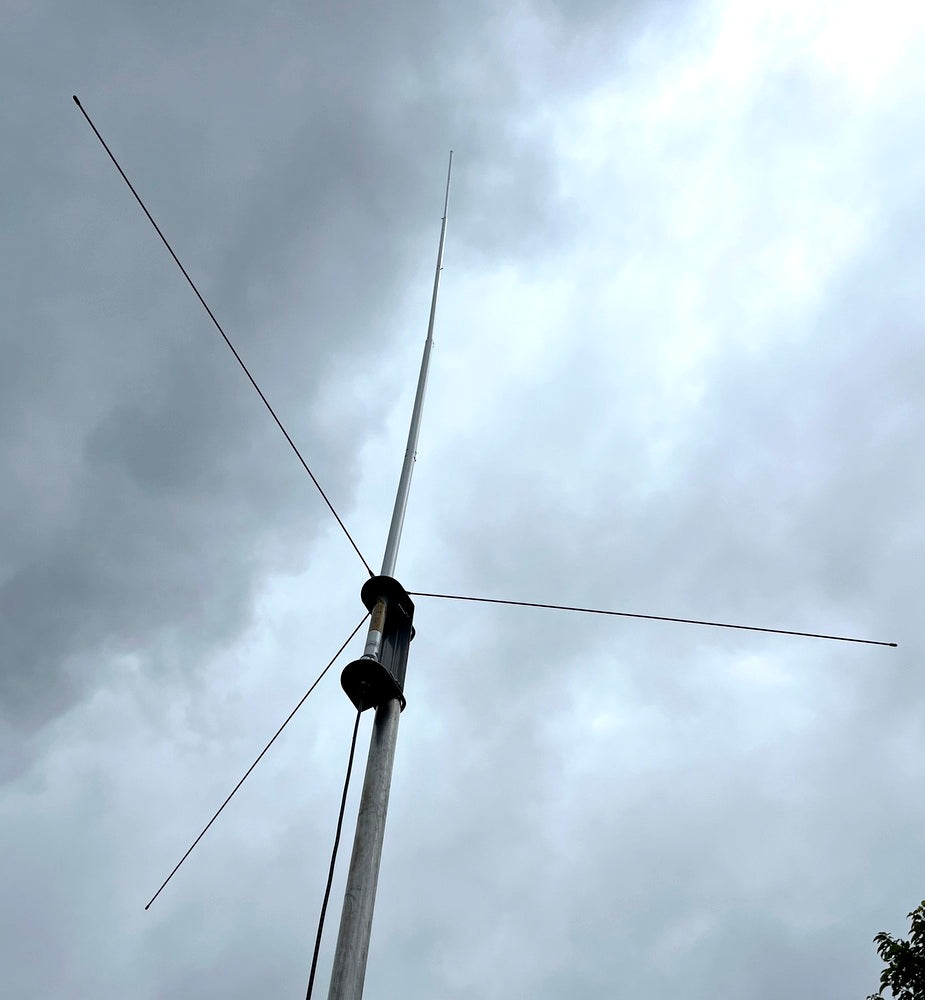

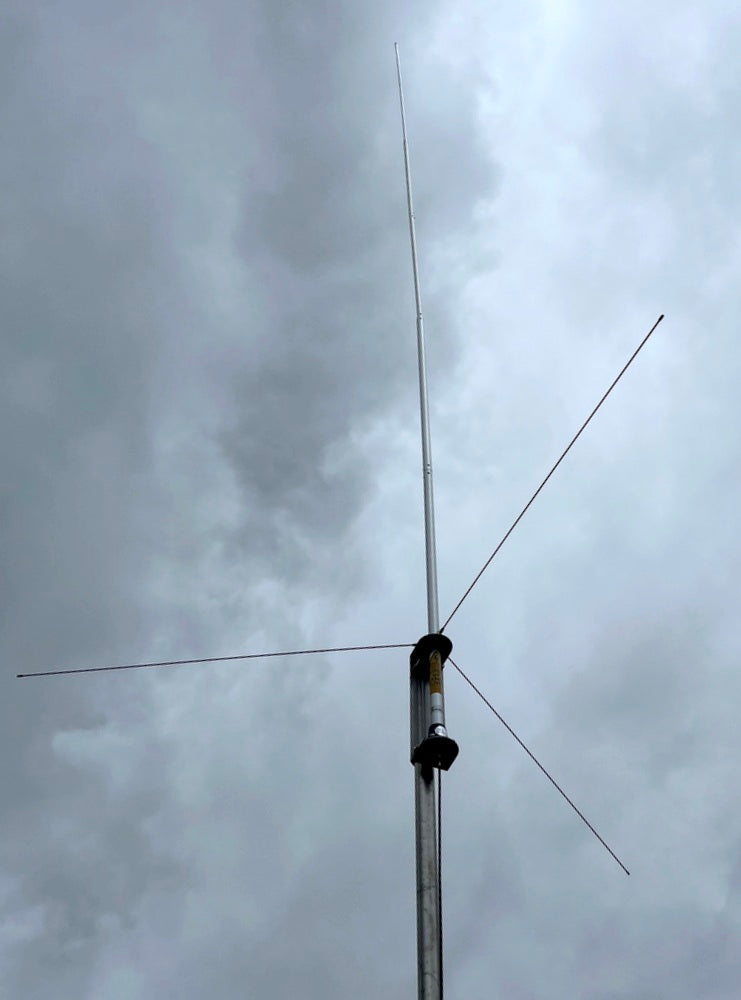

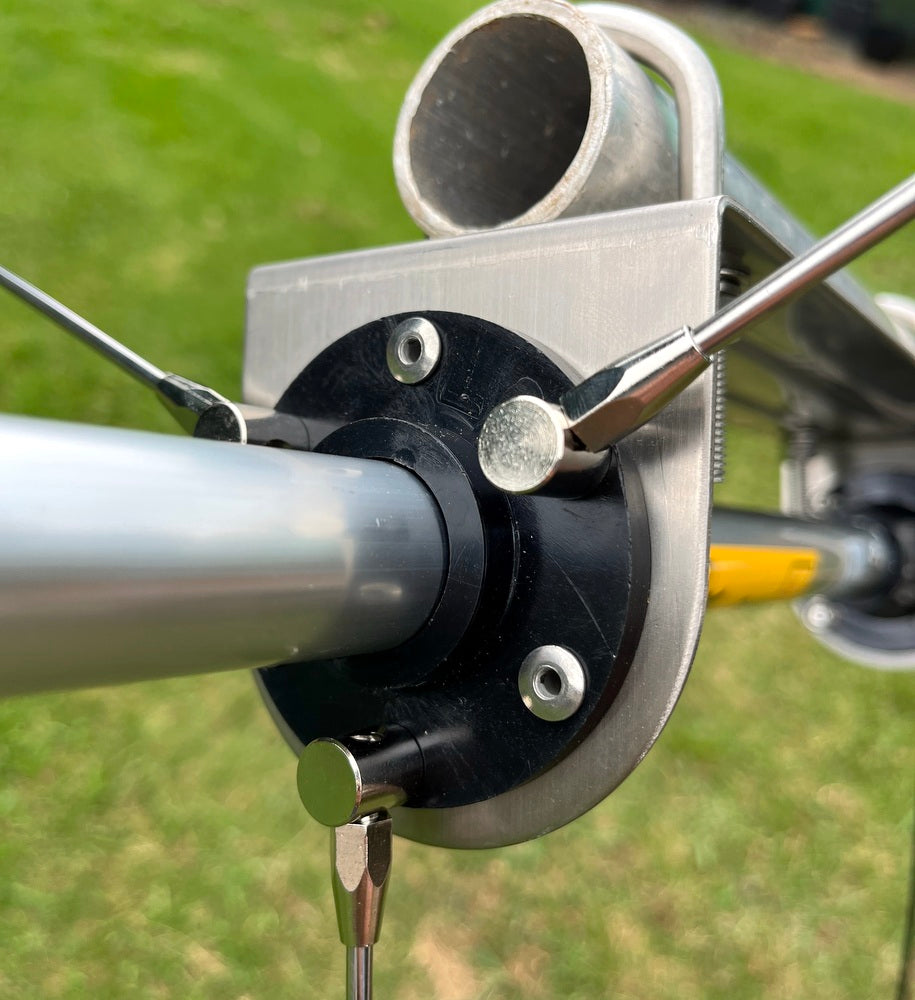

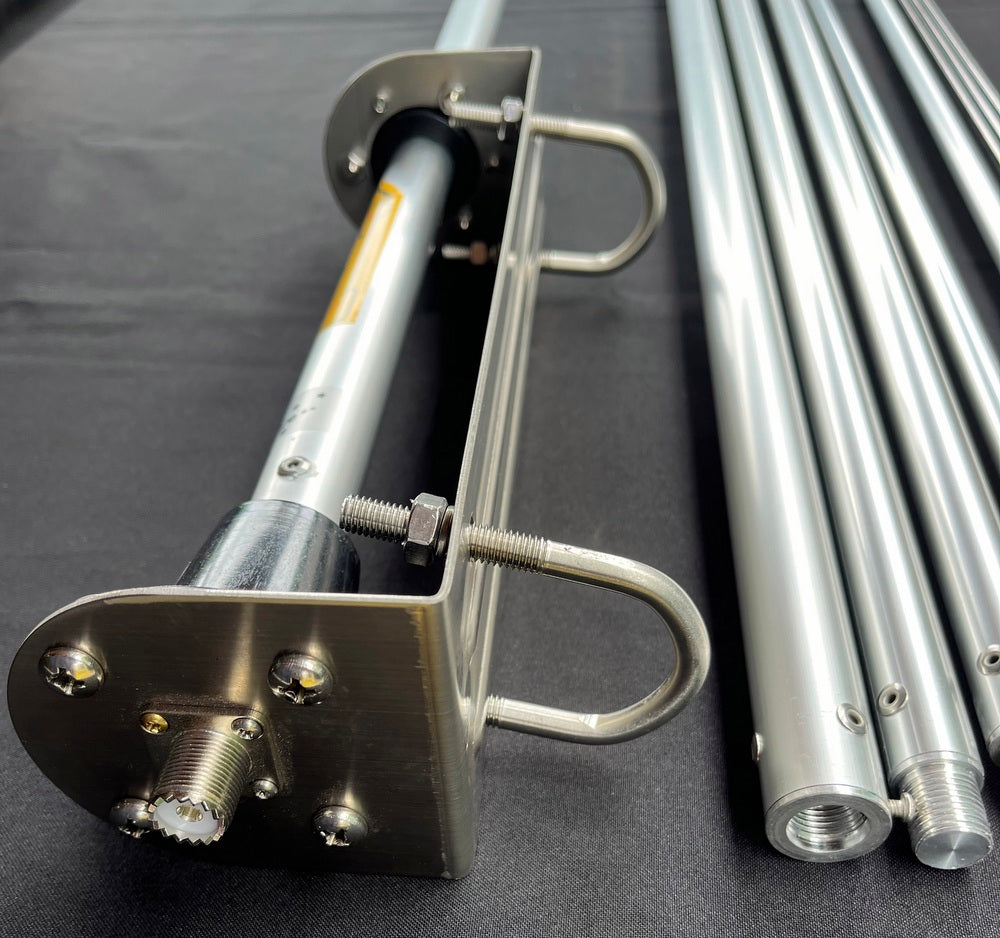

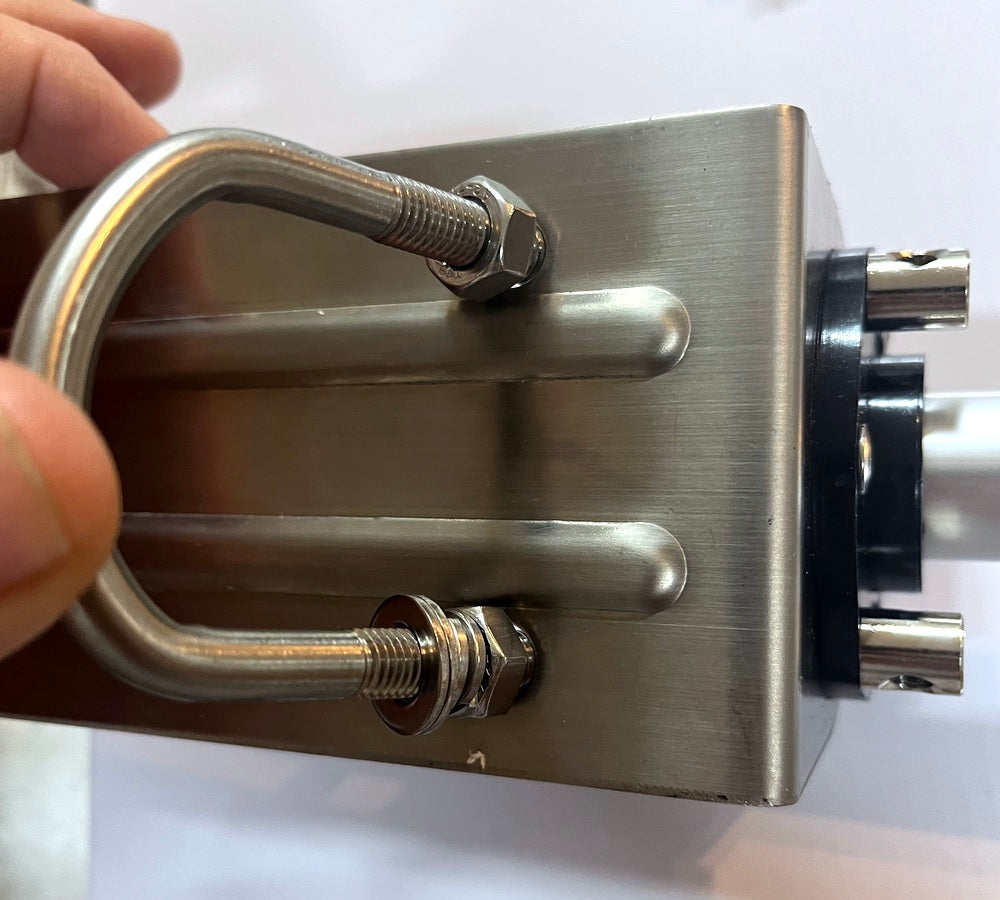

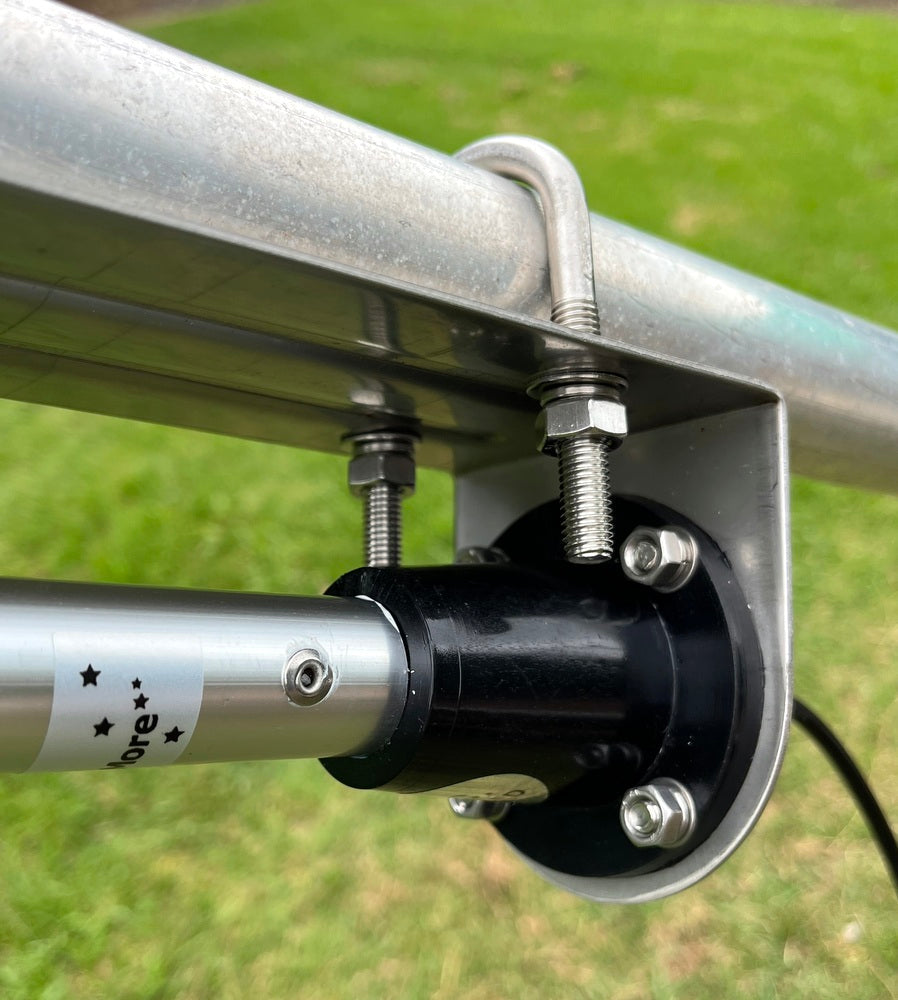

Comes with mounting brackets and 3 x radial ground plan kit! Ready To Install to your mast/pole

Shipping Notice

Please note that this product may be shipped via courier due to its size and/or weight.
A physical delivery address, email, and phone number are required for dispatch.

• This item cannot be combined with other products under the same shipping cost.

• If you live in a remote area or fall within the small percentage (approximately 5%) of locations across Australia that our couriers are unable to service, we will contact you directly.

• In cases where delivery cannot be arranged, a full refund will be issued.

Thank you for your understanding and cooperation.

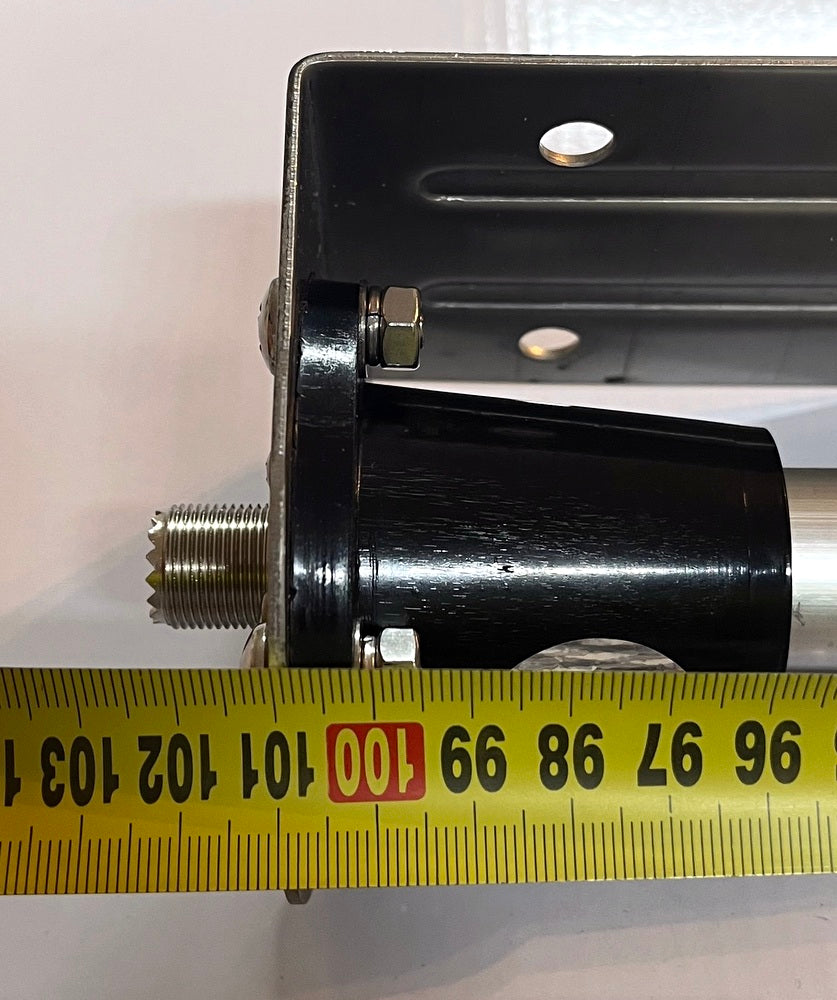

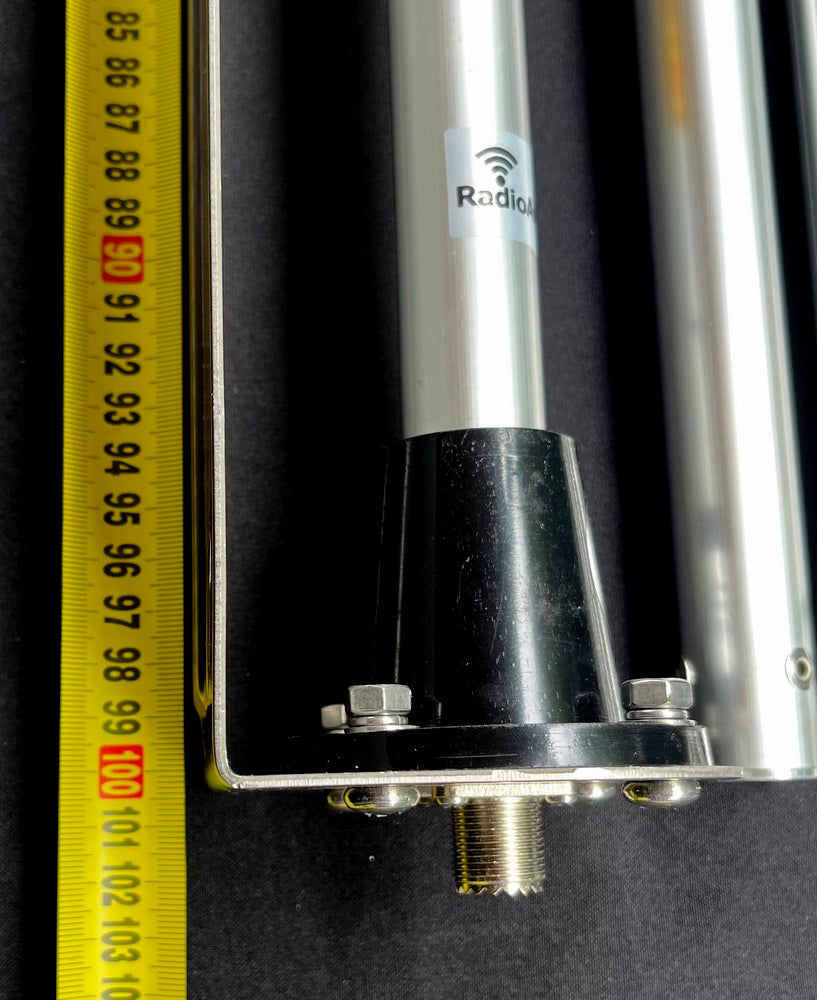

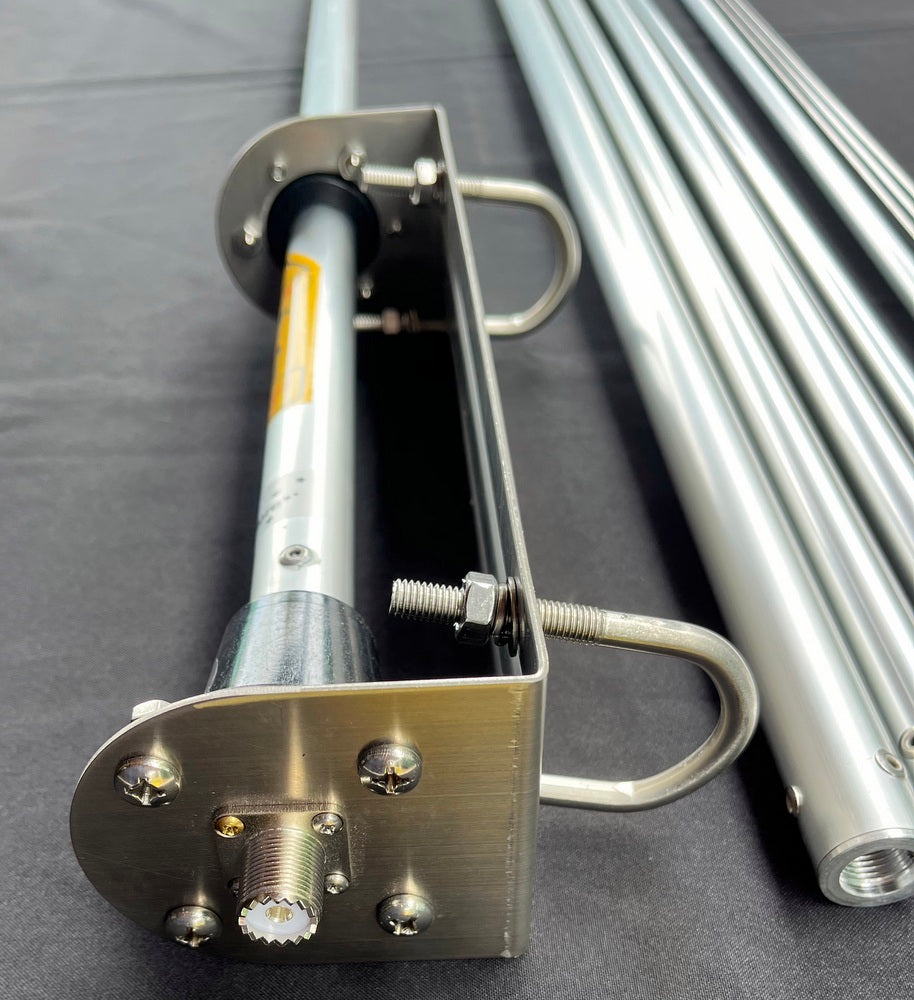

Fitted with a standard SO239 Standard 27Mhz Marine and 27Mhz CB Connector (Female PL259 Type Connector as in the photos)

• as in photos:

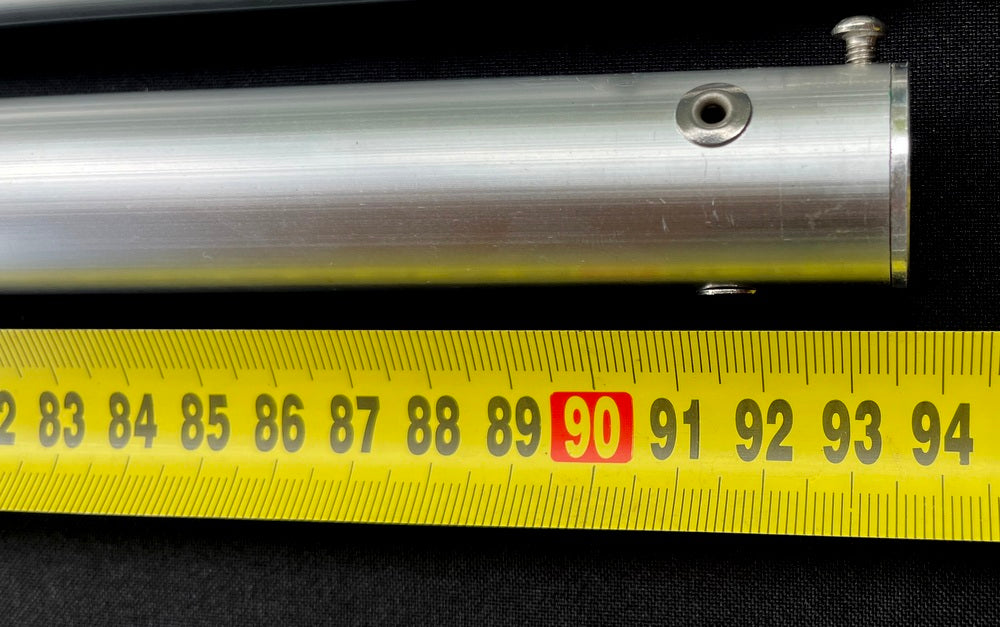

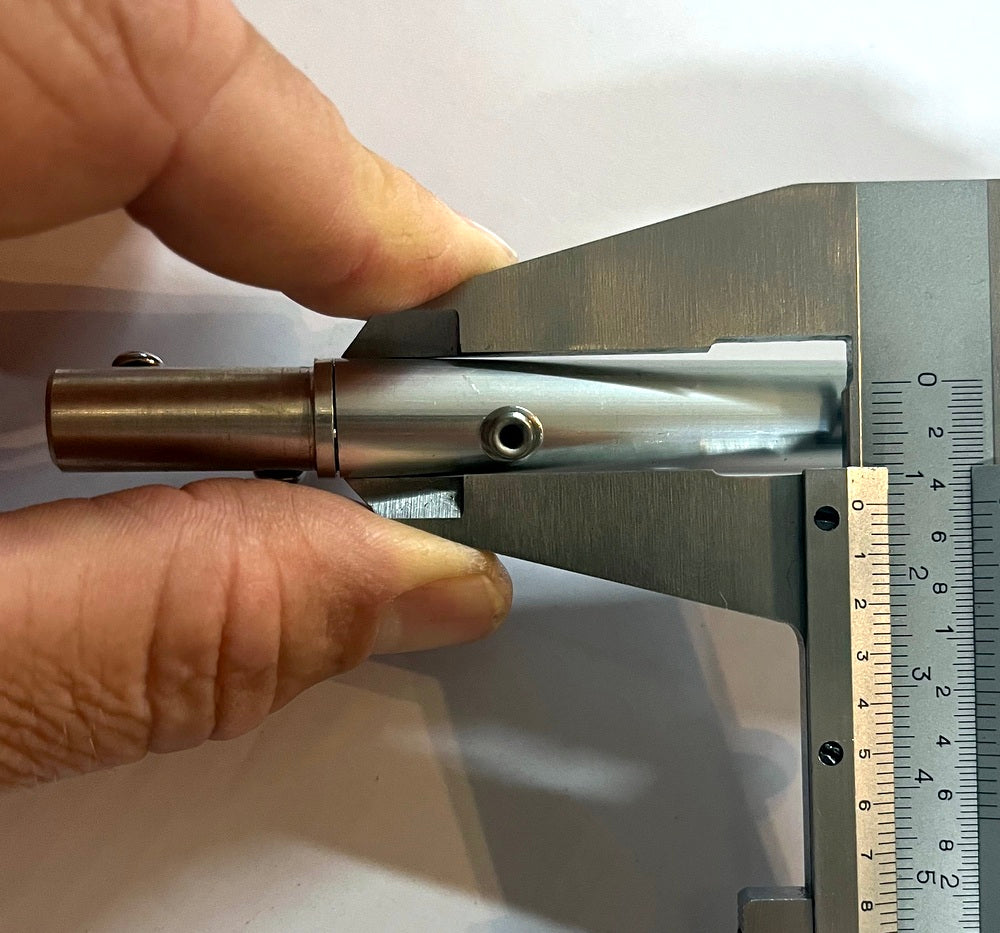

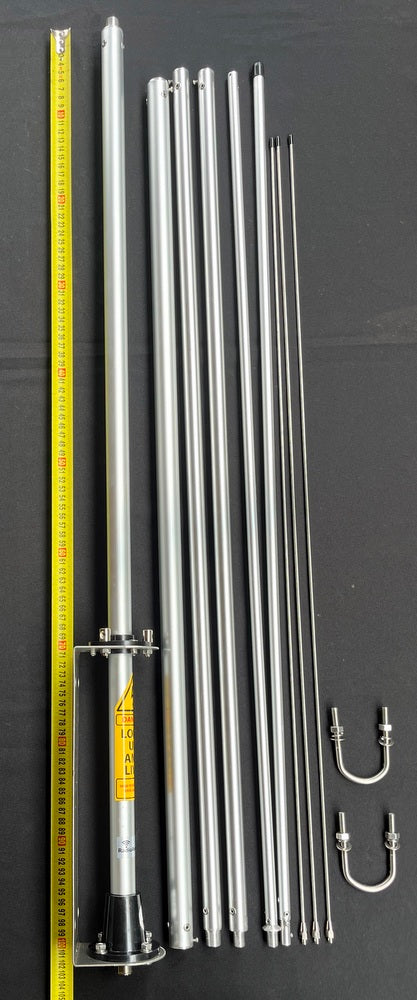

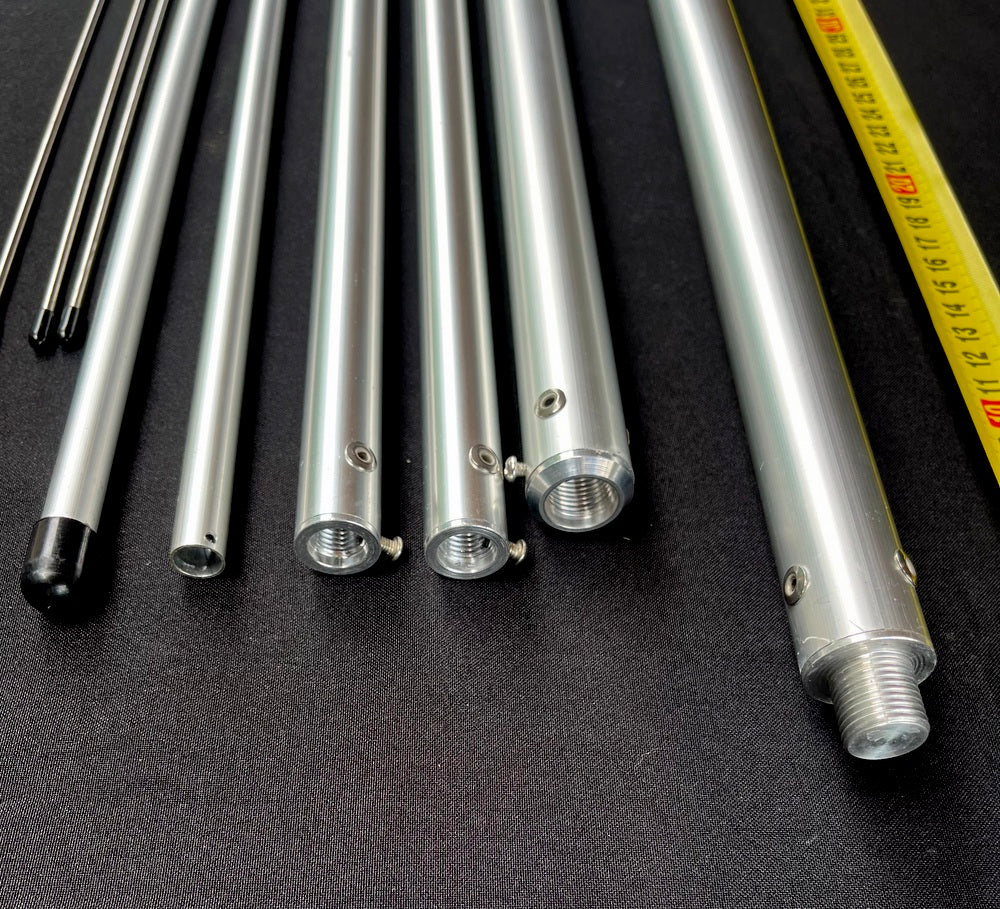

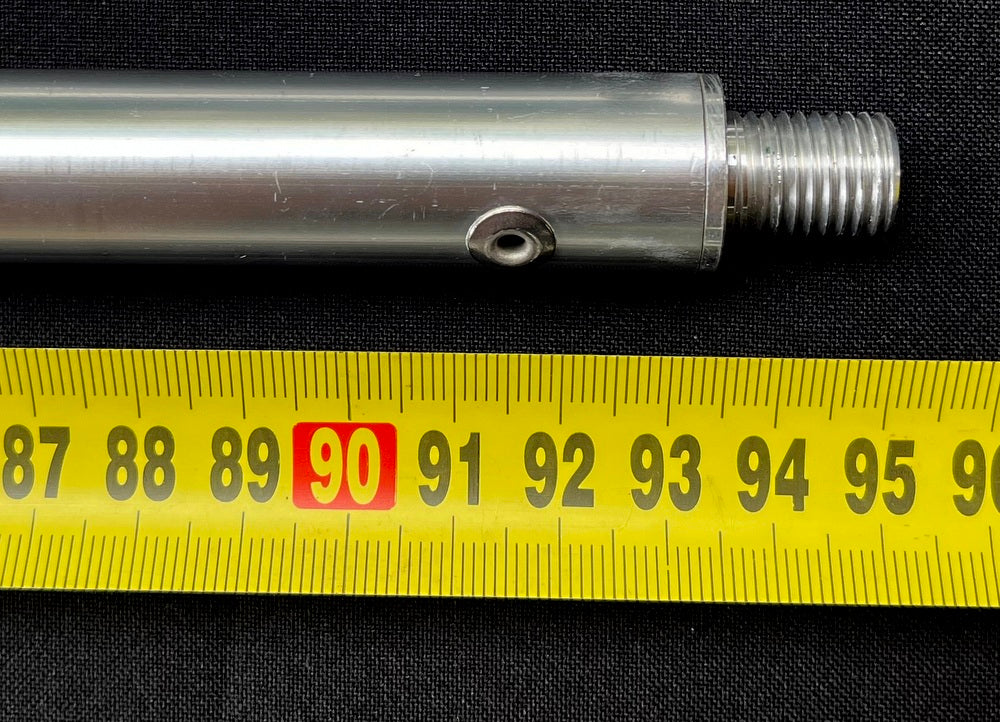

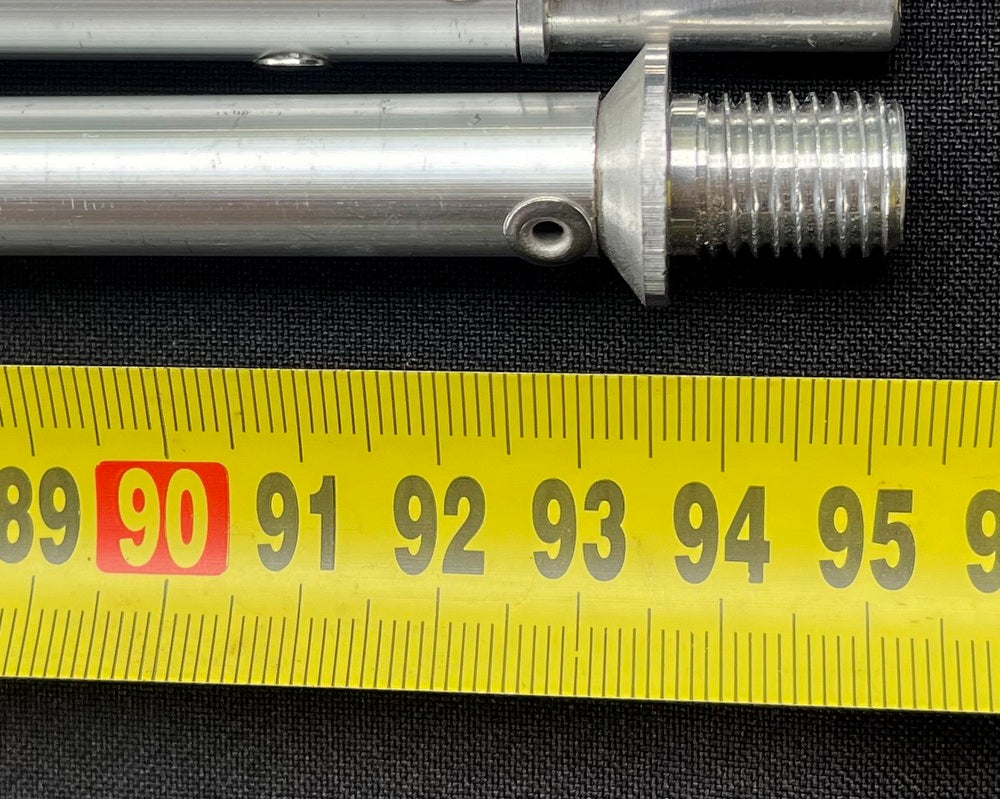

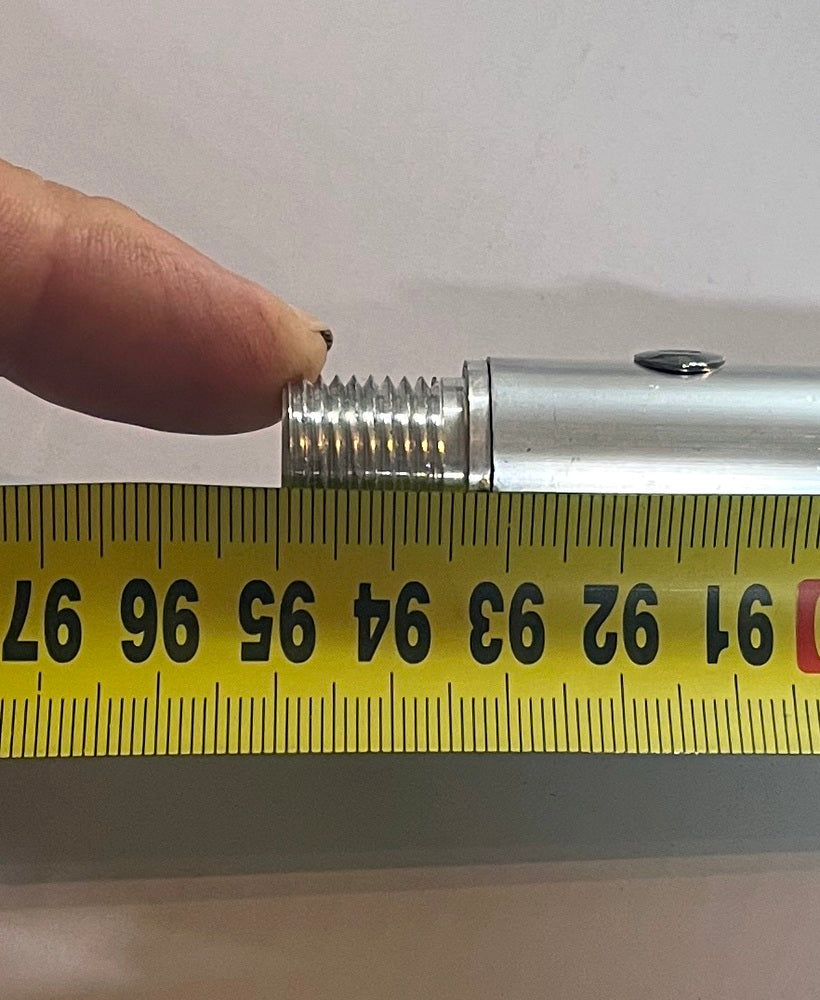

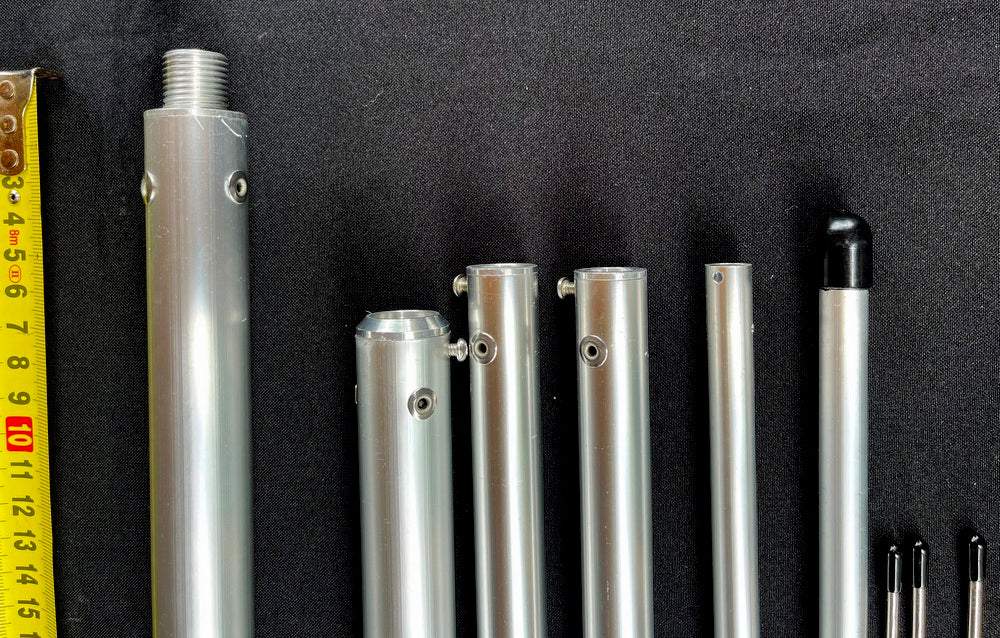

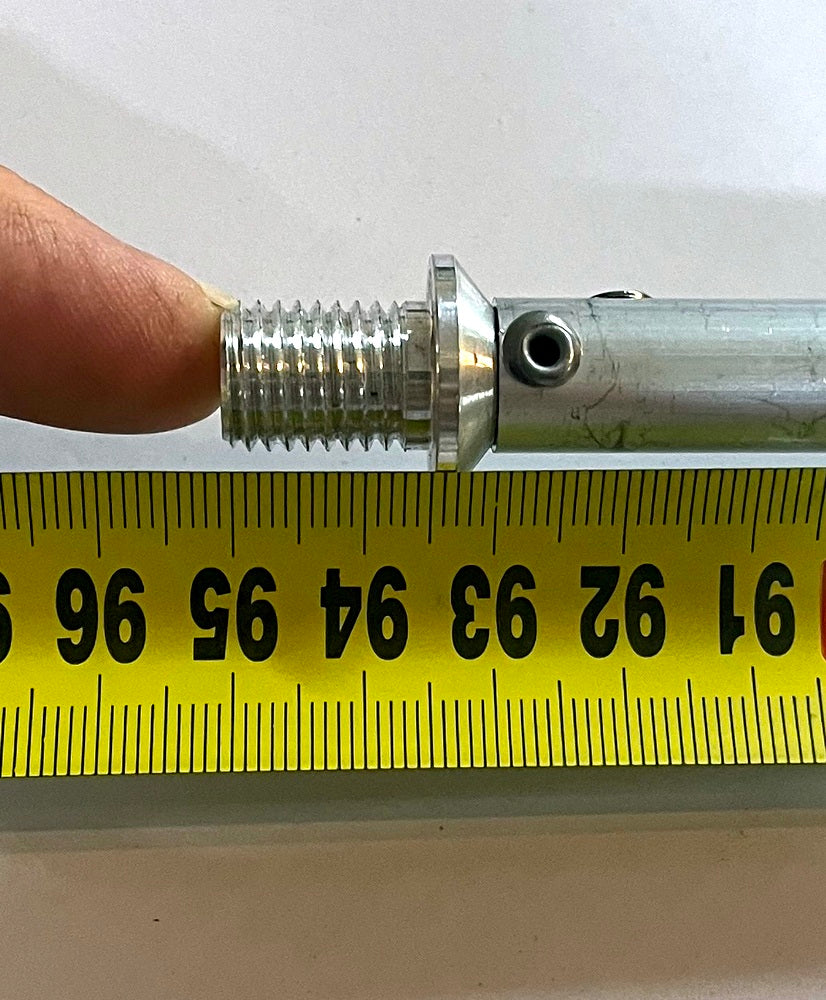

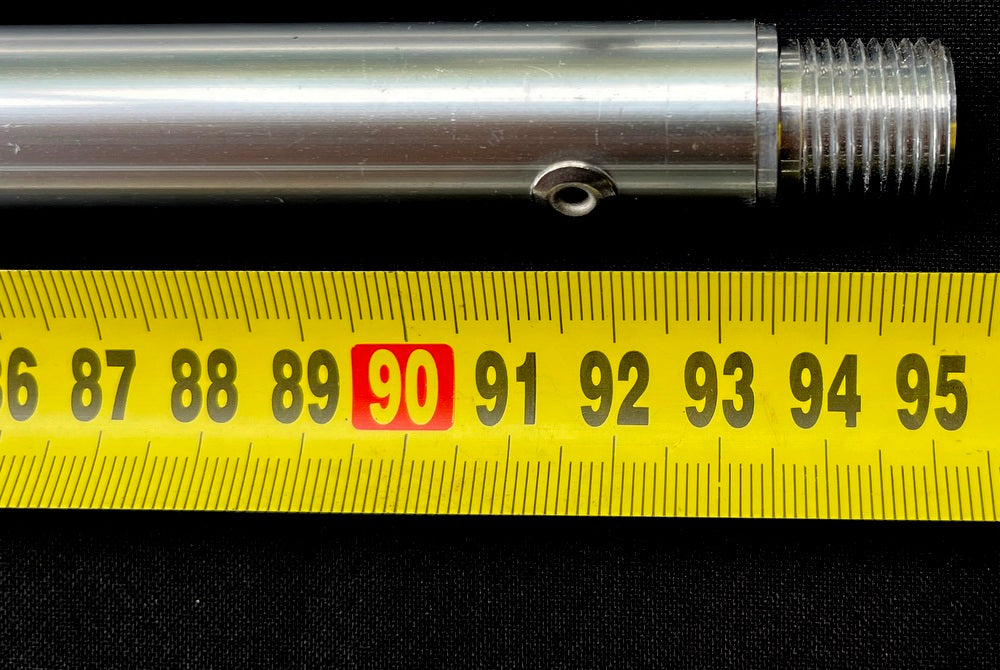

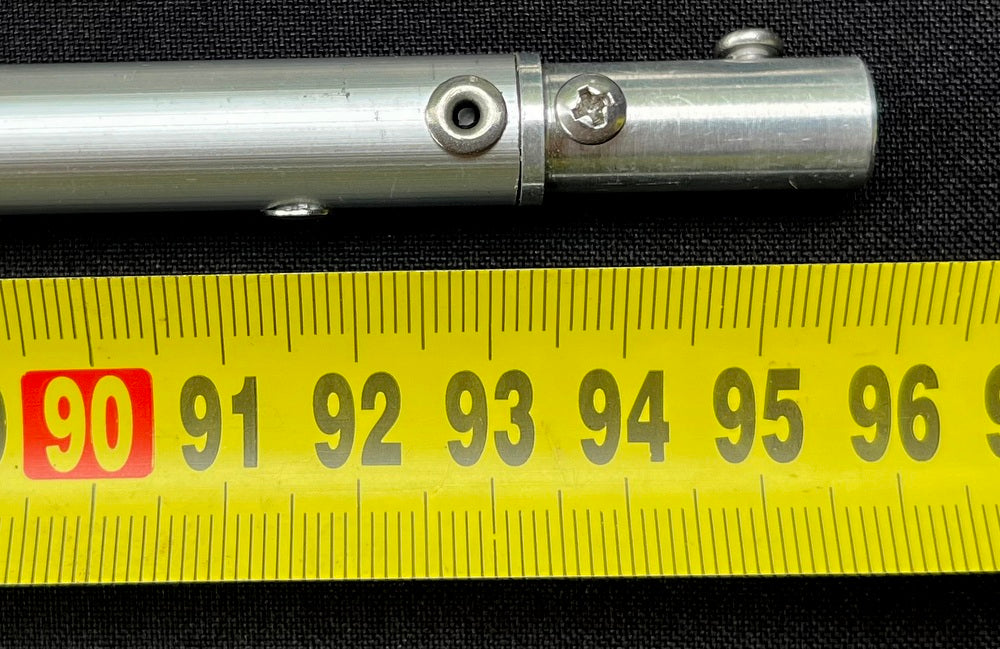

  Sizes Are Approximate -

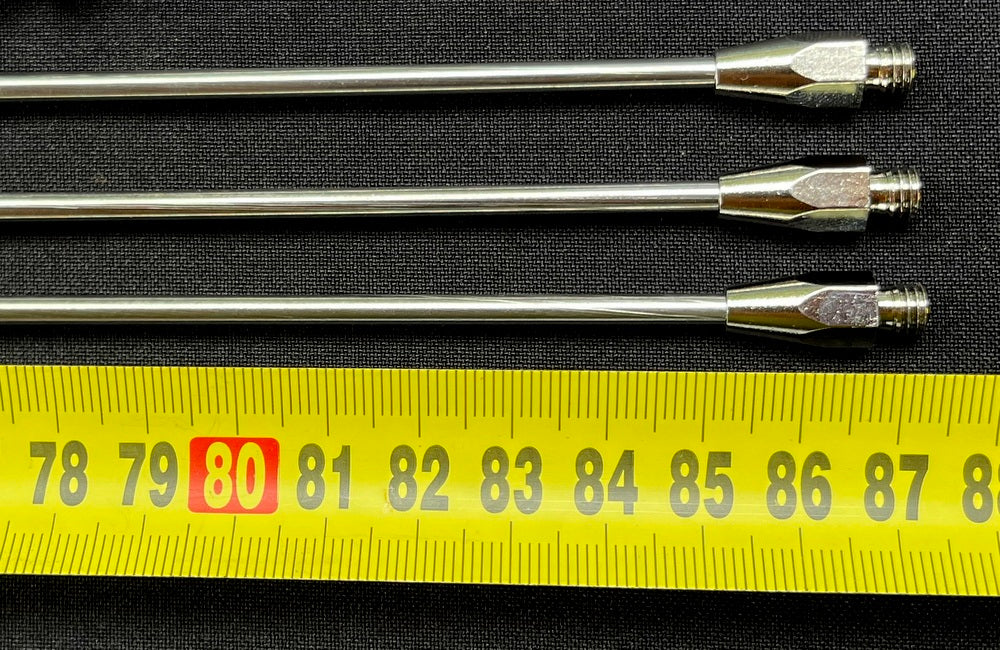

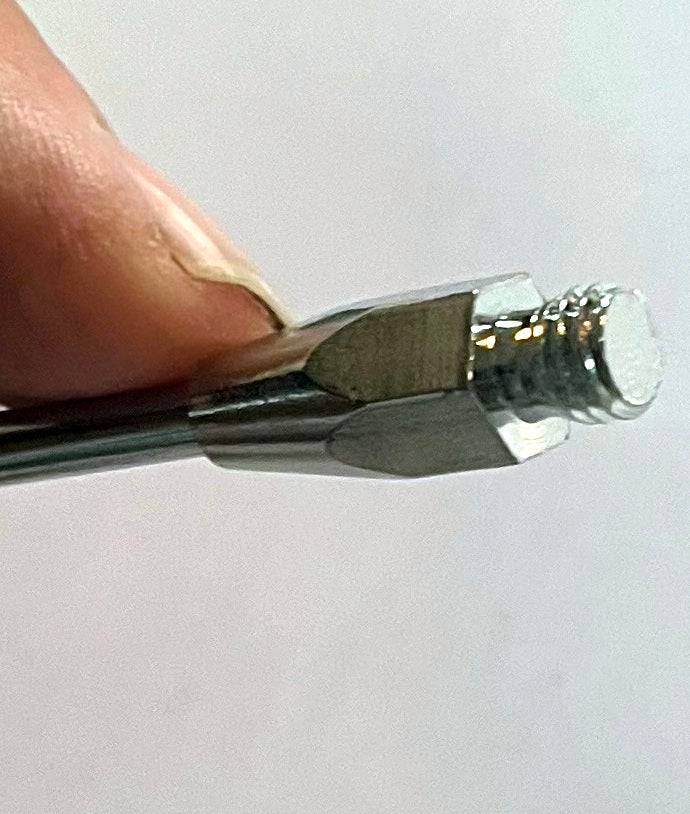

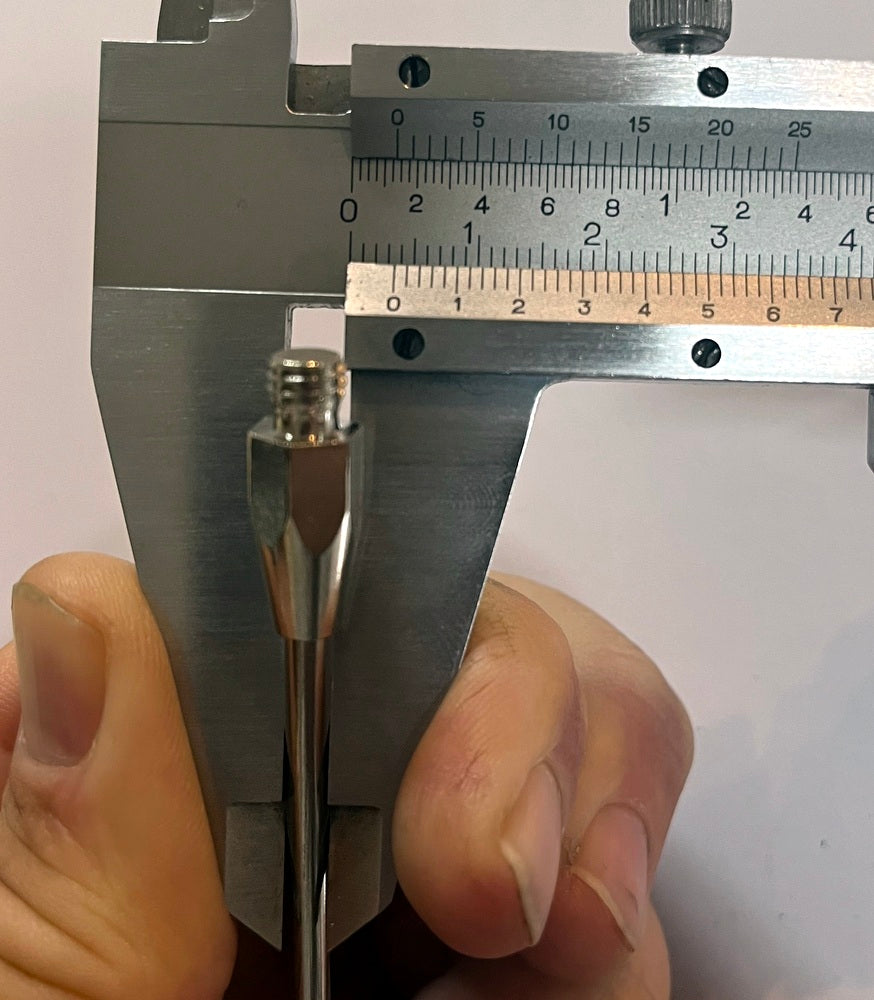

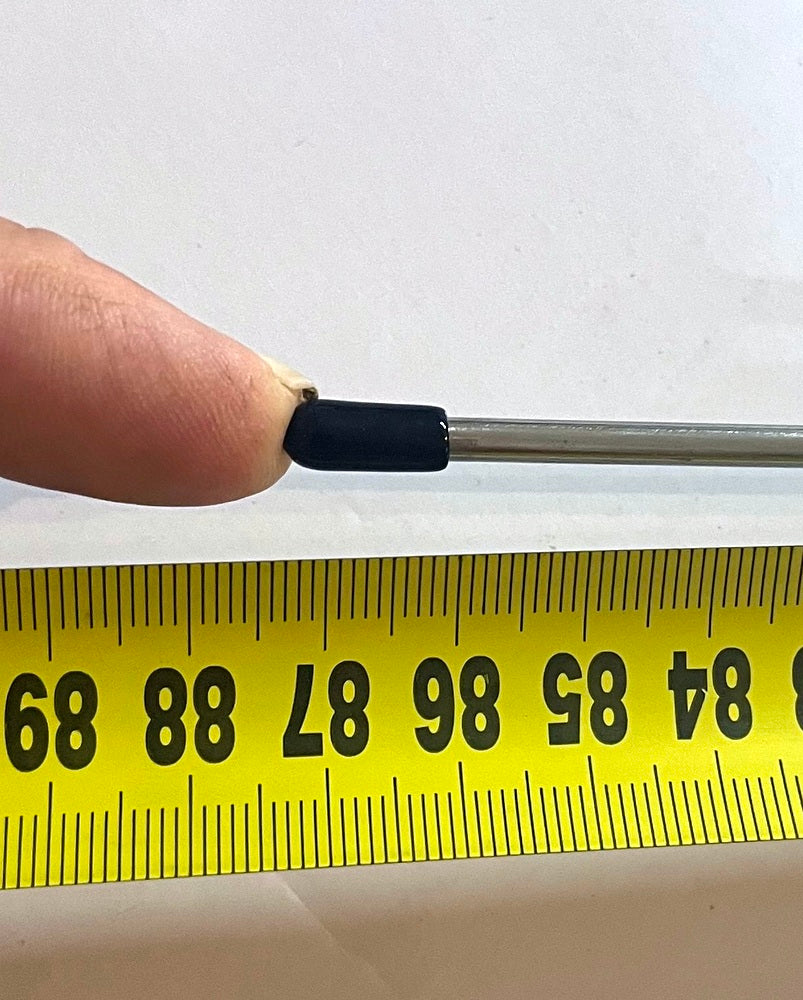

  • Ground Plane Kit each element is 870mm long, 4mm Stainless Whips x 3

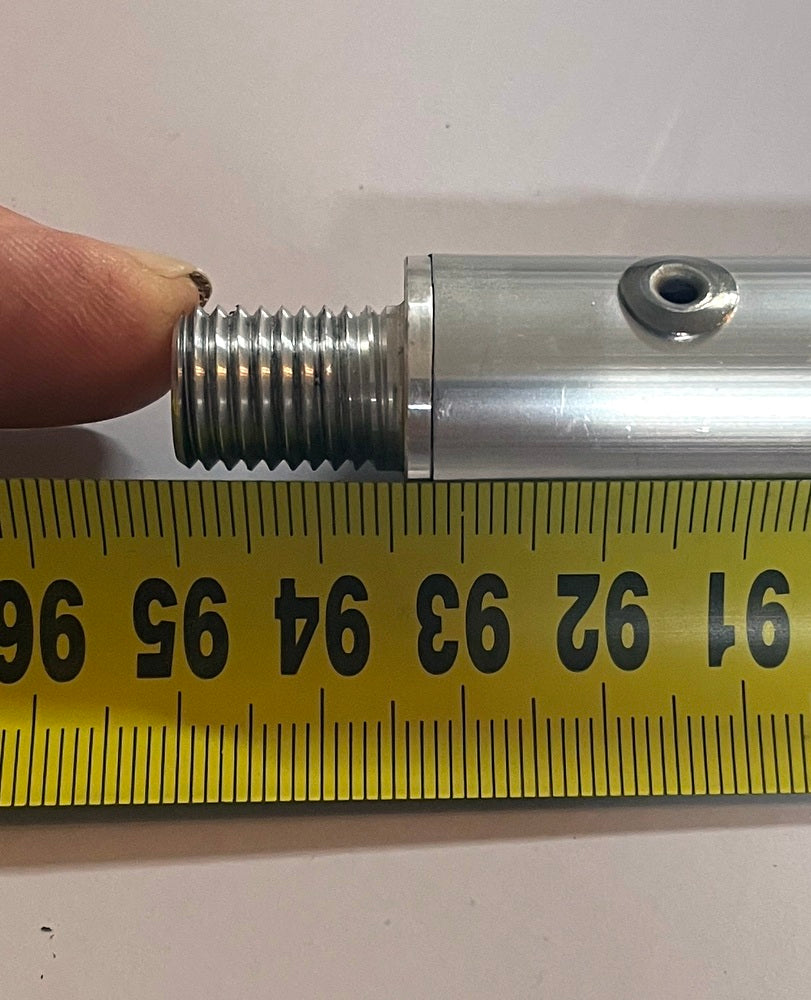

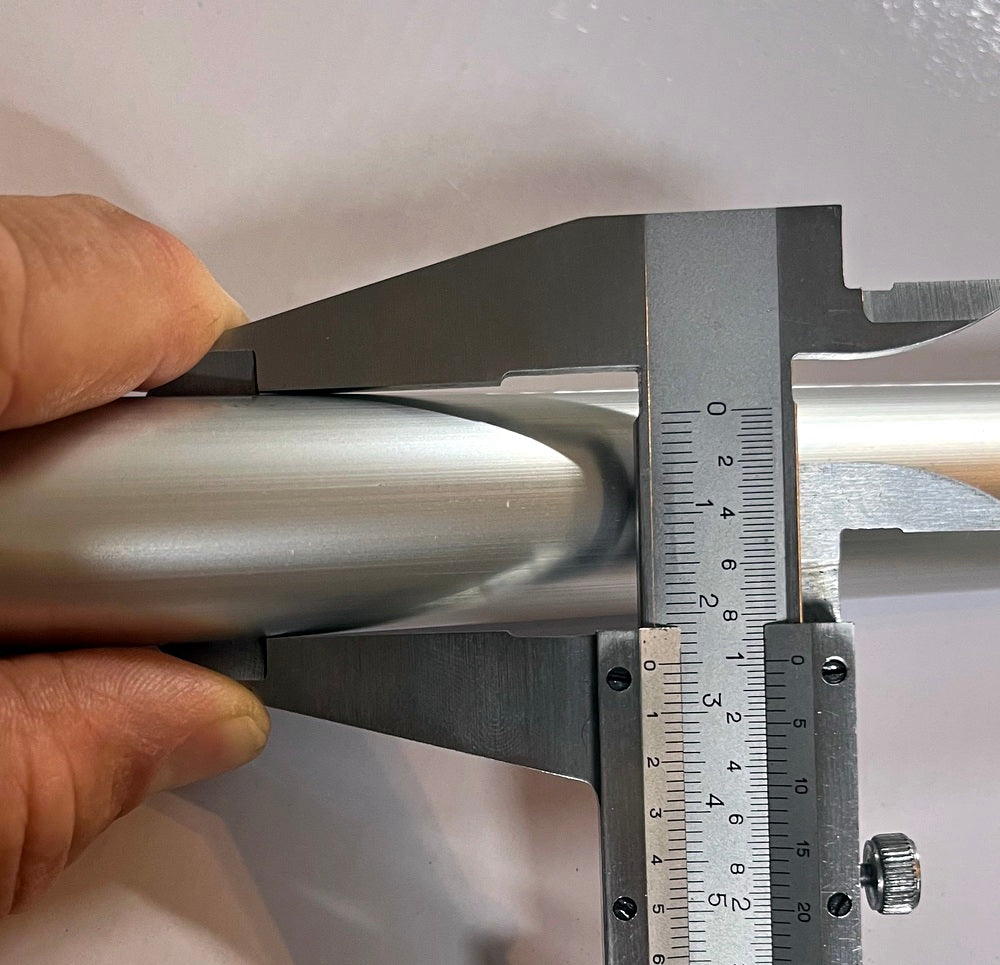

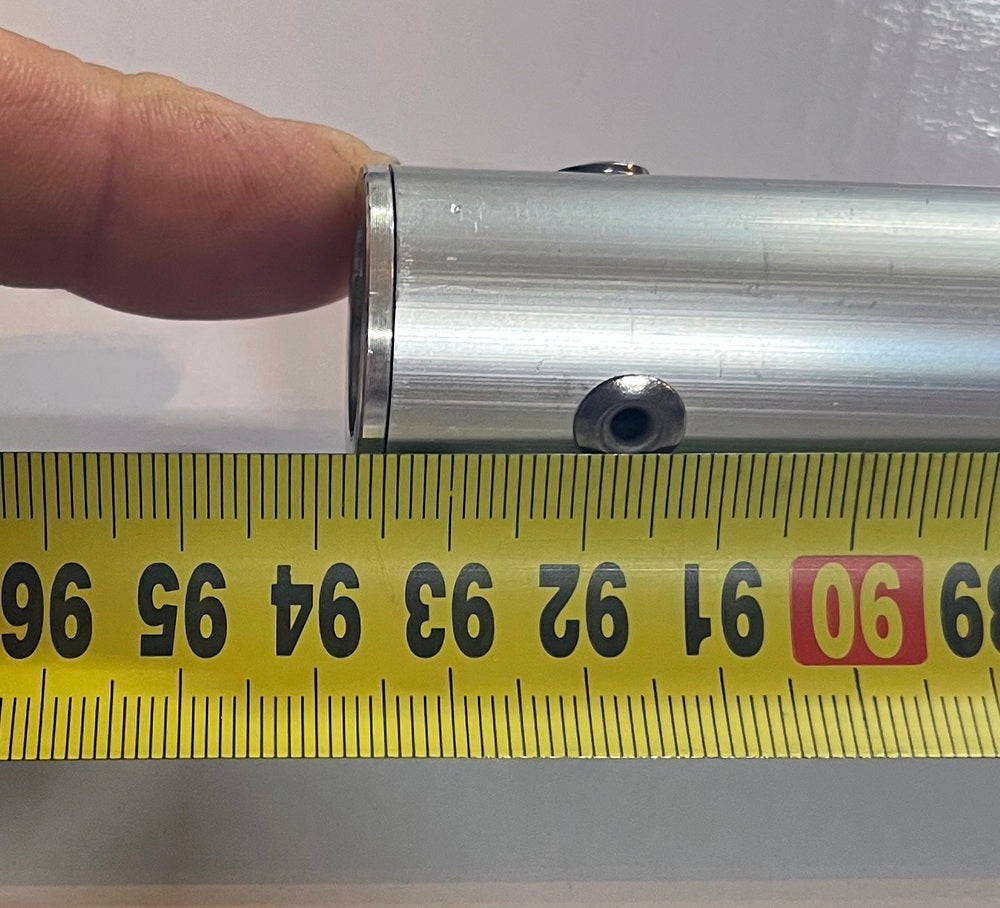

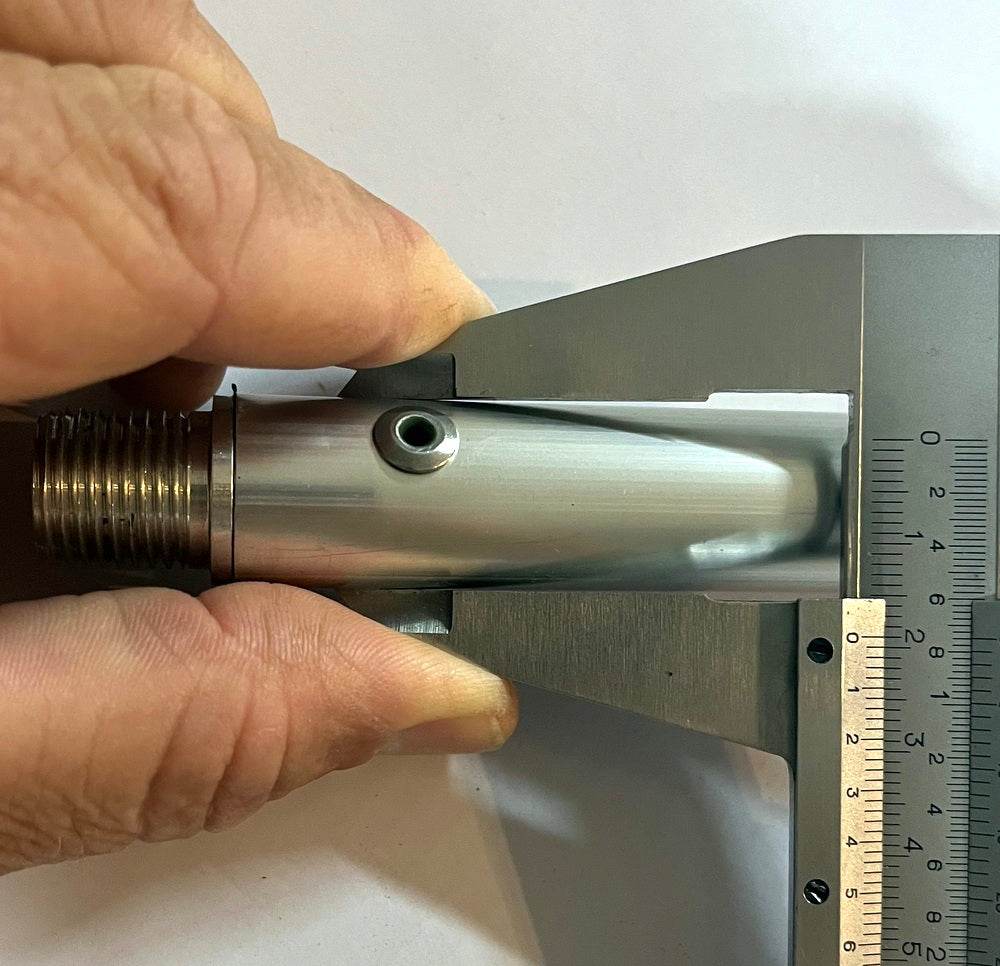

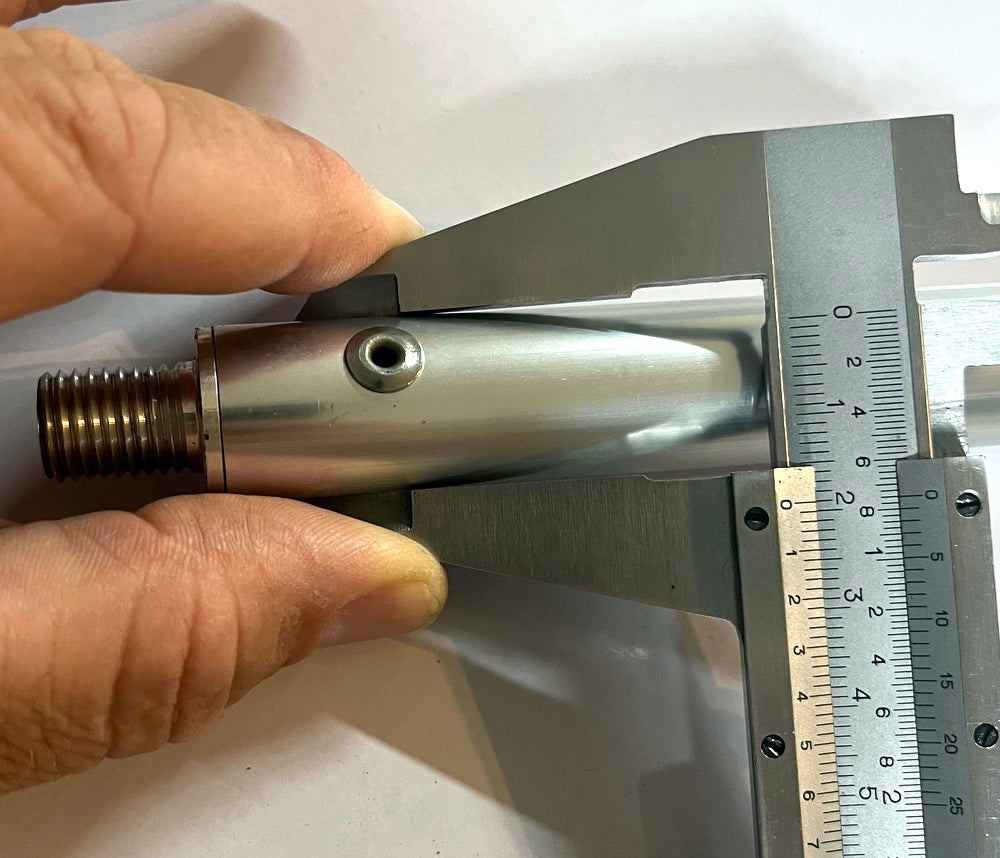

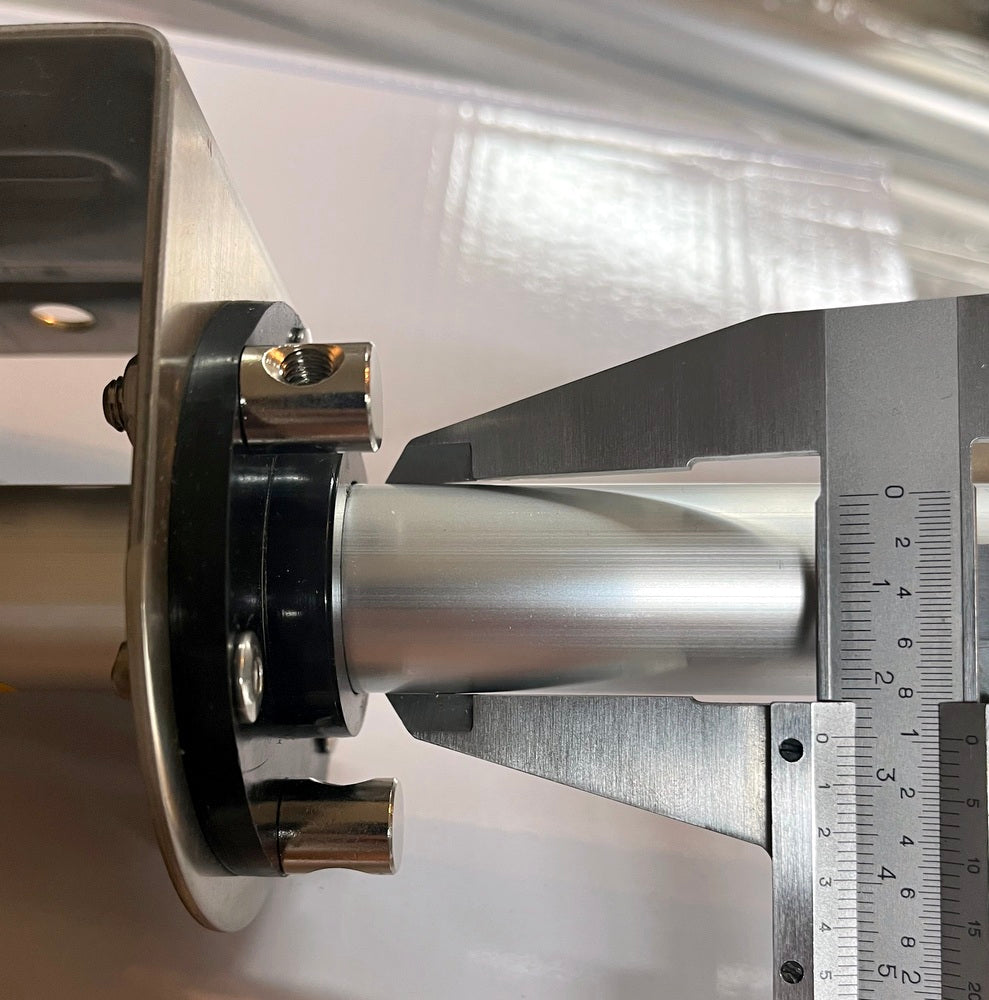

  • Base Section 1020mm Long, Including S0239 Connector - 25mm diameter
  • 2nd Section 940mm Long 25mm diameter
  • 3rd Section 950mm Long, 19mm diameter
  • 4th Section 950mm Long, 19mm diameter
  • 5th Section 950mm Long, 12mm diameter
  • 6th Section 960mm Long, - 12mm diameter
  • = 5.77 Metre's




Actual product can look slightly different or different colours to photos and pictures but will still be the same arrangement

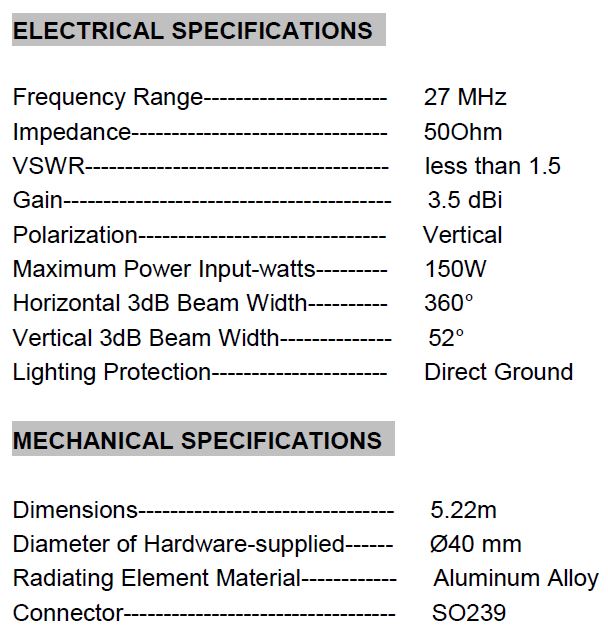

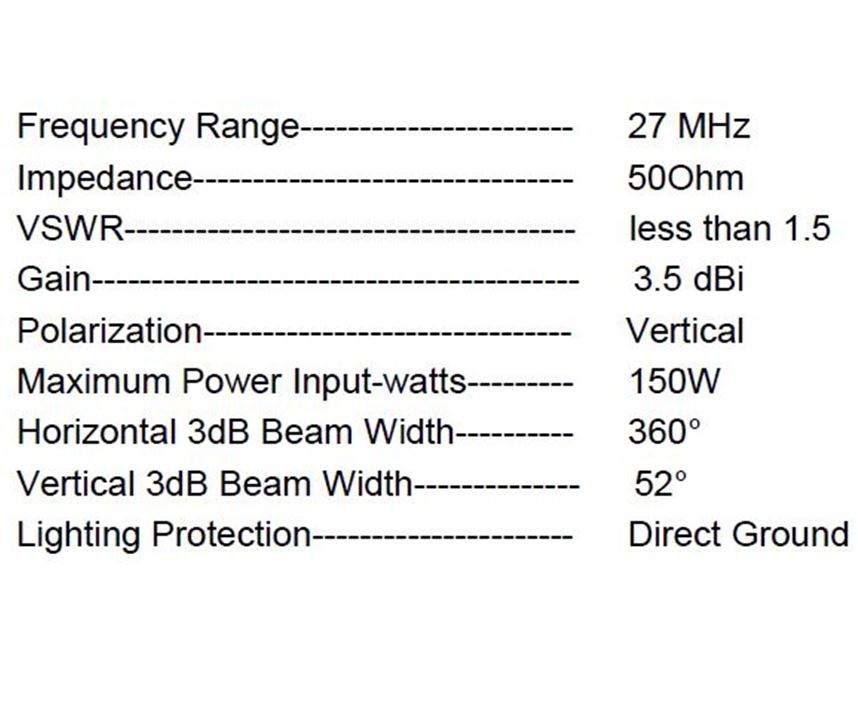

Max 150Watts - 3.5dBi

Price is for 1 x Item

Approx Package size:- 120cm x 20 x 20

Approx Package weight:- 4kg

Approx Product weight:- 3kg
