C-Cables
25mm "Black in Colour" Power Cable "Double Insulated" - Sold Per Metre
25mm "Black in Colour" Power Cable "Double Insulated" - Sold Per Metre
Couldn't load pickup availability
As per photos
25mm "Red in Colour" Power Cable "Double Insulated"- Power Wire
Sold and priced Per Metre, With a maximum single length of 30 Metre's
(We can supply in 100Mtr rolls if required please email so we can check our stock levels)
example:- if you wish to purchase 3 meters please select Quantity of 3
Our website is only set to a maximum of 5 Meter Length due to cost, size and weight of our high quality copper wire, Please note this is heavy in weight. If you what more or a full roll please ask for a shipping quote.

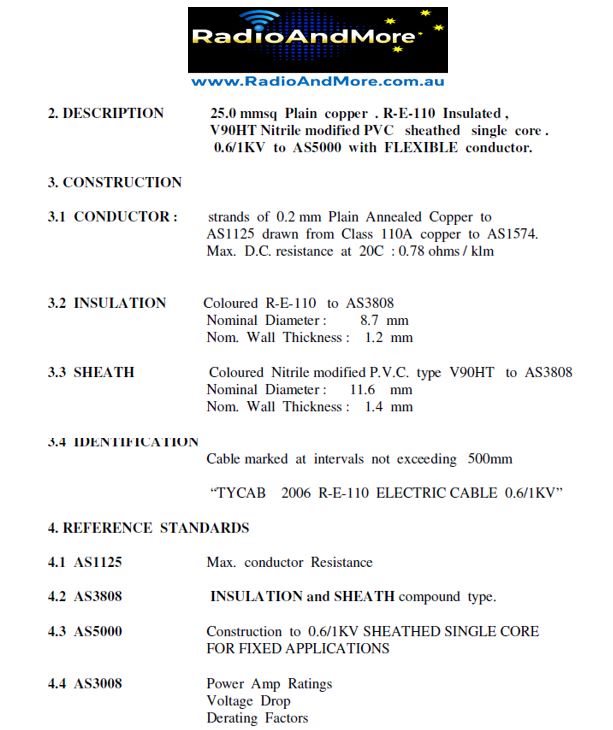

25.0 mmsq Plain copper. R-E-110 Insulated, V90HT Nitrile modified PVC sheathed single core.
0.6/1KV to AS5000 with a FLEXIBLE conductor.
Construction
Conductor: strands of 0.2 mm Plain Annealed Copper to AS1125 drawn from Class 110A copper to AS1574.
Max. D.C. resistance at 20C : 0.78 ohms / klm.
Insulation: Coloured R-E-110 to AS3808.
Nominal Diameter: 8.7 mm.
Nom. Wall Thickness: 1.2 mm.
Sheath: Coloured Nitrile modified P.V.C. type V90HT to AS3808.
Nominal Diameter: 11.6 mm.
Nom. Wall Thickness: 1.4 mm.
Identification: Cable marked at intervals not exceeding 500mm – “TYCAB 2006 R-E-110 ELECTRIC CABLE 0.6/1KV”
Amp rating @ 30°C: 125
Electrical characteristics
Voltage Drop Single Phase: 1.99
Voltage Drop Three Phase: 1.72
Reference Standards:
AS1125 Max. conductor Resistance
AS3808 INSULATION and sheath compound type.
AS5000 Construction to 0.6/1KV sheathed single core for fixed applications
AS3008 Power Amp Ratings, Voltage Drop, Derating Factors.
